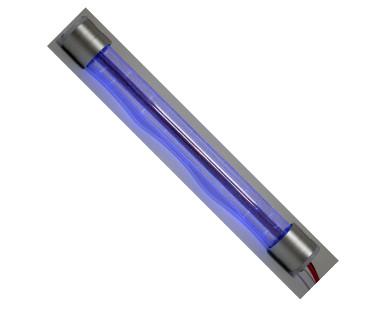

Excimer Lamp UV Lights 222nm Hospital School Public Disinfection UVC

Categories 222nm UV Lamp
Brand Name: UV,Yoway
Model Number: NBUVX01
Certification: CE, ROHS
Place of Origin: Zhejiang, China
MOQ: 1
Price: 800usd per pcs
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Delivery Time: 5-8 working days
Packaging Details: paper packing, or as required
name: NBUVX01
Size: φ 28*L128mm
Ballast: DC24V
wattage: 30w
type: Running water inside
application: public disinfection
customize: OEM
use: kill virus
nm: 222
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Excimer Lamp UV Lights 222nm Hospital School Public Disinfection UVC

Product Description

FEATURES & BENEFITS

• Mercury Free - Environmental Friendly • Large Production Capacity • Effective Germicidal Wavelength of 222nm • Effective Reduction of Viruses, Bacteria and Spores • Wide Operating Temperature • Instantaneous On/Off at Full Output Power • No Lifetime Reduction by Frequent On/Off Cycles • Proprietary Safety Filter Available to Ensure Narrowband 222nm Emission
- specification -
Model:XP-222NM-320D-40W
Size:240mm*37mm*37mm
Tube Diameter31mm
Input Voltage:AC230V/120V
Rated Power:30W
Lamp Current:181mA
Working Lifespan:≥10000H
Wavelength:222nm(far uvc)
Warranty:1 Year
Working Temperature:0-40℃
Matched Ballast:XPES-222nm-30W
3. There is no internal electrode inherent which is in the traditional light source, which avoids the contact between the
electrode and the plasma, the corrosion and sputtering of the electrode, and the service life is greatly extended;
4. It can be turned on and off instantly at any time, without preheating, the number of switches does not affect the service
life, and the number of switches is large;
5. Turning on and running are not affected by the ambient temperature, and the light output is relatively more stable;
6. Cold light source, no infrared output, no obvious heating effect on the processed object;
7. Compact size, can be larger according to the power of the adaptable power supply, and strong air cooling or water cooling is required for higher power;
8. The 222nm excimer ultraviolet lamp is preferably adapted to a pulsed power supply. Without any protective measures, the ozone output of the naked lamp is almost zero after the ignition point is stable;
9. Pay attention to ultraviolet rays hurting people, do not irradiate humans or animals!

222 nm wavelength excimer lamp application field
1. Inactivate viruses, bacteria, and microorganisms. Used for sterilization and disinfection in the fields of drinking water or sewage water treatment and air purification;
2. Photochemical reaction. Used to prepare electronic thin films and synthesize nanomaterials;
3. Surface modification of textiles. Used to increase the air permeability and moisture absorption of the fabric surface;
4. Photolyze hydrogen peroxide to produce strong oxidizing OH free radicals;
5. The cold UV printing light drying and curing in the printing process is especially suitable
COEXISTENCE WITH HUMAN BEINGS
NO HARMS TO HUMAN'S SKIN AND EYES !
Product Description
COEXISTENCE WITH HUMAN BEINGS
NO HARMS TO HUMAN'S SKIN AND EYES !
Detailed Images
Product detail drawing
产品细节图 +产品细节介绍
1. Green and environmental protection. There is no need to use mercury in manufacturing, no secondary pollution and waste recycling problems;
2. The monochromaticity is good, there is no stable ground state, and there is no self-absorption in the ground state. The power density of the lamp can be made large, the ultraviolet output energy is concentrated, and the local ultraviolet output intensity is high;
3. There is no internal electrode inherent which is in the traditional light source, which avoids the contact between the electrode and the plasma, the corrosion and sputtering of the electrode, and the service life is greatly extended;
Product Presentation

Product introduction: application, function, style, etc

The following configuration is a product diagram + table with the specific parameters of the configuration product

Product Name
222nm UVC Lamp
Material
Quartz tube / Metal net
Power
50w
Voltage
110v/220v
Type of Lamp-house
Customized
Model
E222UV50W44-200
Style
Straight
Service Life
18000 hours
Disinfection rate
99.99%
  • Size introduction and size picture
