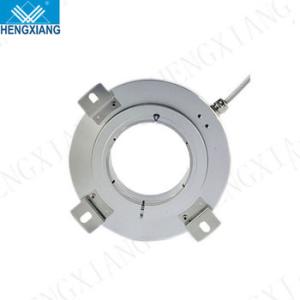

Name: Hollow Shaft Electronic Encoder Elevator Spare Parts 80000 Ppr Shaft Up To 82mm K158
Brand: HENGXIANG
Price: 1 USD

Home > Elevator Parts >

Hollow Shaft Electronic Encoder Elevator Spare Parts 80000 Ppr Shaft Up To 82mm K158

Categories	High Resolution Rotary Encoder
Brand Name:	HENGXIANG
Model Number:	large aperture rotary encoder position measuring‎ through hole 75mm K158-T6C2048BQ75 for elevator
Certification:	CE,ISO9001
Place of Origin:	Shanghai,China
MOQ:	1pcs encoder to start order
Price:	negotiable
Payment Terms:	D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability:	100K pieces per year
Delivery Time:	3-5 working days for sample order, 7-15 working days for mass order
Packaging Details:	each 1 piece was packed into single carton box
Product name:	large aperture rotary encoder position measuring‎ through hole 75mm K158-T6C2048BQ75 for elevator
External diameter:	158mm
GND:	not connect to encoder
Installation dimension:	R85mm(spring plate 158T170)
Resolution :	1024;2048;20000;40000;80000
Supply voltage:	DC5V ; DC8-30V
Top response frequency:	300KHZ
Consumption current:	100mA MAX

Contact Now

Add to Cart

Company Info.

Shanghai Hengxiang Optical Electronic Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Hollow Shaft Electronic Encoder Elevator Spare Parts 80000 Ppr Shaft Up To 82mm K158

Hollow shaft electronic encoder elevator spare parts 80000 ppr shaft up to 82mm K158

1. Feature: Large shaft, sturdy and durable, various output mode available.

2. Application: Automation control like CNC machine, motor, industrial line equipment.

3. External dimensions: External dia 158mm, thickness 43mm, shaft max 82mm.

4. Resolution: Up to 80000 ppr

5. Supply voltage: DC5V; DC8-30V

6. Protection grade: IP50

Product Paramenters

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental encoder
External diameter	158mm
Thickness	43mm
Installation dimension	R85mm(spring plate 158T170)
Hollow shaft type	through hole (clamping ring at prior)
Hollow shaft diameter	70mm,75mm,78mm;80mm;82mm
Resolution	1024;2048;20000;40000;80000
Output phase	Phase A+,B+,Z+,A-,B-,Z-
Supply voltage	DC5V ; DC8-30V
Outlettype	Cable out from side
Output mode	Push-pull output
	line drive (26LS31) TTL
	line drive(DC8-30V) HTL
Consumption current	100mA MAX
Top response frenquency	300KHZ
Insulation resistance	10MΩ
GND	not connect to encoder
starting torque	less than 400 x 10-3 N.m
Intertia moment	less than 350x 10-6kg.m2
Shaft load	Radial 90N; Axial 60N
Top REV	3000RPM
Environmental temperature	Operating:-20 ～+80°；storage:-25 ～+85°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Sock(endure)	1960m/s2 (200g),11 ms three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	aluminium alloy
Cable length	1000mm(cable with shielding)
Protection grade	IP50
Cable length	1M (cable length could be added appropriately by
	require, but it need payment individually)
Certification	CE
package	Carton box
Net weight	About 1800g (with package)
Net weight	About 1700g (with package)

Cable length	1M (cable length could be added appropriately by
	require, but it need payment individually)
Certification	CE
package	Carton box
Net weight	About 670g (with package)

Model Selection Guide

Model Number of K158 encoder for reference

K158-T4E1024BQ70

K158-T6C2048 BQ75

K158-T4E20000 BQ78

K158-T6C40000 BQ80

K158-T4E80000 BQ82

K158-T6C1024 BQ70

K158-T4E2048 BQ75

K158-T6C20000 BQ78

K158-T4E40000 BQ80

K158-T6C80000 BQ82

Manufacturing Dimensions

Product Usage

About Factory

ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai,
an international city of China, set up in 2001, is a professional
manufacturing high-tech corporation, providesresearch and
manufacturing ,entityintegrating optical,mechanical and electronic
design. Now we have finished primary pipelining of encoder
manufacture. After development for many years, rotary encoders now
have 10 series and over 100 sorts, both popularly sale around the
world. Our rotary encoders are widely used for automation field,
such as, Office equipment ,Water conservancy equipment,Electrical
equipment,Textile machinery,Carpentrymachinery,Injection
machinery,Vulcanizateequipment ,Medical device,CNC
machine,Metallurgical machine,Printing machinery,testing
machine,Elevator,Servo motor,Packing machine, etc. , and has won
trust and high reputation from clients . "HengXiang" brand encoder,
has ISO9001:2000 Quality Management System Certificate and CE
Certification, moreover, we have own invention patents five and
utility model patents five, also passed Shanghai New and High-tech
AchievementsTransformation Project. Our target:Meeting Client's
Requirement,Creating Social value,serving clients attentively and
Achieving win-win. Sincerely welcome all customers to visit our
company, to review and custom "HengXiang" brand products .

FAQ

Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check
freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and
parameters, you could contact us for technical support if you have
any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your
doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western
Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the
latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order.
Such as installation dimensions, resolutions, circuit signal,power
supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to
contact us for more assistant.
