Captive Linear Stepper Motor

20 PM Linear Stepper Motor 20mm Fixed Shaft Lead Screw Stepping Motor 5V DC Captive Shaft Linear Actuator Lead Screw

20 PM linear stepper motor 20mm Fixed shaft lead screw stepping motor

VSM20-32 captive shaft liner stepper motor,Captive type is a Stepper motor whit a lead screw, when rotor running CW or CCW,the lead screw will go forword or backword. at the same time ,the lead will rotating.

captive shaft: the running mode is up and down running thrust, (the top screw of the motor is used to fix your structure, and can also be customized for other installation methods)
Motor step angle is 7.5 degrees (can also be 15 degrees)
For example:
motor stepper step angle is 7.5 degree, lead pitch is 0.6096mm, when motor stepper rotate one step, the lead moves 0.0127mm for each step of the stepping motor (of course, when you choose different lead pitch and step angle, we can recommend it according to your usage needs

This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc. according to customer requirements.
The output part is linear.

Stepper motor parameter data sheet

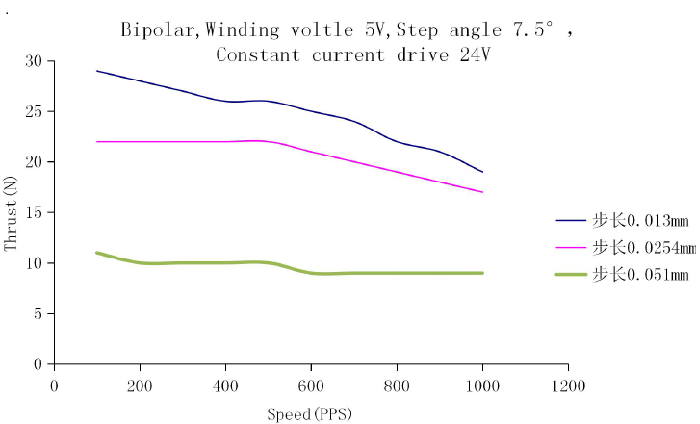

Motor thrust force curve:

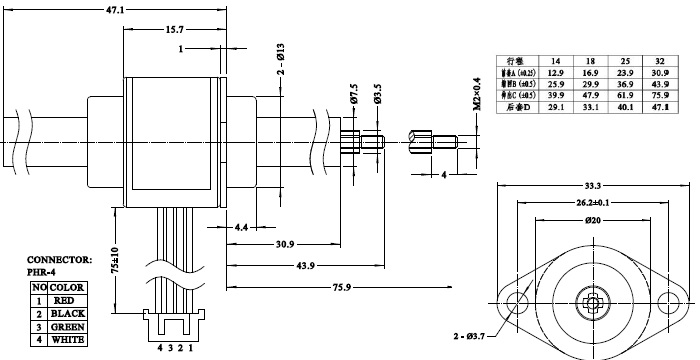

Motor out drawing:

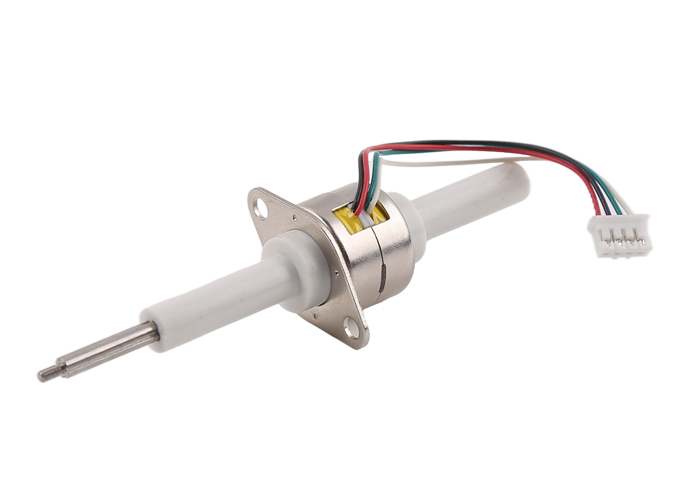

Product display:

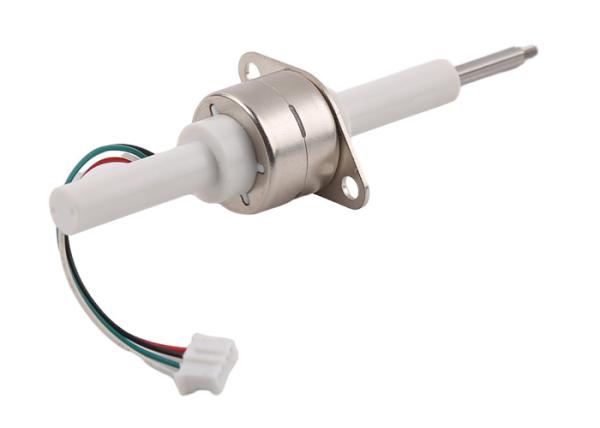

5V DC captive shaft linear actuator lead screw

Our team has more than 10 years of stepper motor design, development and production manufature experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

Changzhou Vic-Tech Motor Techology Ltd. is a professional manufacturers and scientific research institution, dedicated in brushless motor development, motor application overall solutions, and motor processing and manufacturing. Our company is located in ‘City of Chinese Micro Motor’ Changzhou, Jiangsu Province. With beautiful scenery and convenient traffic, only 1 km away from expressway, 2 km away from railway station, 15 km away from airport. Changzhou is between two cosmopolises, Shanghai and Nanjing, only 100km away from both cities. Convenient logistics and timely information provide conditions for our high efficient and satisfying service. Our company has experience of researching and developing motor over sereval decades, and we have our own developing team with experienced professional engineers and electric experts. With capacity to design new products, provide ralted solutions based on customers’ specific requirements (including mechanical structure, drive control, motor parameters etc.) At the same time, we have 4 manufacturer in Shenzhen, Changzhou and Dongguan to produce stepper motors, permanent-magnet motors, micro motors, and DC motors, and all of them have passed ISO9001:2008 international quality system authentication. We have enough capability for your big orders.

Packaging and Shipping Information:

Packing: single carton/box packing, sample packing box size: 28*17*16cm
Packaging according to quantity
Shipping time:
DHL: 5~7 working days;
UPS: 5~7 working days;
TNT: 5~7 working days;
FedEx: 7~9 working days;
EMS: 12~15 working days;
China Post: Depends on which country it is sent to;
Sea: depends on which country the ship goes to

Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products

The company is located in the Yangtze River Delta Economic Belt, one of the most economically developed regions in China, and is located in Changzhou City, Jiangsu Province, with a beautiful environment. The company is 20 kilometers away from Changzhou Airport, 5 kilometers away from the high-speed railway station, and 1 kilometers away from the high-speed intersection. And Shanghai and Nanjing are about 120 kilometers away. The transportation is very convenient, domestic and international logistics and transportation are very developed and convenient!

The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.

The company has a quality management system: ISO9001-2000, and continuously improves the management level and quality control ability through various methods. Relevant personnel often receive internal and external professional training and training, so as to achieve continuous improvement in ability.

The company has a variety of series of products, each series has a complete product system, and has its own exclusive patented products. At the same time, related products and solutions can be customized for customers. At present, the most standardized and perfect product series are:

1. PM type stepping motor series, the motor diameter is 6 8 10 15 20mm, this series of motors can be equipped with a reduction box, and can be used to make a screw bracket type slider motor.

2. Hybrid stepper motor series, the size of the motor base is 14 20 28 35 42 57 86mm, etc. At the same time, it can be equipped with different sizes and speed ratio reduction boxes, and can be equipped with different types and lead screws. Motors can be equipped with encoders to improve control accuracy.

3. There are 8*10 10*12 12*13 1024 horizontal miniature reduction gearboxes for miniature metal gearboxes. All series of products with speed ratios from 2 to 1000 have been standardized and produced in batches.

4. BYJ series motors, standard products such as diameter 20 24 28 35mm can be produced.

5. Linear motor series, three series with diameters of 20, 25, and 36mm are all mass-produced, which can match fixed shaft types, through shaft types and screw external drive types. There are different screw outer diameters, tooth pitches, etc. different needs.

The company has a wide range of products and has the ability to customize. The company has in-house tooling and fixture making equipment, fast proofing speed, high reliability of product quality and reasonable price. Welcome new and old customers, friends at home and abroad for consultation, proofing and cooperation
