18 degrees Step angle 5V DC Micro Stepper Motor 10mm 2 Phase Linear Screw Stepper Motor

5V DC Micro Stepper Motor 10mm Linear Screw Stepper Motor Manufacturer Supply

SM10-56.5L is a precision linear stepping motor, which has been used in medical equipment, printers, scanners, automotive instruments, security systems, electronic locks, etc.
Mini body, 3N thrust, 56.5mm stroke, 0.067mm displacement per step, and can be completed in as little as 1 second.
The input part of the motor is a connecting wire, but it can be changed into the form of connecting wire needle, FPC, etc. according to customer needs.
The length of the lead screw of the motor can be customized according to customer needs

10mm micro stepper motor parameter sheet:

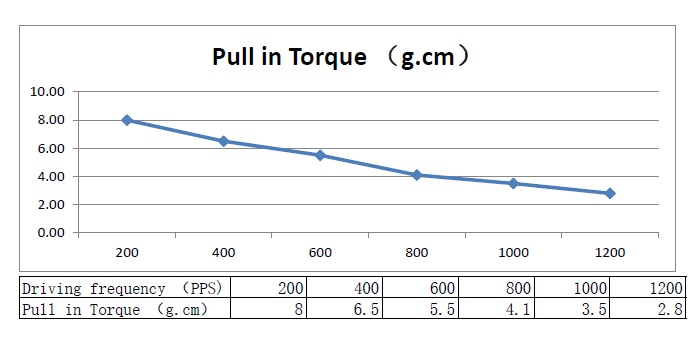

10mm micro stepper motor torque curve:

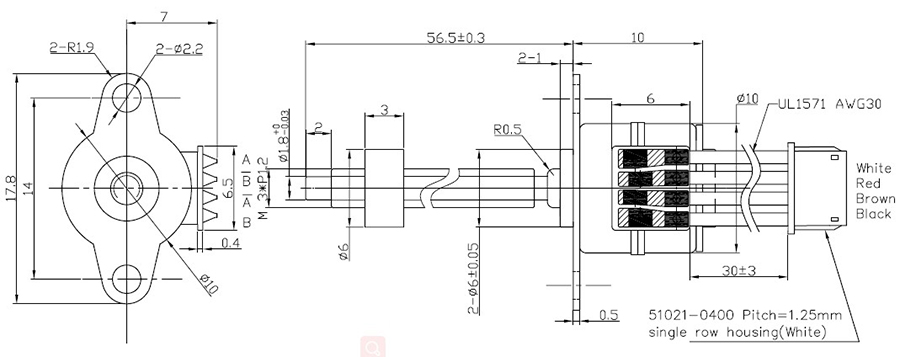

10mm micro stepper motor outside drawing:

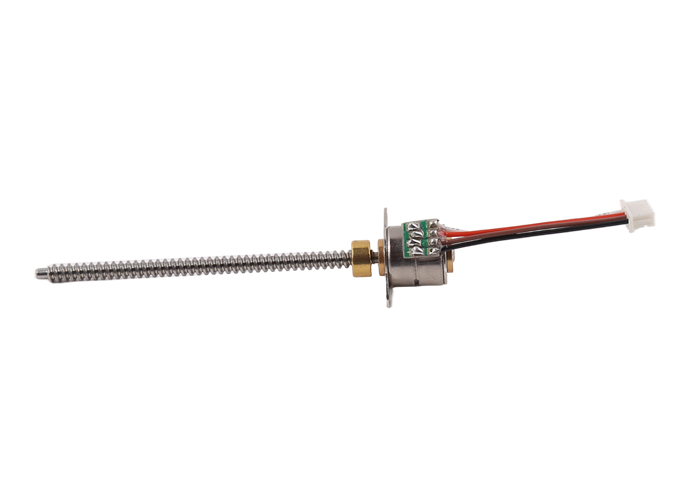

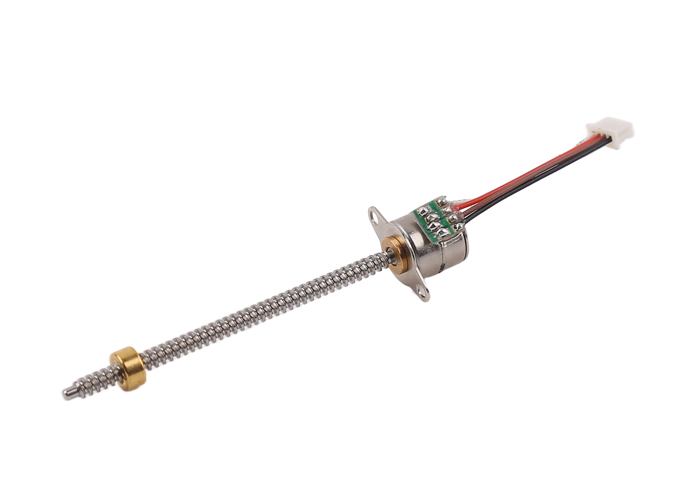

Product display:

10BY micro 5v 10mm diameter mini stepper motor PM stepping motor

Service and Customization:

This motor is mainly used in cameras, lenses, optical instruments and other fields, with small size and precise control. Customers can customize motor resistance, installation size, outlet shape and size. For special occasions, the planetary gearbox can be matched with the motor to obtain high torque at low speed.
The needs of customers are the direction we should strive for, and meeting the needs of customers is our highest pursuit. Please keep in touch with us.

Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products

The company is located in the Yangtze River Delta Economic Belt, one of the most economically developed regions in China, and is located in Changzhou City, Jiangsu Province, with a beautiful environment. The company is 20 kilometers away from Changzhou Airport, 5 kilometers away from the high-speed railway station, and 1 kilometers away from the high-speed intersection. And Shanghai and Nanjing are about 120 kilometers away. The transportation is very convenient, domestic and international logistics and transportation are very developed and convenient!

The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.

The company has a quality management system: ISO9001-2000, and continuously improves the management level and quality control ability through various methods. Relevant personnel often receive internal and external professional training and training, so as to achieve continuous improvement in ability.

The company has a variety of series of products, each series has a complete product system, and has its own exclusive patented products. At the same time, related products and solutions can be customized for customers. At present, the most standardized and perfect product series are:

1. PM type stepping motor series, the motor diameter is 6 8 10 15 20mm, this series of motors can be equipped with a reduction box, and can be used to make a screw bracket type slider motor.

2. Hybrid stepper motor series, the size of the motor base is 14 20 28 35 42 57 86mm, etc. At the same time, it can be equipped with different sizes and speed ratio reduction boxes, and can be equipped with different types and lead screws. Motors can be equipped with encoders to improve control accuracy.

3. There are 8*10 10*12 12*13 1024 horizontal miniature reduction gearboxes for miniature metal gearboxes. All series of products with speed ratios from 2 to 1000 have been standardized and produced in batches.

4. BYJ series motors, standard products such as diameter 20 24 28 35mm can be produced.

5. Linear motor series, three series with diameters of 20, 25, and 36mm are all mass-produced, which can match fixed shaft types, through shaft types and screw external drive types. There are different screw outer diameters, tooth pitches, etc. different needs.

The company has a wide range of products and has the ability to customize. The company has in-house tooling and fixture making equipment, fast proofing speed, high reliability of product quality and reasonable price. Welcome new and old customers, friends at home and abroad for consultation, proofing and cooperation
