Name: Coal Mine Hydraulic Test Benches 1000rMin Universal Hydraulic Test Bench
Brand: HIGHLAND
Price: 30000 USD

Home > Mining Machinery >

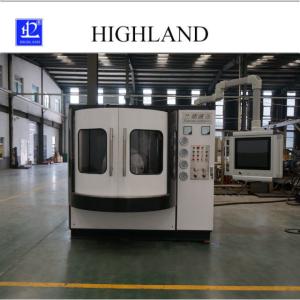

Coal Mine Hydraulic Test Benches 1000r/Min Universal Hydraulic Test Bench

Categories	Hydraulic Test Benches
Brand Name:	HIGHLAND
Model Number:	YST380
Certification:	CE
Place of Origin:	China Dezhou
MOQ:	1 set
Price:	USD 30000-86800/set
Payment Terms:	T/T, Western Union
Supply Ability:	1 sets per month
Delivery Time:	30-60 work days
Packaging Details:	Plastic film packaging
Power:	160 kw
Flow rate:	380 L/min
Pressure:	35mpa
Loading mode:	Local loading mode
Cooling mode:	Water cooling
Warranty:	1 year
Motive force:	Electromotor
Medium:	Hydraulic oil
Display data:	Computer display or digital display
Poduct name:	Patented products of coal mine hydraulic test benches

Contact Now

Add to Cart

Company Info.

Shandong Highland Hydraulic Seiko Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Coal Mine Hydraulic Test Benches 1000r/Min Universal Hydraulic Test Bench

Patented products of coal mine hydraulic test benches

Introduction

The main business of highland hydraulic pump Co., Ltd. is to design and manufacture all kinds of hydraulic test stands, all kinds of hydraulic stations, hydraulic systems, and the development, design and manufacture of special mechanical equipment for electromechanical hydraulic pneumatic integration Xinou company has long focused on the research and application of hydraulic technology, especially in the test, inspection and maintenance of hydraulic components, and has accumulated rich experience. The hydraulic pump test bench, hydraulic motor test bench, hydraulic valve test bench, oil cylinder test bench and hydraulic comprehensive test bench produced by it are at the domestic leading level, and are widely used in the production and maintenance industry of hydraulic components, hydraulic equipment and construction machinery, The company's customers are all over the country and Southeast Asia, and have been widely praised. Highland hydraulic pump Co., Ltd. is a complete solution manufacturer of hydraulic pump motor valve maintenance and testing equipment!

Hydraulic Test Benches

Technical parameter

Hydraulic Test Benches Machine Technical parameter
Pressure(mpa)	35mpa / 42mpa
Flow rate(L/min)	380L/min / 450L/min / 500L/min
Power(KW)	75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw
Power Drive Mode	Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery
Speed Range	1000r/min / 0-1500r/min / 0-2500r/min
Load location	Liquid control loading / Proportional loading
Show location	Locale/ Computer (long-distance)
Working Medium	Hydraulic oil
Composition	Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts
Applicable area	Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields.

test bench hydraulic pump

Hydraulic Test Benches Main Model

● YST-300 Hydraulic Motor Test Tench

● YST-300 Digit Hydraulic Test Bench

●YST-380 Hydraulic Pump Test Tench

● YST-380 Adjustable Hydraulic Comprehensive Test Bench

● YST-380 Digit Hydraulic Comprehensive Test Bench

● YST-500 Hydraulic Comprehensive Test Bench

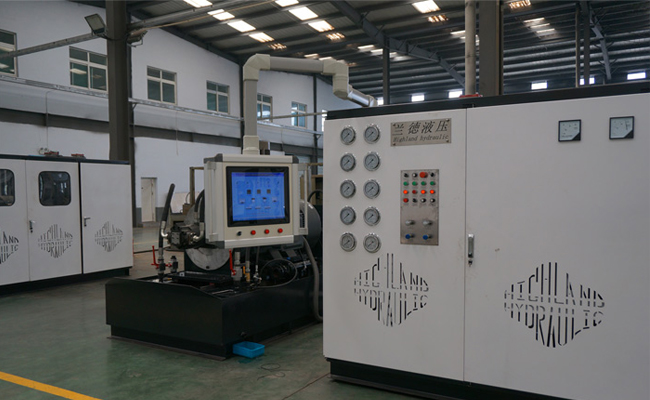

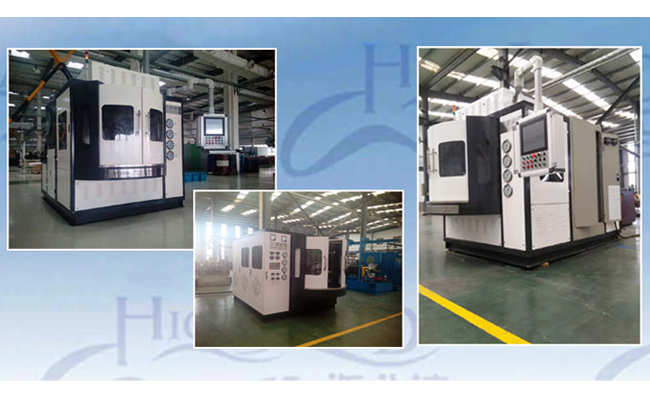

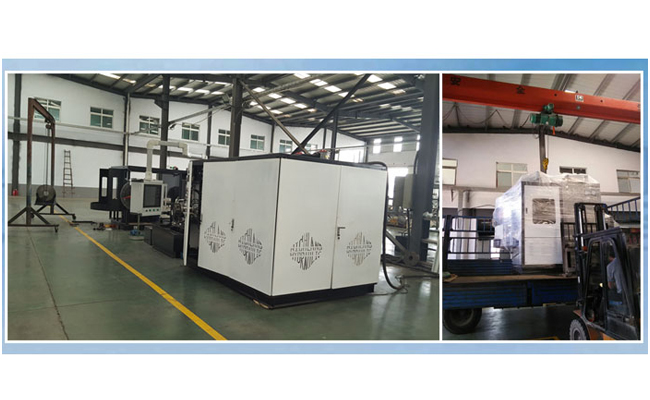

Pictures show

universal hydraulic test bench

Tag: Hydraulic Test Benches,test bench hydraulic pump,universal hydraulic test bench
