| Categories | Universal Testing Machine |
|---|---|
| Brand Name: | GSKA |
| Model Number: | Universal furniture testing machine |
| Certification: | CE |
| Place of Origin: | Dongguan China |
| MOQ: | Negotiate |
| Price: | Negotiate |
| Supply Ability: | 100 Set / Sets per Month |
| Delivery Time: | 10-60days after confirmed payment or by contract stipulation |
| Packaging Details: | Export package |
| Setting:: | Setting: |
| Brand: | GSKA |
| Data storage:: | RAM and U disc |
| Specification: | UL, CE, ISO9001, CCC, RoHS |
| Motion control:: | PLC control |
| Load force solution:: | 1/10000 |
| System test force accuracy: | ±1%(static) ; ±5% (dynamic) |
| Power:: | AC 220V 50Hz 5A, 3KW |

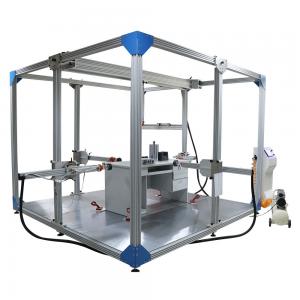

Touch Screen Control Mechanical Testing Of Furniture Universal Testing Machine
Brief introduction:
The Furniture Universal Testing Machine is suitable for Chair , Desk And Bed Mechanical Testing,
Strength Durability Tester for chest desk and bed is used to test the strength and durability of each part of furniture through each part of furniture is under one-off or repetitive load in the normal use or wrong use condition.It is used for testing the mechanical performance of all kinds of desk chest and bed.
This tester can be used for doing the horizontal static loading test and also can do horizontal durability test.
Technical parameters:
| Loading cylinder: | Four diameter:50mm,route:300mm, |
| Loading force : | 0-1500Nþ (adjustable) |
| Force value induction: | high-precision power sensor Capacity:3KNþ |
| Load force solution: | 1/10000 |
| System test force accuracy: | ±1%(static) ; ±5% (dynamic) |
| Test speed: | 10~30 cycles per minute, 1-5 test cycles per 10 second (adjustable) |
| Loading cycle: | 0~999999 adjustable |
| Control method: | Microcomputer automatism servo control, Touch screen control |
| Loading method: | Pneumatic linear actuator |
| Specimen test station: | 5 |
| Test independence: | Independent control by each work station |
| Setting: | Computer software setting |
| Data storage: | RAM and U disc |
| Loading power: | Motor |
| Motion control: | PLC control |
| Dimension | 2.5x2.5x2m,(L×W×H) it is made of 80x80mm aluminum |
| Air source: | Air supply input is 0.4Mpa-0.8Mpa. (7kgf/cm^2 or above, supplied by customer themselves) |
| Power: | 1∮AC 220V 50Hz 5A, 3KW |
Standards: | BS EN 581-3,EN 747 5.4.5/5.5 ,GB/T10357.1 GB/T10357.4 GB/T10357.5 GB/T10357.6 GB/T10357.7 |
Accessories: | Seat loading pad 1 set; back loading pad 1set; Stationary fixture 1
set. |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
|
