| Categories | Vertical CNC Machine |
|---|---|
| Brand Name: | Bodsee |
| Model Number: | CNC-950GM |
| Place of Origin: | China |
| MOQ: | 1SET |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30set/month |
| Delivery Time: | Negotiation |
| Packaging Details: | Wooden Package |
| The maximum load capacity: | 400KG |
| Triaxial screw size: | 40/12mm |
| Positioning accuracy: | 0.01mm |
| Taper of spindle hole: | BT40 |
| Cooling box form: | Independent |
| Weight of machine: | 2250KG |

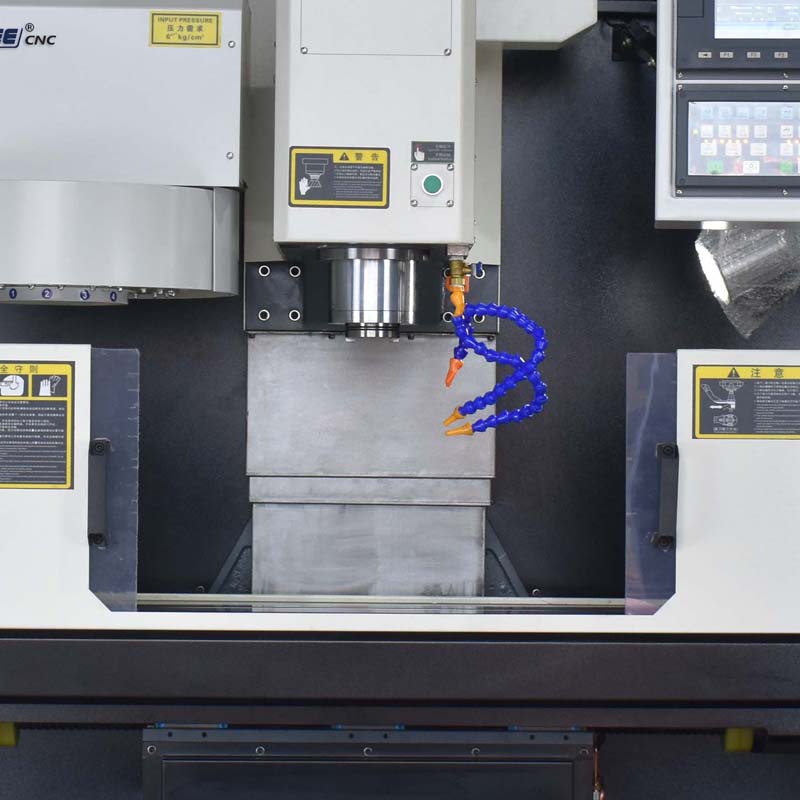

Industrial CNC Milling Machine Three Axis Fully Automatic Vertical CNC Machine BT40 Spindle
Product Description:
CNC-950GM CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools.
And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring, etc.
Product Specification:
| Model No. | CNC-950GM | |
| X axis travel | 900mm | |
| Y axis travel | 500mm | |
| Z axis travel | 500mm | |
| Distance from spindle nose to the work table | 120-620mm | |
| Distance from spindle center to column guideway | 580mm | |
| X rapid feed | 36m/min | |
| Y rapid feed | 36m/min | |
| Z rapid feed | 24m/min | |
| Cutting rapid feed | 8000mm/min | |
| The width of the triaxial linear guide | 35mm | |
| The number of the slider in the X axis | 6 pieces | |
| The number of the slider in the Y axis | 4 pieces | |
| The number of the slider in the Z axis | 4 pieces | |
| Triaxial screw size | 40/12mm | |
| Work table size | 1500x420mm | |
| The maximum load capacity | 400KG | |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm | |
| Spacing | 90mm | |
| Positioning accuracy | 0.01mm | |
| Repeat positioning accuracy | 0.008mm | |
| Spindle speed range | 20-8000rpm/min | |
| Feed axis motor power | 1.8/1.8/2.5KW | |
| Feed motor connection form | Direct Connection | |
| Taper of spindle hole | BT40 | |
| The spindle of output power | 5.5KW | |
| Cooling box form | Independent | |
| Tool Changer | Carousel tool changer | |
| Tool Capacity | 12pieces | |
| Dimension of machine tool | 1950/1700/2300mm | |
| Weight of machine | 2250KG | |
Product Features:
1. Made of high-density, high rigidity material, high strength and good wear resistance.
2. Standard automatic lubrication system to extend the service life of the guide rail.
3. BT40 spindle.
4. X, Y, Z three-axis have large travel, especially suitable for the parts machining.
5. Large travel: larger travels in all three directions than those of the same specifications in the market.
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Workpiece sample:
Our Exhibition:
FAQ:
1. Are you a manufacturer or a trader?
It depends on customers’ requirement and quantity.
|
