| Categories | Vertical CNC Machine |
|---|---|
| Brand Name: | Bodsee |
| Model Number: | CNC-940GM |
| Place of Origin: | China |
| MOQ: | 1SET |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30set/month |
| Delivery Time: | Negotiation |
| Packaging Details: | Wooden Package |
| Z axis travel: | 450mm |
| Distance from spindle nose to the work table: | 120mm |
| The width of the triaxial linear guide: | 35mm |
| The maximum load capacity: | 400KG |
| Main servo motor rated power: | 3.7kw |

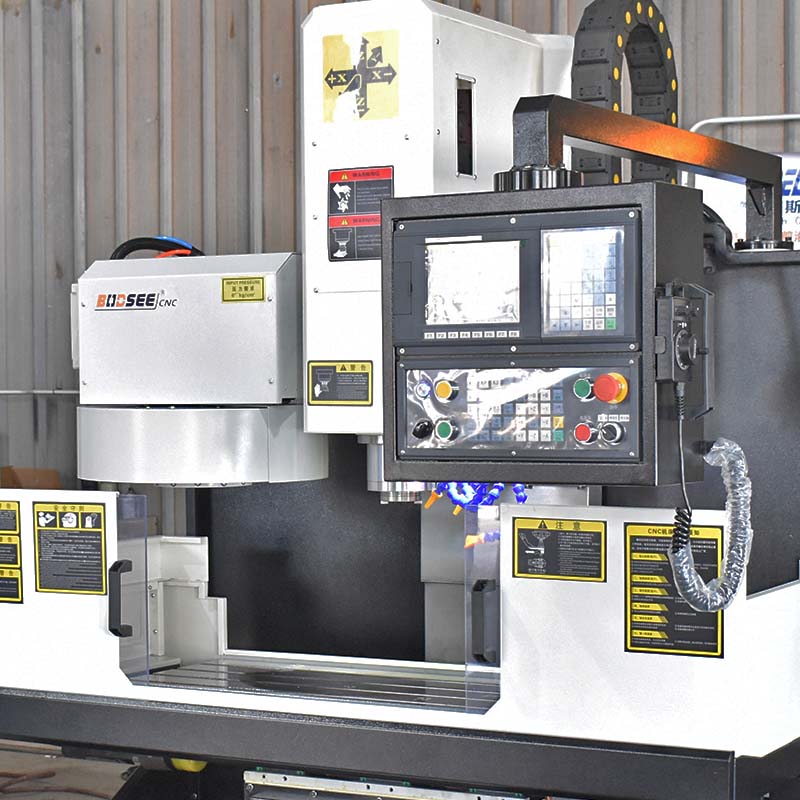

Heavy Cutting Has Strong Rigidity Cnc Machine Center 3 Axis Cnc Milling Machine Vertical CNC Machine
Product Features:
1. It has good thermal stability and stabilization precision.
2. The X/Y/Z axis adopts the linear guide-way structure, and the three-way line rail adopts the heavy pre-pressing process.
3. The machine tool circuit and CNC control part are highly integrated, which greatly reduces the failure rate, with neat wiring and reasonable structures. The electric cabinet is equipped with heat sink device.
Production Specification:
| Model No. | CNC-940GM | |
| X axis travel | 950mm | |
| Y axis travel | 380mm | |
| Z axis travel | 450mm | |
| Distance from spindle nose to the work table | 120mm | |
| Distance from spindle center to column guideway | 460mm | |
| X rapid feed | 36m/min | |
| Y rapid feed | 36m/min | |
| Z rapid feed | 24m/min | |
| X/Y axis feed motor rated power | 1.6/2.0kw | |
| X/Y axis feed motor rated output torque | 7.7-8.4Nm | |
| Z axis feed motor rated power | 2.6kw | |
| Z axis feed motor rated output torque | 10Nm | |
| Cutting rapid feed | 0-8000mm/min | |
| The width of the triaxial linear guide | 35mm | |
| The number of the slider in the X axis | 6 pieces | |
| The number of the slider in the Y axis | 4 pieces | |
| The number of the slider in the Z axis | 4 pieces | |
| Triaxial screw size | 40/12mm | |
| Work table size | 1500x420mm | |
| The maximum load capacity | 400KG | |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm | |
| Spacing | 90mm | |
| Positioning accuracy | 0.01mm | |
| Repeat positioning accuracy | 0.008mm | |
| Spindle speed range | 20-8000rpm/min | |
| Main servo motor rated power | 3.7kw | |
| Main servo motor 30 minute locked-rotor power | 5.5kw | |
| Main servo motor rated output torque | 24Nm | |
| Spindle sssembly dynamic balance mode | G1 | |
| Feed motor connection form | Direct connection | |
| Taper of spindle hole | BT40 | |
| Tool changer | Carousel tool changer | |
| Tool Capacity | 12piece | |
| Max tool diameter (Full) | Ф75mm | |
| Max tool weight | 7kg | |
| Max tool length | 300mm | |
| Cutting Tool Selection Mode | Forward and reverse arbitrary tool selection | |
| Machine tool electric gross capacity | 10KVA | |
| Power requirements | Customized | |
| Dimension of machine tool | 1950x1600x2000 mm | |
| Weight of machine | 1950KG | |
| Machine protection shield | Half Cover/Semi enclosed | |
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Workpiece Sample:
3. What's the MOQ?
MOQ is 1 set.
4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
Thank you for your precious time! For more information about the Machining Center, please feel free to contact me!
|
