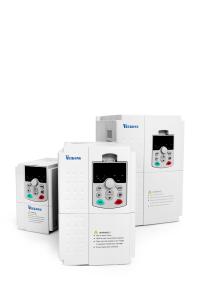

380V Three Phase In And 220V Single Phase Out Veikong VFD200A VFD Variable Frequency Drive

Categories VFD Variable Frequency Drive
Brand Name: VEIKONG
Model Number: VFD200A
Certification: CE IEC
Place of Origin: China
MOQ: 28 pcs
Price: negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15000 per/ month
Delivery Time: 3-8 working days
Packaging Details: paper carton under 45kw, starting from 45kw wooden case for packing
Color: white
Special: 380V three phase in and 200V single phase out
Product type: VFD VSD
Frequency range: 50 or 60HZ
warranty: 18 months
product: variable frequency inverters
Original: China
OEM: Support
MOQ: Negotiable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

380V Three Phase In And 220V Single Phase Out Veikong VFD200A VFD Variable Frequency Drive

380V Three Phase In And 220V Single Phase Out VFD Variable Frequency Drive


1. Veikong VFD200A series Technical Specification

ItemSpecification
Standard functionMaximum frequencyVector control:0-500hz VF control:0-500hz
Carrier frequency0.5khz-16khz(The carrier frequency is automatically adjusted based on the load features)
Input frequency resolution

Digital setting:0.01hz

Analog setting: maximum frequency x0.025%

Control mode

Sensor-less flux vector control(SFVC)

Closed-loop vector control(CLVC)(+PG card)

Voltage/Frequency (VF) control

Startup torque0.5hz/150%(SVC) 0HZ/180%(FVC)
Speed range1:100(SVC) 1:1000(FVC)
Speed stability accuracy+-0.5%(SVC) +-0.02%(FVC)
Torque control accuracy+-5%(FVC)
Overload capacity

G type:60s for 150% of the rated current, 3s for 180% of the rated current

P type:60s for 120% of the rated current. 3s for 150% of the rated current

Torque boost

Auto boost:

Manual boost: 0.1%-30%

VF curve

Straught line: VF curve

Multi point VF curve

N power VF curve(1.2power 1.4power 1.6power 1.8power square)

VF separation2 types: complete separation, half separation
Acceleration/ deceleration curve

straight line ramp

s curve ramp

four groups of acceleration/deceleration time with the range of 0s-65000s

DC braking

DC braking frequency 0HZ-maximum frequency

Braking time: 0-100s

Braking trigger current value:0%-100%

JOG control

JOG frequency range 0-50hz

JOG acceleration/deceleration time 0-6500s

Built in PLC, multiple speedsIt realizes up to 16 speeds via the simple PLC function or combination of DI terminal states
Built in PIDIt realizes closed loop control system easily
Auto voltage regulation(AVR)It can keep constant output voltage automaticaly when the main voltage fluctuation.
Overvoltage/ Over current stall controlThe current and voltage are limited automatically during the running process so as to avoid frequently tripping due to overvoltage/ over current
Rapid current limit functionIt can auto limit running current of frequency inverter to avoid frequently trpping
Torque limit and control

(Excavator characteristics) It can limit the torque automatically and prevent frequently over current tripping during the running process.

Torque control can be implemented in the VC mode.


2. Veikong Company introduction

Veikong is a high tech enterprise located in Shenzhen China and we are a professional VFD manufacturer in China for more than 20 years. Each year, Veikong would adopt 40% of the income to invest in our Rearch and Develop department to improve our product and upgrade the software to provide better quality products and nicer technical support for our clients.

Nowadays, we are helping our clients expand their maket step by step and help them establish a good business mode in their local market and then spread Veikong products to nearly all of the corner in the world.

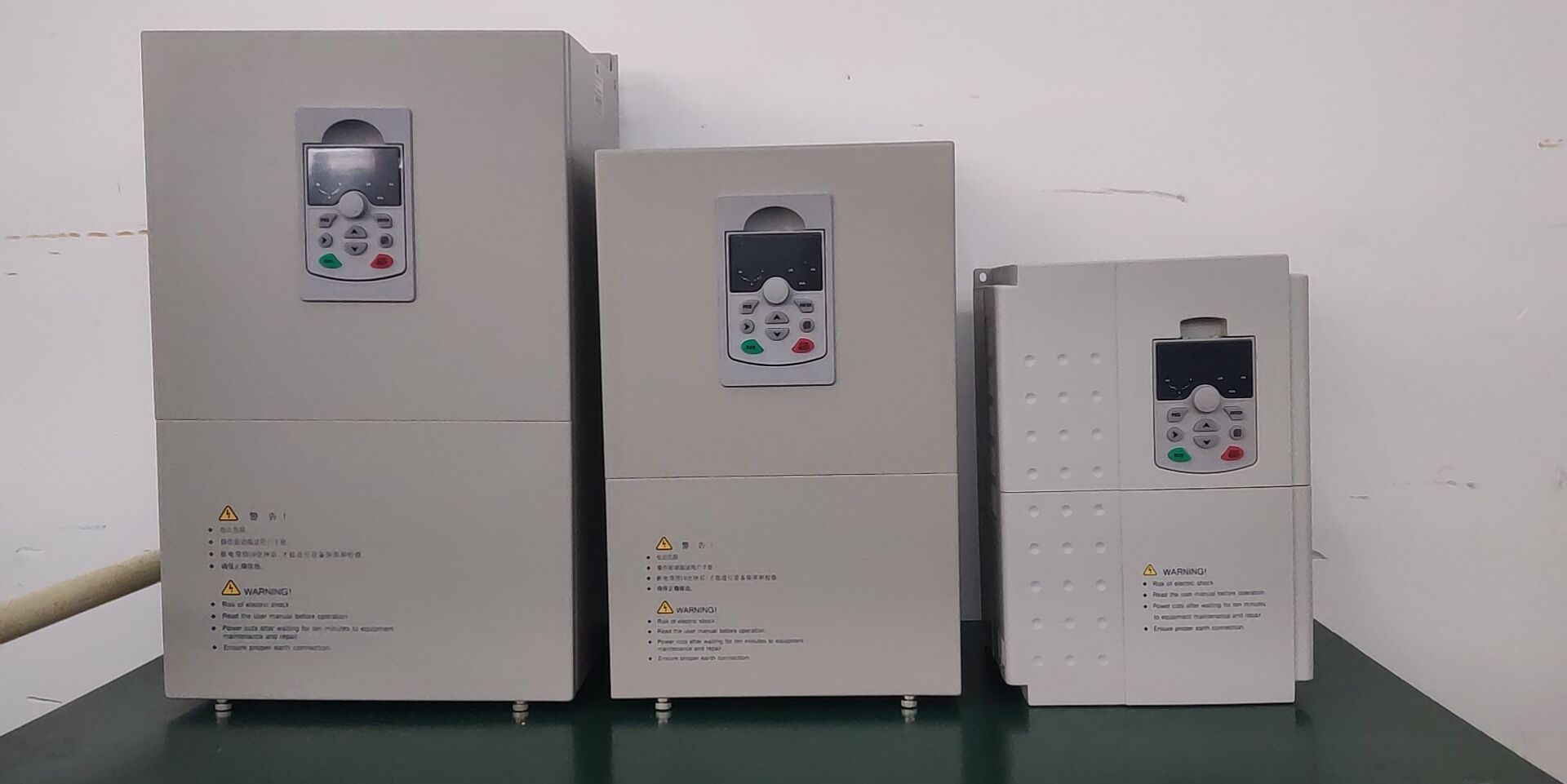

3. There are some products pictures of VFD200A series


Cheap 380V Three Phase In And 220V Single Phase Out Veikong VFD200A VFD Variable Frequency Drive for sale
