| Categories | Rack Roll Forming Machine |
|---|---|
| Brand Name: | SUSSMAN |
| Model Number: | SS-RS |
| Certification: | CE.SGS.ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD65000-85000 Per Set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Delivery Time: | Shipped in 90 days after payment |
| Packaging Details: | Standard package with film, plastic and steel wire. (or customized) |
| Type: | Guide Rail Roll Forming Machine |
| Rolling Speed: | 10 m/min |
| Roller Stations: | 16 stations |
| Main Motor Power: | 11 kw |
| Company Info. |
| Sussman Machinery(Wuxi) Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
1mm-2.5mm Shutter Door Guide Rail Roll Forming Machine with Gearbox Drive
| Items | Specifications | |
| Material of coil | Material Thickness | 2.5mm, 1.85mm galvanized or black steel |
| Un Coiler | 3 tons manual | |
| Forming system | Rolling Speed | 10 m/min |
| Roller Stations | 16 stations | |
| Roller Material | 45# Steel with quenching 50mm shaft | |
| Main Motor Power | 11 kw | |
| Hydraulic cutting Power | 4 kw | |
Cutting system | Material Of Cutting | CR12mov with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source | 440V, 60HZ,3 phase Also can satisfy Customer’s require |
| Control System | PLC (Delta ) as list in the note | |
| Weight | About 4.5 tons | |
| Way Of Drive | Gear box driven | |
| Size of machine | Length 5800mm* Width 600mm* Height 800mm |
Machine List:
3 ton passive decoiler: 1 set
Main roll forming machine: 1 set
PLC Control box with 3 emergency stop: 1 unit
Hydraulic cutting: 1 unit
Hydraulic station: 1 unit
Safety cover: 1 unit
Working Flow:
Uncoiling—feedingwithguide—Rollforming——hydraulicCutting—Products collecting

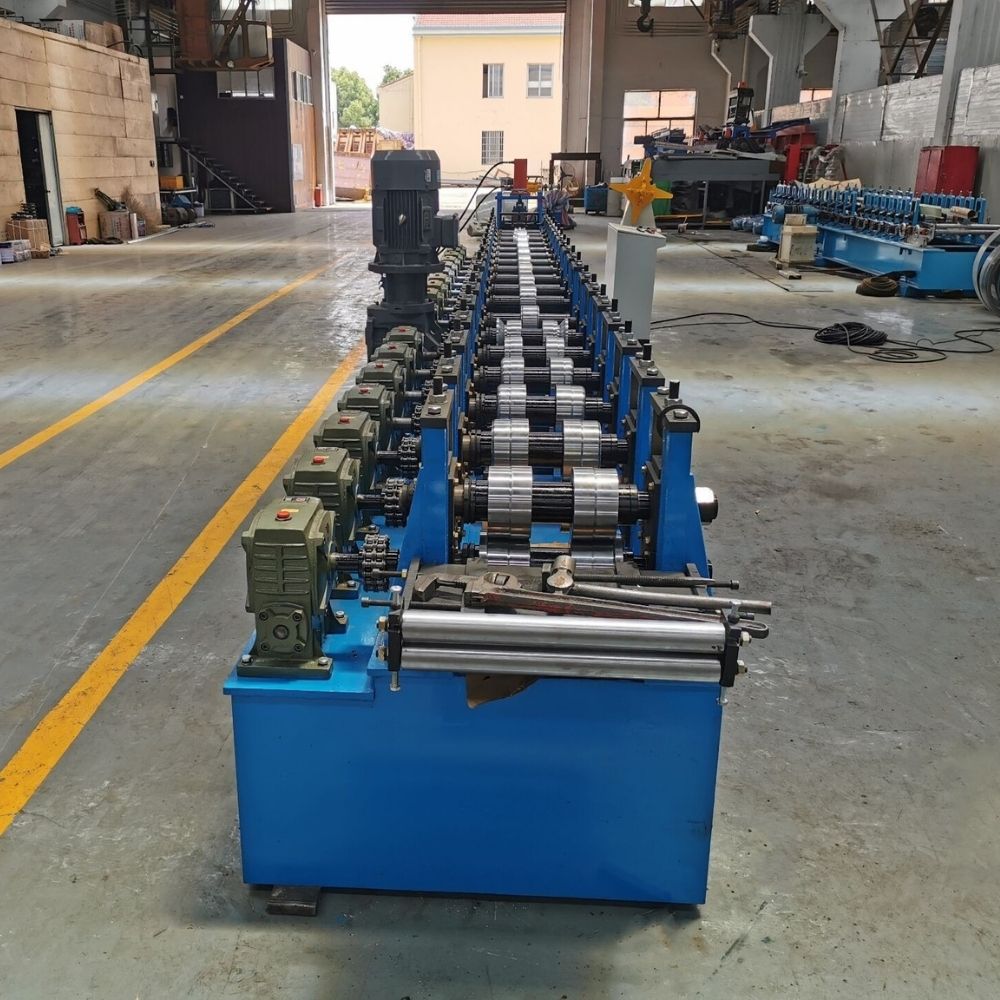

Machine Shows:
Profile Drawing
1) Easy in installation and maintenance.
2) Hardened structural steel and components provide long life and safe operational stability.
3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.
4) Running in an automation, high durability and stability.
5) Compact design, meet custom demands.
|
