Introduction of transformer core cutting machine HJX800-LLB

Transformer core cutting machne, also called cut to length line, HJX800-LLB is a special equipment for cutting silicon steel sheet to make transformer core. The machine is with two cutting and two punching functions to make the core with a special shape. Servo motor is adopted to drive the cutting and punching actions, which guarantees the precision of the actions. The machine is controlled by PLC based control system. Moreover, the machine is with two types, one is common type, another is step lap type. With HMI, it is very easy to operate the machine.

Main components of transformer core cutting machine HJX800-LLB

• Two-end dereeler, hydraulic
• Slopping feed device
• Feeder
• Punch unit
• Shearing unit
• Outlet platform
• Width adjusting system
• Pneumatic system
• Electric control system

Technical parameters transformer core cutting machine HJX800-LLB

Typical standard specifications of transformer core cutting machine HJX800-LLB are shown below, however, the cutting machine can also be manufacted easily modified as requested.

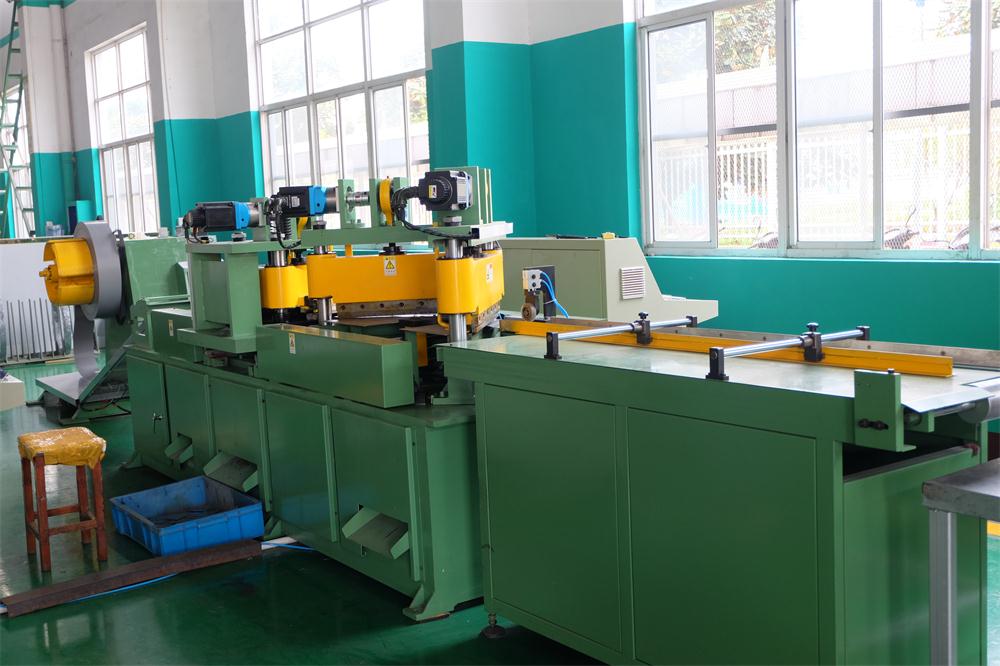

Fig 1: Transformer core cutting machine HJX300's full view


Fig 2: Transformer core cutting machine HJX300's side view
