Chip Low ESR Tantalum Capacitor SMD 100uF 10V 6032 C CASE for Colour TV Sets

Low ESR Chip Tantalum Capacitor SMD 100uF 10V 6032 C CASE for Colour TV Sets

Brief Introduction

• Epoxy molded encapsulation, Chip, Easy for Integration, Heteropolarity;
• Small in size , Light in Weight , Stable in electrical &storage performances. Long life-span. High reliability ;

• Applying in high-dencity surface mount consumer electronic equipment , such as colour TV sets , PC ,mobile telephone sets ,pickup camera ,radar etc.

Test Condition

Ambient temperature:25℃±5℃, relative humidity :≤80% RH .The capacitance, loss and ESR of the capacitor are measured in series under 2.0V bias voltage, in which the ESR test frequency is 100kHz, the capacitance and loss test frequency is 120Hz, and the leakage current is measured when the capacitor is charged with rated voltage for 5min.

Conduct

Test and experiment, in order to make the test results not problems, it is necessary to will test the product after fully discharge.This product is a polar components, testing or when using it is strictly prohibited to will is negative pick back, in order to avoid performance failure.

Technical Characteristics:

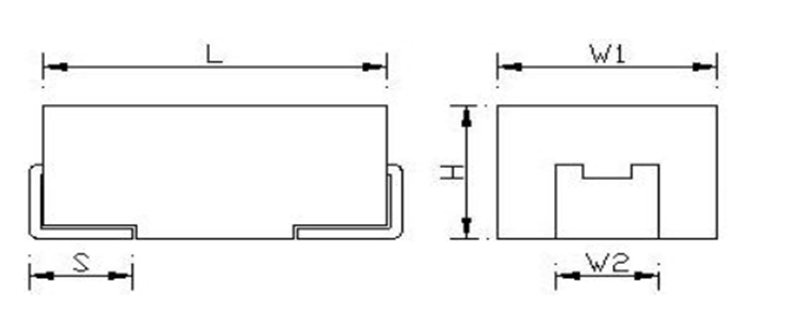

Table 1 Dimensions

Part No: TMCT02-107M10VTC

Part Number Naming Rule:

Specification Table 2

Note: 1. Ur is Rated voltage Cr is normal capacitance

2. Pls don’t test above parameters with the universal meter

2. Capacitance and DF measured at: U_=2.2-1.00V,U~=1.0-0.50VV ( Voltage) Frequency :(100±5)Hz

3. Need decrease the rated voltage to use when environmental temperature is more than 85 ℃ (DCL measuring conditions: Applying rated voltage, the charging interval can exceed 5min.)

Application

Communications, 5G IOT, consumer electronics, automobile,medical equipments and etc., and also aerospace , drilling instrumentation and other industries for defense.

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
