Consumables Doctor Blade Flexo Gravure For Printing

Our Doctor Blade is made of High Quality Carbon Steel with steel grade SH4. Specification is:

The above DB is 100M/box, lamella 0.07x1.3mm

The above DB is 100M/box, lamellar 1.0x1.3mm

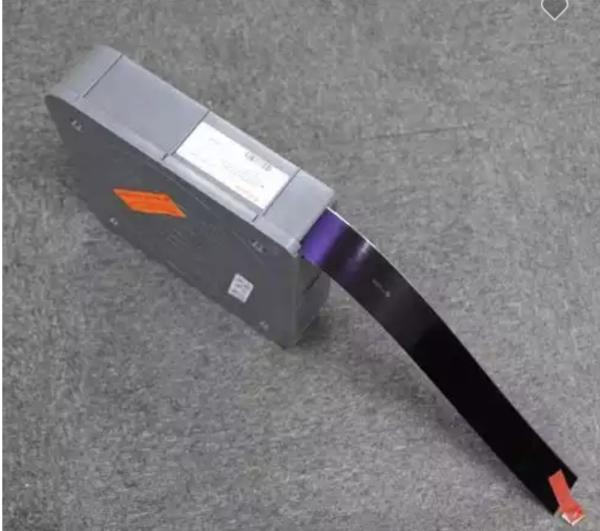

Packed in foam plastic box sealed with film.

Our DB is used widely in flexo or gravure printing m/c to scratch the excessive printing ink radically on the surface of the anilox, suitable for medium or low speed machine.

We also have high quality DB suitable for high speed flexo or gravure printing m/c, steel coil is from Uddeholm, Sweden.

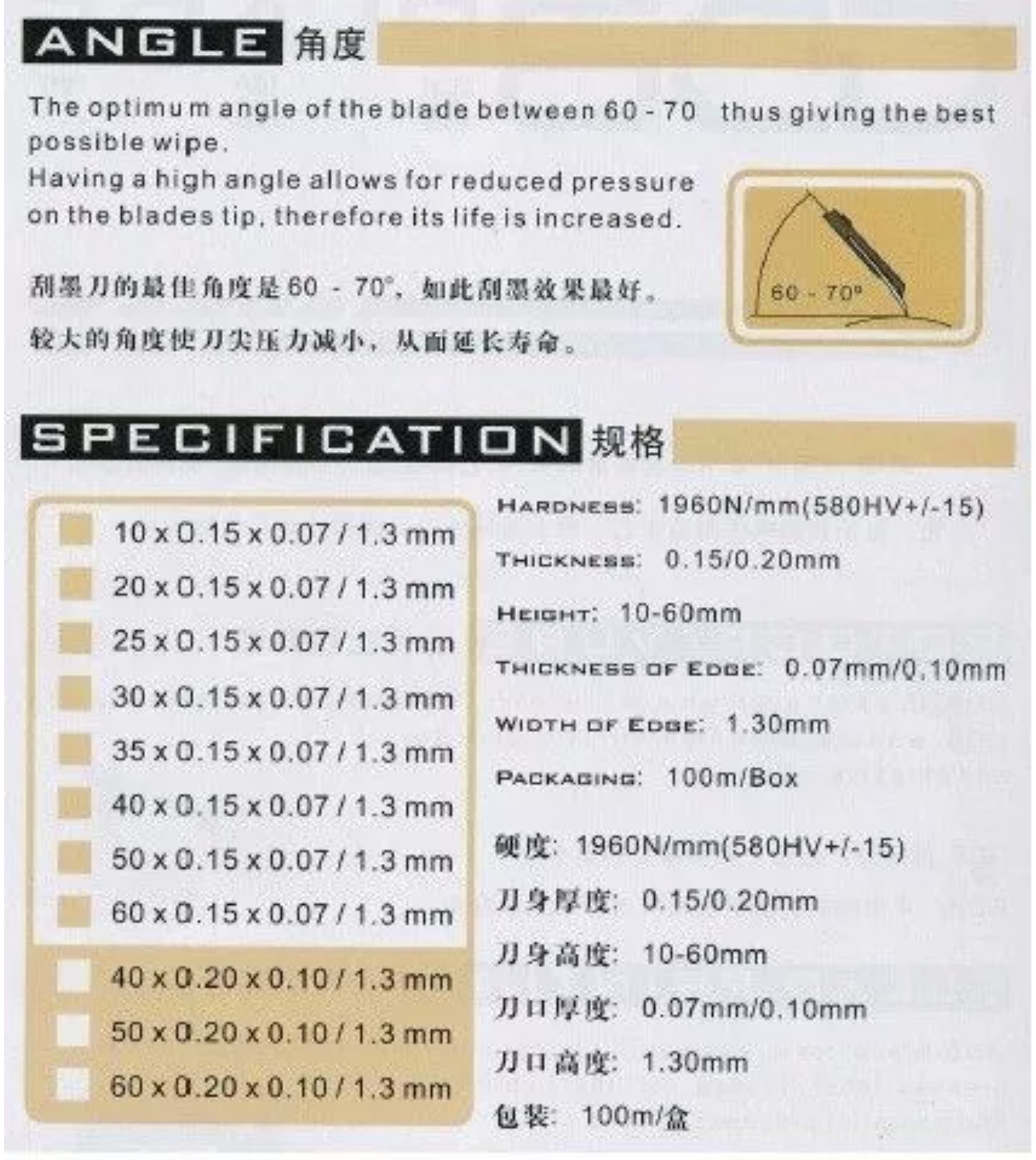

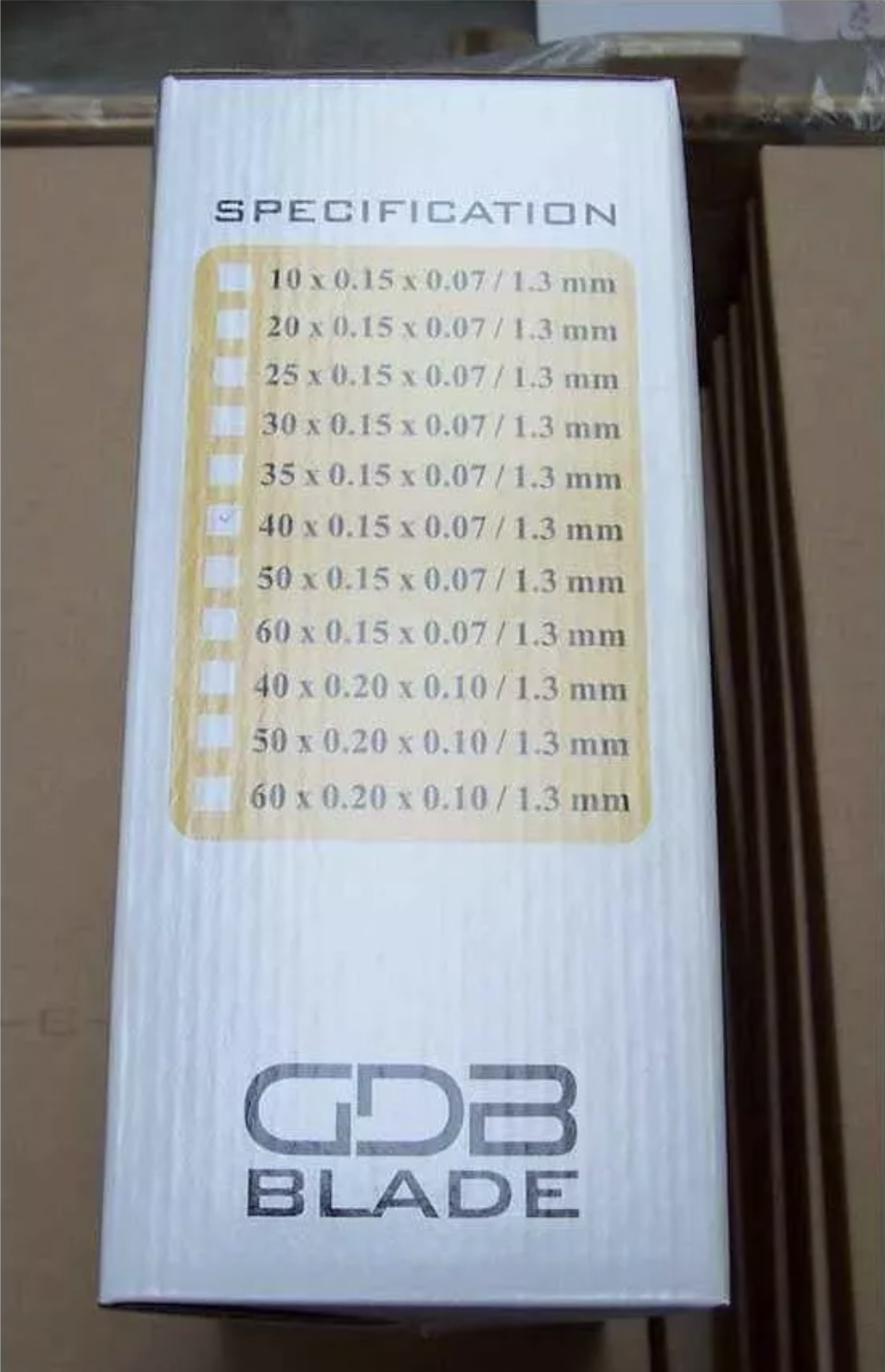

More technical specification, you may refer directly to the packing box picture.

     Shanghai ProMega Trading Co., Ltd. is a professional manufacturer producing qualified products and equipment in printing and packaging industry. Our company was established in 2008. We have 1 steel rule factory in Shanghai producing all kinds of steel rules, punches, ejection rubber, jigsaw blades, pins, doctor blade and creasing matrix in the Cutting formes industry.

     Our main products are related to the Diecutting industry like Auto Bender, Laser cutter, Jigsaw machine, Diecutting machine, Hot stamping machine, Sampler maker, as well the machines in the after printing area such as Folder gluer, Guillotine machine, Laminator, Booking binding like cover machine, grooving machine, cardboard cutting machine, Dieboard making tools and consumables in Packaging and Printing industry.

     We are specialized in the Diecutting industry which we can provide complete resolution of setting up a Dieshop for making Cutting formes and Block making for hot stamping or embossing areas. With our Auto Bender and Laser cutter, manual tools, users can set up or upgrade dieshop easily and raise efficiency greatly. We can provide not only the machines to set up dieshop, but also the software and management for this purpose.

     Our company provide products to the world famous companies like GE Healthcare in Ireland and Norway, Cardinal Singapore, Apolo LTDA in Brazil, Kano Company Limited (Sandvik sole agent in Thailand)

     Our main products as follows:

• Steel rule

(Flat rule like Cutting rule/Creasing rule/Perforating rule, Cut-Crease rule/Wave rule/Zipper rule/Glue Flap rule; Rotary rule like Triangle teeth/Euro Cut/KK/Laser Crease/Tru Fold in shape SN, SNN, Curved)

• Auto bender

(Korean style like YDWS with/without auto lipping/Japanese style like Mutli bender with/without broaching/Japanese and Korean combination style like Korean stick bending for small angle and Japanese panasonic servo driver feeding)

     We are dedicated to not only provide high quality machines and consumables, but also complete resolution as per clients' requirement. We focus on the after sales service to build up fainth on our products. We believe in High quality with Reasonable prices to make all our clients get benefit by choosing our products and services.
