ICU Hospitals Healthcare Community Multi Para Patient Monitor ECG

Categories Patient Monitor Machine
Brand Name: BERRY
Model Number: PM6750
Place of Origin: Shanghai
MOQ: 1 PCS
Price: Negotiation
Payment Terms: T/T
Supply Ability: 10000/Month
Delivery Time: 15 days
Packaging Details: 240*165*50
Type: patient monitor,Medical Monitor
Instrument classification: Class II
Product name: Patient Monitor,patient movement waterproof sensor monitor standing up reminder
Warranty: 1 Year
Application: Adult,ECG,TEMP,Dual IBP
Color: White
Function: ECG,TEMP,Supporting wire or wireless network.,Multi-Parameter Patient Monitor
Name: ICU multi-parameter patient monitor,patient monitor price
Size: 240mm x 165mm x 50mm
Gross weight: 6.3kg
Feature: Wireless/Remote control,Emgency,6 paprameter,Providing better care quality&eliminating fall-injury related costs.
Weight: excluding accessories
Ecg: 3/5-Lead,Muti-lead ECG waveforms display in phase
Voltage: 50/60HZ,AC100-240V,Power≤60W
Material: ABS,Plastic
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

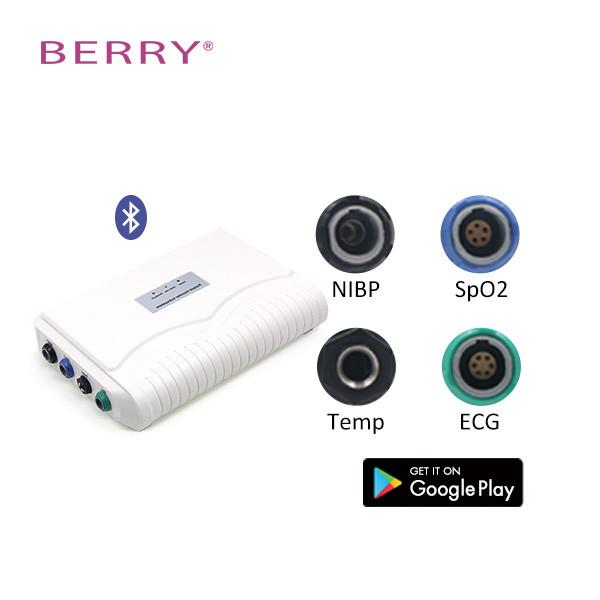

ICU Hospitals Healthcare Community Multi Para Patient Monitor ECG

Patient Monitor PM6750 for ICU, hospitals,healthcare community, home and outdoor use

Specification

ECG
Number of Leads
3 or 5 leads
Gain Slection
250, 500, 1000, 2000
Frequency ResponseDiagnostic: 0.05 to 130HZ
Monitor: 0.5 to 40 HZ
Surgery: 1 - 20HZ
NIBP
Technique
Oscillometric during in flation
RangeAdult/P ediatric : 40-240mmHg
Neonat e : 40-150mmHg
Measurment cycle
<40 sec, typical
Max Allowable Cuff PresureAdult:300mmHg
Pediatric :240 mmHg
Neonate :150 mmHg
Resolution1mmHg

Our leading products list :
1) SpO2 Sensor and Disposable SpO2 Sensor
2) SpO2 Extension Cable and spo2 adapter cable
3) ECG Cable ,EKG cable , Holter Cable and disposable ECG cable
4) ECG Electrode
5) Electrosurgical pencil and Electrosurgical pad
6) IBP Cable and IBP transducer
7) Temperature Probe and disposable Temperature Probe
8) NIBP Cuff and NIBP hose(NIBP tube)
9) Fetal transducer
10) disposable CTG belt and reusable CTG belt
11) EEG Cable and EEG hat (EEG cap)
12) original Ultrasound probe, compatible ultrasound probe, repair ultrasound probe
13) Needle Guide for Ultrasound probe
14) Pulse Oximeter


ECG Specifications
Lead mode: I,II,III,AVR,AVL,AVF,V
Gain:×0.25,×0.5,×1,×2
Heart rate:15-300BPM(Adult) 15-350BPM(Neonatal)
ST measurement Range:-2.0-+2.0mv Accuracy:±10%
Pacemaker: Yes
Sweep Speed:12.5mm/s,25mm/s,50mm/s
Bandwidth:
Diagnostic: 0.05~130Hz
Monitor: 0.5 ~40Hz
Surgery: 1~20Hz

SPO2 Specifications
Measure range: 0-100%
Resolution: 1%
Accuracy: 2%(70-100%)
Pulse Rate:20-250 BPM
Resolution: 1BPM
Accuracy:±3BPM

NIBP Specifications
Work Mode:Manual,Automatic,Continuous
Unit:mmHg,kPa

Measure range:

Adult: SYS 40~280mmHg; DIA 10~225mmHg; MEAN 20~240mmHg
Pediatric: SYS 40~220mmHg; DIA 10~160mmHg; MEAN 20~170mmHg
Neonatal: SYS 40~135mmHg; DIA 10~100mmHg; MEAN 20~110mmHg

Resolution:1mmHg
Accuracy:±5mmHg

RESP Specifications
Measure range:0-150 BrPM
Resolution:1 BrPM
Accuracy: ±2%

TEMP Specifications
Measure range:0-50 ℃
Resolution:0.1 ℃
Accuracy: ±0.1℃
Cheap ICU Hospitals Healthcare Community Multi Para Patient Monitor ECG for sale
