| Categories | Stainless Steel Round Pipe |
|---|---|
| Brand Name: | Vespolari Jiangsu |
| Model Number: | 201 202 301 302 304 316 317 321 310 309 410 420 |
| Certification: | ISO SGS ROHS |
| Place of Origin: | Made in China |
| MOQ: | 1Ton |
| Packaging Details: | standard waterproof package |
| Application: | Construction,Decoration,Industry,machine building,Exhaust Pipe |
| Steel grade: | 300 Series,400 Series,200 Series,304L,316L etc |
| Type: | Welded,Seamless,Liquefied Petroleum Gas,seamless and welded,Hot Rolled / Cold Rolled |
| Welding line type: | ERW,Seamless,Spiral Welded,EFW,weld/seamless |
| Standard: | ASTM,JIS,AISI,DIN,EN |
| Thickness: | 0.4-30mm,1mm-40mm,1mm-150mm(SCH10-XXS),According To Your Demand |
| Outer diameter: | 6-630mm,1mm-1500mm,Customized,Custom Stainless Steel Pipes,6mm-630mm or customized |
| Length: | 3000mm~6000mm,6m,Gernal 5.8m/6m,1m-12m,0.5m-24m |
| Product name: | Stainless Steel Tubing,stainless iron tube,Super Long Seamless or Welded Stainless Steel Pipe/Tube AISI304 316,low price sch80 stainless steel pipe ss316l pipe,304 stainless steel pipe price list |
| Material: | 200 Series/300 Series/400series,304,316,Stainless Steel 201.304. 316,201 |
| Price: | Negotiable |
| Delivery Time: | 7-14 business days |
| Payment Terms: | TT L/C |
| Supply Ability: | 10000000per month |

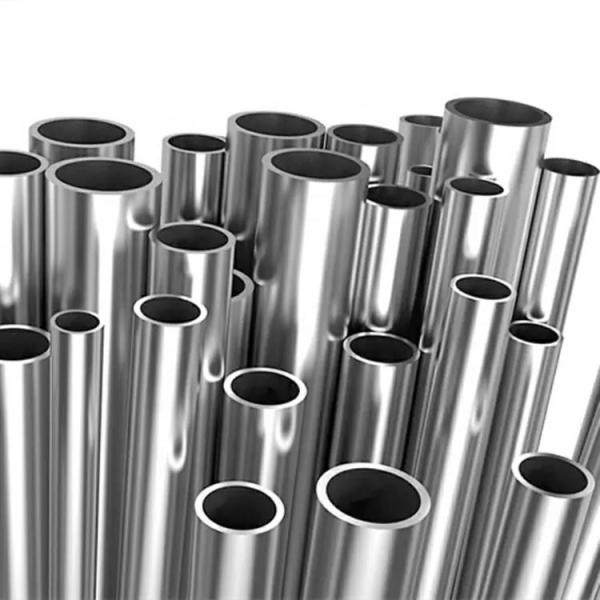

201 Stainless Steel Pipe/Tube
| Specifications of Stainless Steel Pipe | ||
| Standard | ASTM, JIS, DIN, AISI, KS, EN... | |
| Martensite-Ferritic | Ss 405 , 409, 409L, 410, 420, 420J1 , 420J2 , 420F , 430 ,431... | |
| Austenite Cr-Ni -Mn | 201, 202... | |
| Austenite Cr-Ni | 304, 304L, 309S, 310S... | |
| Austenite Cr-Ni -Mo | 316, 316L... | |
| Super Austenitic | 904L, 220 , 253MA, 254SMO, 654MO | |
| Duplex | S32304 , S32550 ,S31803 ,S32750 | |
| Austenitic | 1.4372 ,1.4373, 1.4310, 1.4305, 1.4301, 1.4306 , 1.4318 ,1.4335, 1.4833 , 1.4835 , 1.4845, 1.4841, 1.4401 , 1.4404 , 1.4571 ,1.4438, 1.4541 , 1.4878 , 1.4550 , 1.4539 , 1.4563 , 1.4547 | |
| Duplex | 1.4462 , 1.4362 ,1.4410 , 1.4507 | |
| Ferritic | 1.4512, 1.400 , 1.4016 ,1.4113 , 1.4510 ,1.4512, 1.4526 ,1.4521 , 1.4530 , 1.4749 ,1.4057 | |
| Martensitic | 1.4006 , 1.4021 ,1.4418 ,S165M ,S135M | |
| Surface Finish | No. 1, No. 4, No. 8, HL, 2B, BA, Mirror... | |
| Specification | Thickness | 0.25-8mm |
| Outer Diameter | 10-1219mm | |
| Payment Term | T/T, L/C | |
| Package | Export standard package or as your requirements | |
| Deliver Time | 7-10 working days | |
| MOQ | 1 Ton | |
| Size of Stainless Steel Pipe | ||||||||||||
| DN | NPS | OD(MM) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 6 | 1/8 | 10.3 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | - | - |
| 8 | 1/4 | 13.7 | - | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | - | - |
| 10 | 3/8 | 17.1 | - | 1.65 | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 | 3.2 | - | - |
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 |
| 32 | 11/4 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.7 |
| 40 | 11/2 | 48.3 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.7 |
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 21/2 | 73 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 |
| 90 | 31/2 | 101.6 | 2.11 | 3.05 | 5.7 | |||||||
Features of Industrial Stainless Steel Pipe:
1) Treatment: Hot Rolled and Cold Rolled
2) Industrial Stainless Steel Normal Material Grade: 200/300/400 series
3) Surface:Picking,Polished/Satin/Hairline:180G/320G/400G etc.,Mirror Finish:400G/500G or 800G
4)WallThickness Range: 1mm~30mm
5) Edge: Slit edge & Mill edge
6)Outdiameter Range: 6 - 630mm
7)LengthRange: 6m or as your request
8) Available Standard: ASTM, AISI, SUS, JIS, EN, DIN, GB, ASME, etc.
9) Certification: MTC and SGS and Any third party inspection
10) Brand: TISCO, BAO STEEL, BAOXIN, ZPSS, LISCO, JISCO, etc.( main mills)
11) Package: Standard Export Sea-Package (Waterproof Kraft Paper + Wooden Pallet + Bundle with steel strip)
|
