Categories | Embedded Industrial PC |
---|---|
Brand Name: | ITD/OEM |
Model Number: | ITD-MNPC-J6412-GEHL1 |
Certification: | CE/ROHS/FCC |
Place of Origin: | China |
MOQ: | 1PCS |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 10000 units per month |
Packaging Details: | Foam,gift box,wooden case,pallet |
Mounting: | VESA, side brackets |
Optional Processor: | Onboard Intel® i3-6157U Skylake |
Operating temperature: | -30 to 70℃ |
dimension: | 180 x 120 x 54 mm |
LAN: | 2 x GbE RJ45 Intel i225 |
I/O: | 4 x USB3.0 2 x USB2.0 6 x DB9 COM( Only RS232) 1 x HDMI,1 x VGA 1 x Power Button DC 12V input 1 x Audio ,1 x Mic-in 2 x Antenna interface for WIFI/3G/4G |
Power Supply: | DC 12V |
MTBF: | 50000H |
Expansion Slot: | Mini-PCIe x 1 half size ,for wifi/BLT Mini-PCIe x1 full size, with SIM Card for 3G/4G |
Warranty: | 2 years |
Video Outputs: | 1 x HDMI,1 x VGA |
Price: | TBA |
Company Info. |
Shenzhen ITD Display Equipment Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

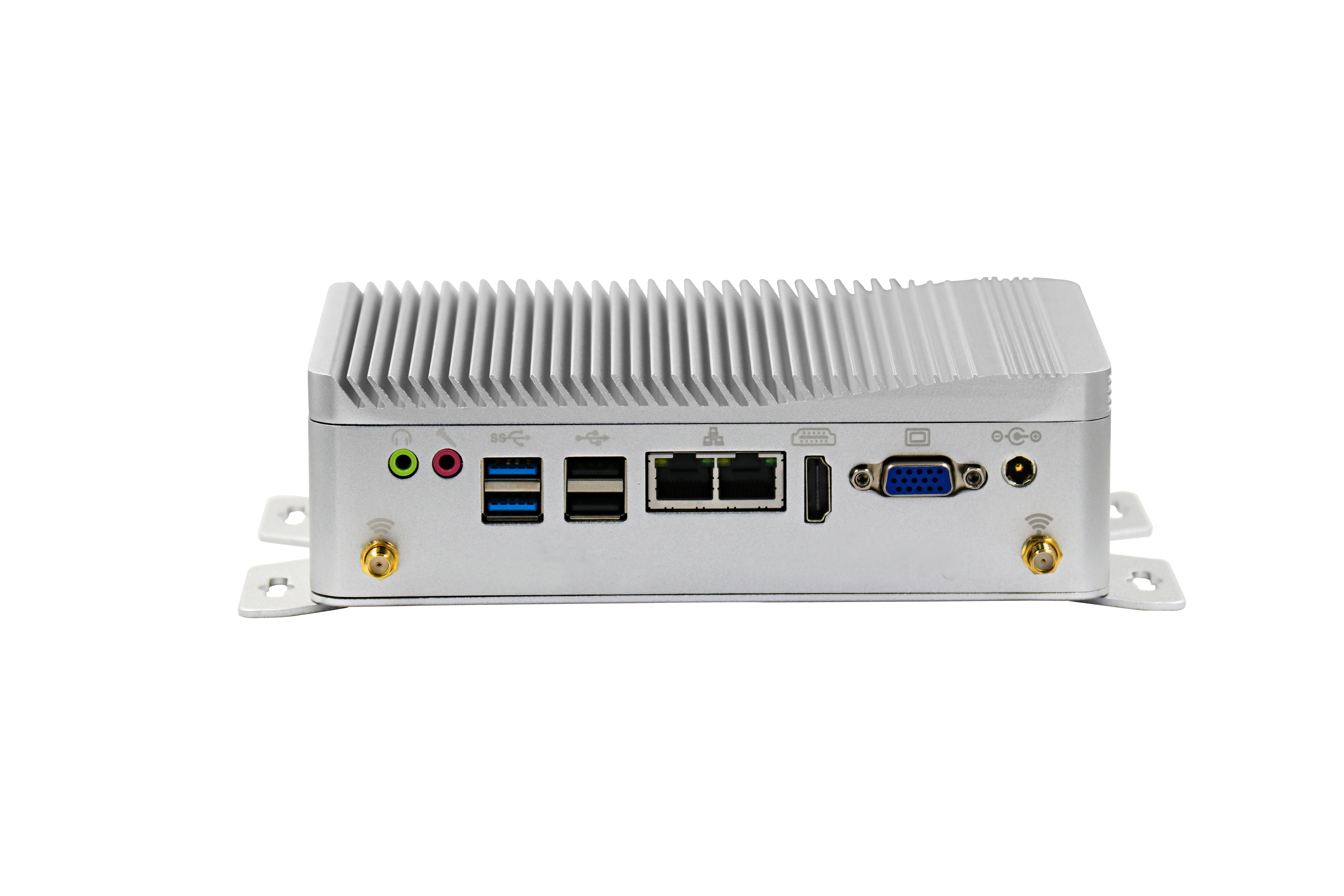

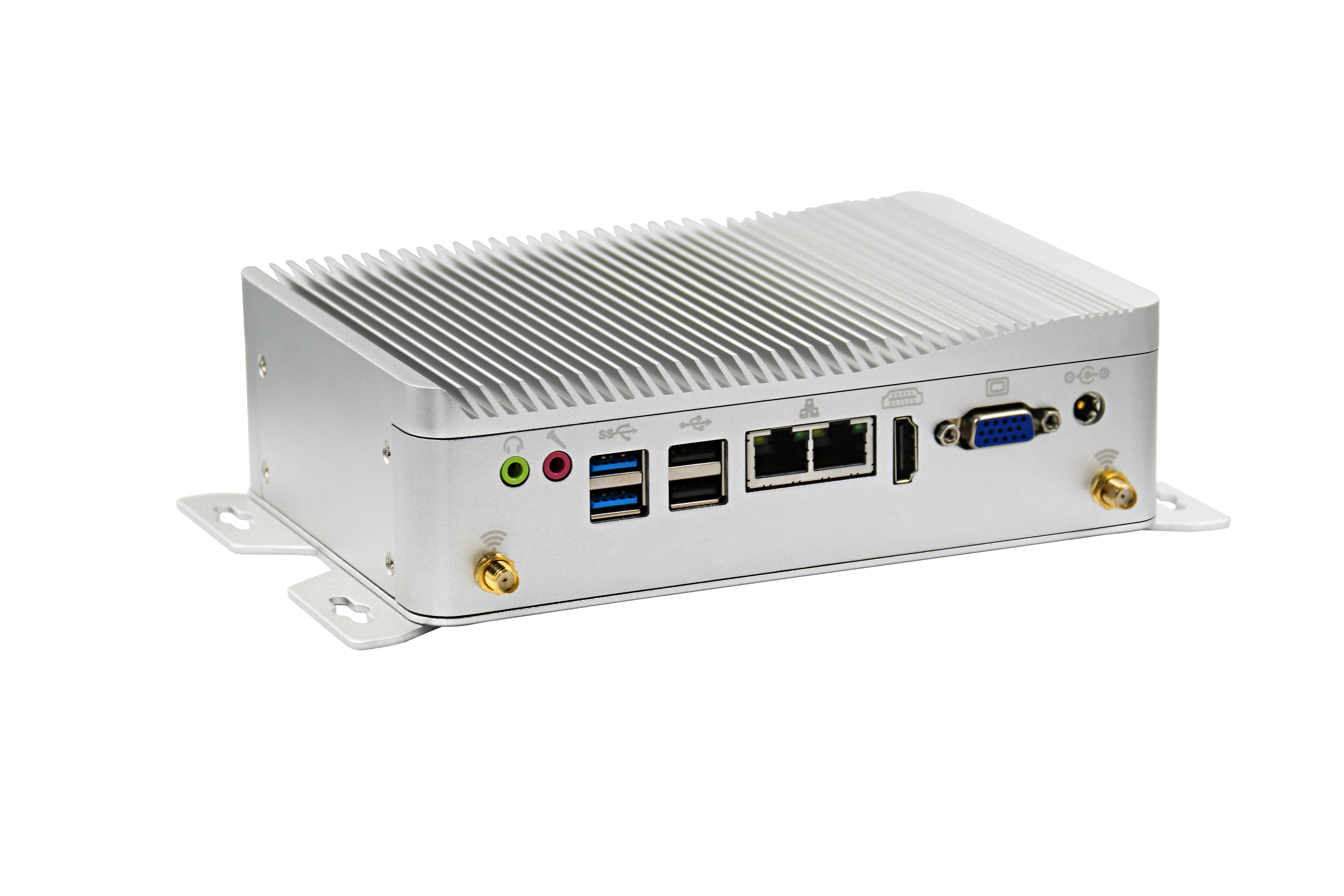

Fanless compact industrial mini PC computer 4G Intel I3 6157U Skylake
Features of Fanless industrial mini PC:
Specifications of Fanless industrial mini PC:
Specifications
System
Processor i3-6157U
System memory DDR4 SODIMM
up to 16GB
OS Support
Windows 7/10
WES 7/10
Linux
I/O Port
4 x USB3.0
2 x USB2.0
6 x DB9 COM( Only RS232)
1 x HDMI,1 x VGA
1 x Power Button
DC 12V input
1 x Audio ,1 x Mic-in
2 x Antenna interface for WIFI/3G/4G
Ethernet 2 x GbE RJ45 Intel i225
Storge Disk Driver 1x MSATA
1x HDD/SSD
Expansion Slot Mini-PCIe x 1 half size ,for wifi/BLT
Mini-PCIe x1 full size, with SIM Card for 3G/4G
Watchdog timer 255 Levels
Adapter
DC input 12V
Mechanical
Construction Aluminum
Mounting Desktop/ wall mounted
Dimension 180 x 120 x 54 mm
Net Weight 1.0 Kg
Environmental
Operating TEMP -30℃ to +70℃
Storage TEMP -20℃ to +60℃
Storage Humidity 10%~90% @30℃,non-condensing
Displays of Fanless industrial mini PC:
![]() |
