800MHz 1.4GHz 2.4GHz HD Drone Data Link 5KM Transmitter And Receiver

5KM Wireless Data Video Transmitter HD Drone Link Data and Video Link

1. Fast details of Wireless Data Video Transmitter

• Lower RF power and power consumption
• Support IP video output and bidirectional TTL serial data(not available, will be opened in future)
• Optional Bandwidth(3MHz/5MHz/10MHz/20MHz)
• TDD wireless transmission technology
• MIMO Antenna technical
• Duplex Transmitting Rate is 3-8Mbps
• Support Point to Point and Point to Multi-Point. 3-5 TX to 1RX, or 1TX to 3-5 RX.
• Long range more than 5km

2. Description of Wireless Data Video Transmitter

ST5NMT is the latest miniaturized and functional wireless transmission equipment. It adopts TDD wireless transmission technology and dual antenna diversity design to make the signal transmission quality more stable.

The device can support bidirectional transmission of network data and TTL serial data at the same time. The data link can be adjusted according to different ratios, and the uplink and downlink data link transmission rates can be adjusted proportionally.

In addition, the module has three frequency of 2.4GHz/1.4GHz/800MHz for option. The equipment can be applied to the use of intelligent unmanned terminals such as UAV drones, unmanned ships, unmanned boats and robots.

3. Specification of Wireless Data Video Transmitter

HardWare

System

4.Application of Wireless Data Video Transmitter

The weight of ST5NMT with very light weight and small size,and use of intelligent unmanned terminals such as UAV drones, unmanned ships, unmanned boats and robots.

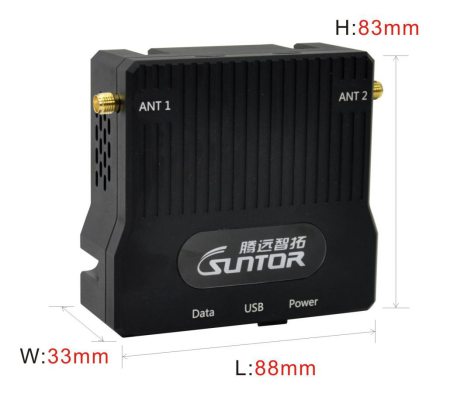

5.Prodcuts size of Wireless Data Video Transmitter

6.FQA

Q1. What about the lead time?

A1: Sample needs 5-7 days, mass production time needs 1-2 weeks.

Q2. Can I have a sample order for wireless vedio data Link?

A2: Yes, we welcome sample order to test and check quality.

Q3. Do you have any MOQ limit for COFDM Transmitter order?

A3: Low MOQ, 1pc for sample

Q4. How do you ship the goods and how long does it take to arrive?

A4: We usually ship by DHL, UPS, FedEx or TNT.
