Integrated Circuit Chip PCM1753TDBQRQ1 Audio Digital To Analog Converter PCM1753-Q1

Integrated Circuit Chip PCM1753TDBQRQ1 Audio Digital To Analog Converter PCM1753-Q1

Product Description Of PCM1753TDBQRQ1

PCM1753TDBQRQ1 is a CMOS, monolithic, integrated circuit, which includes stereo digital-to-analog converters and support circuitry in a small 16-lead SSOP package.
PCM1753TDBQRQ1 use enhanced multilevel delta-sigma architecture, which employs 4th-order noise shaping and 8-level amplitude quantization to achieve excellent dynamic performance and improved tolerance to clock jitter.
PCM1753TDBQRQ1 accepts industry-standard audio data formats with 16- to 24-bit data, providing easy interfacing to audio DSP and decoder chips. Sampling rates up to 200 kHz are supported. A full set of user-programmable functions is accessible through a three-wire serial control port, which supports register write functions.

Specification Of PCM1753TDBQRQ1

Features Of PCM1753TDBQRQ1

• Device Temperature Grade 2: –40°C to 105°C Ambient Operating Temperature Range
• Device HBM ESD Classification Level 2
• Device CDM ESD Classification Level C4B
• 24-Bit Resolution
• Analog Performance (VCC = 5 V)
• Dynamic Range: 106 dB
• SNR: 106 dB, Typical
• THD+N: 0.002%, Typical
• Full-Scale Output: 4 VPP, Typical
• 4× and 8× Oversampling Digital Filter
• Stop-Band Attenuation: –50 dB
• Pass-Band Ripple: ±0.04 dB
• Sampling Frequency: 5 kHz to 200 kHz

Applications Of PCM1753TDBQRQ1

• Automotive Infotainment and Cluster
• A/V Receivers
• HDTV Receivers
• Car Audio Systems
• Other Applications Requiring 24-Bit Audio

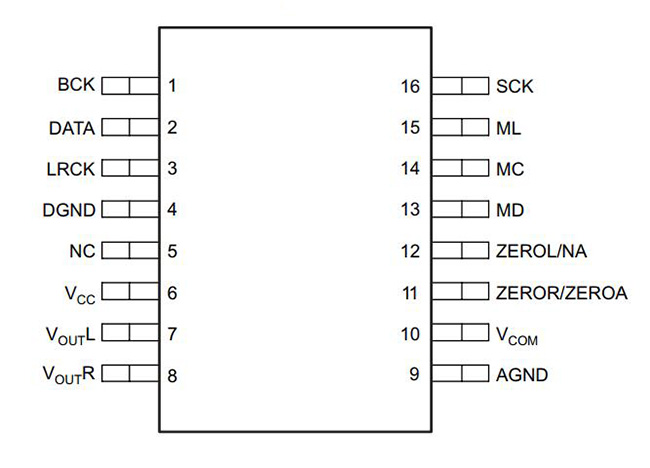

Pin Configuration Functions Of PCM1753TDBQRQ1
