3.5 Inch 320x480 TFT Display With Pcap Monitor Sunlight Readable TFT Lcd Module

3.5 Inch 320x480 SPI IPS TFT LCD Module With CTP/Sunlight Readable/TFT-H035A11HVTST5C15

Product parameters
Display Size - 3.5"
Product Application - Outdoor Instrumentation
Perspective - Full Perspective
Backlight type or brightness - 500cd/m2
Connection method PIN number - 15PIN

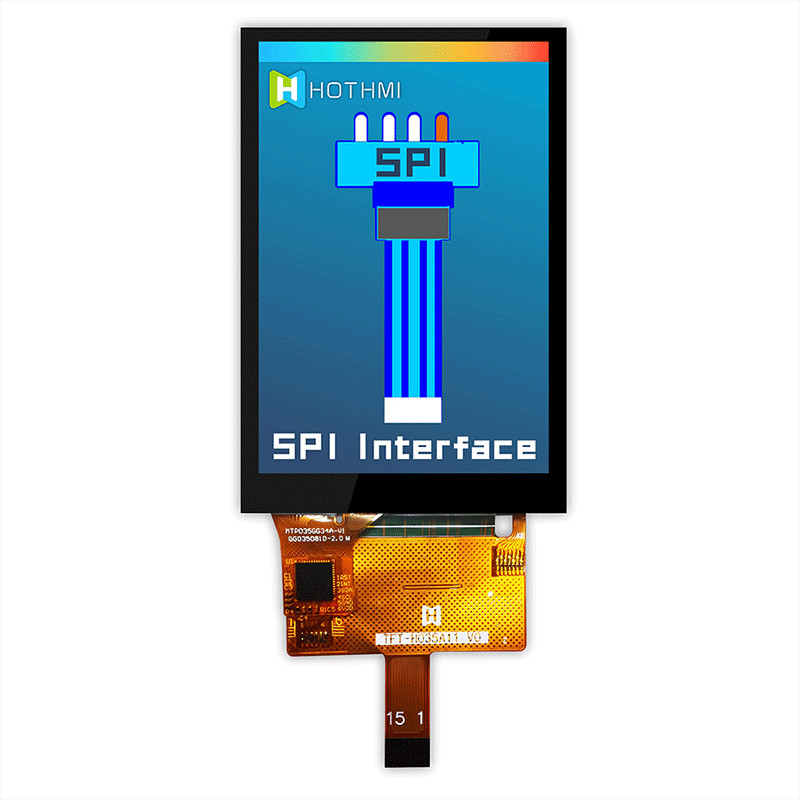

Interface - SPI-4L
Special Instructions - Capacitive Touch with CTP

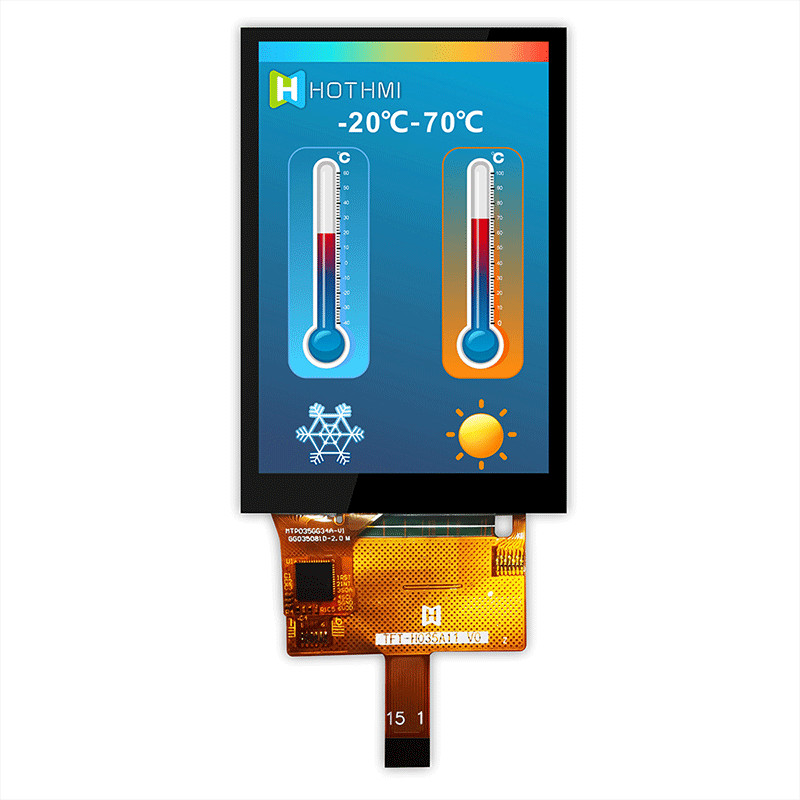

Working temperature - (-20~70℃)
Supply Voltage - 3.3V

Product Description

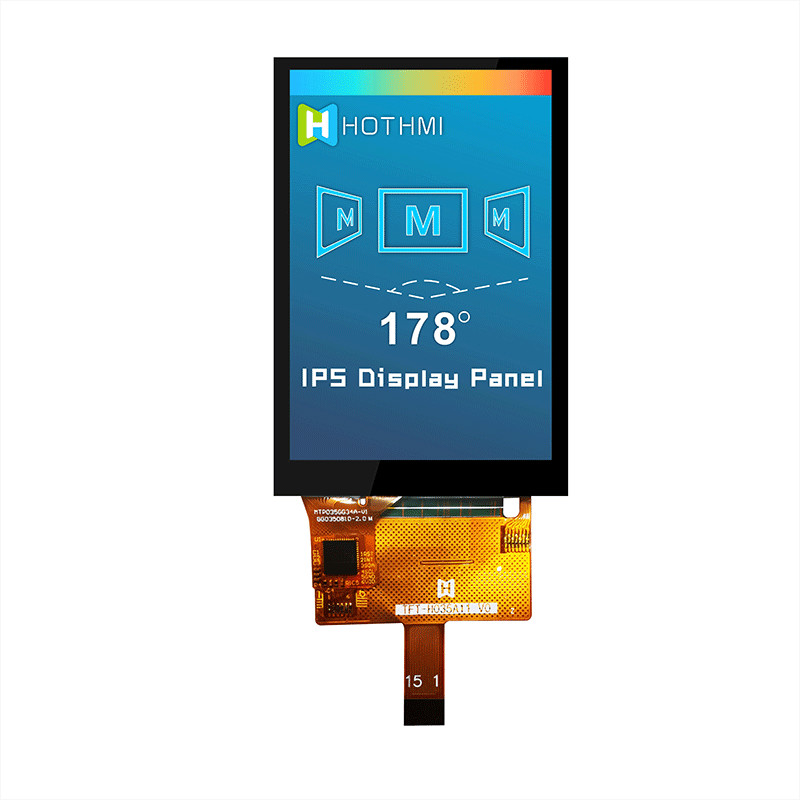

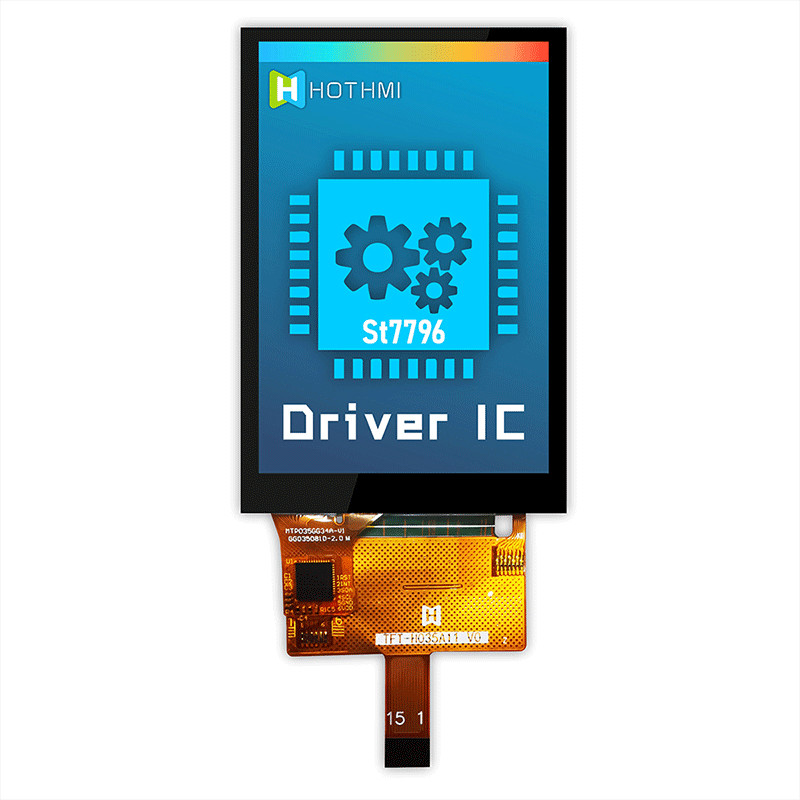

Product Description The TFT-H035A11HVTST5C15 is a 3.5-inch wide temperature IPS TFT-LCD monitor with a projected capacitive touch screen with a resolution of 320X480 pixels. The module has built-in ST7796 driver IC and supports SPI interface. TFT-H035A11HVTST5C15 adopts IPS panel, which has the advantage of wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical value), contrast ratio 800:1 (typical value), brightness 400 nits (typical value) value), glare panel, 1:1.5 aspect ratio. Support I2C interface and single touch function. The H035A11 model has a projected capacitive touch panel (PCAP), and the power supply voltage (VCC) of the TFT-H035A11HVTST5C15 is 3.3V. It can operate at temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C.

Search keyword: tft 3.5, tft 3.5", 3.5 tft lcd, 3.5" tft lcd, 3.5 inch tft lcd, tft lcd 3.5, 3.5 tft display, 3.5" tft display, 3.5 inch tft display, tft display 3.5, tft display 3.5"

TFT-H035A11HVTST5C15(GT911).pdf
