Riser Dovetail Fixture Rigid CNC Milling Fixture Aluminum Manual

Categories	Dovetail Fixture
Brand Name:	AST
Model Number:	YW25-96
Place of Origin:	China
MOQ:	1
Payment Terms:	T/T
Supply Ability:	5-7Working days after confirm order
Delivery Time:	5-8 working days
Packaging Details:	carton packing size
cnc:	5axis vise
material:	steel for dovetail fixture parts
holder material:	aluminum for blue parts
features:	excellent holding power
size:	37mm x 41mm x 27mm
Zero-Point Adaptable:	yes

Contact Now

Add to Cart

Company Info.

Dongguan LiHeng machinery industry co.,ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

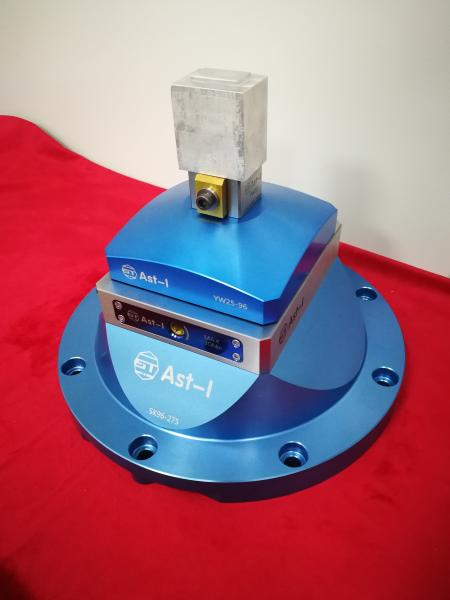

Riser Dovetail Fixture Rigid CNC Milling Fixture Aluminum Manual

Aluminum Manual Dovetail Fixture For 5 Axis Riser Machine YW25-96​

AST Dovetail Fixtures are made to hold your part on four and
five-axis CNC machines. The fixtures provide rigid clamping while
exposing five faces of the workpiece – Most features can be
completed in a single operation.

Our unique Dovetail spring-loaded clamps require only 1/8″ of
material to hold the workpiece. That means less waste, easier prep
and no distortion. You prepare all your parts with a single
dovetail and utilize the same fixture for every part. Easy, strong
and efficient.

This part has been improved to have the ability to mount to Zero
Point plates.

Size: 37mm x 41mm x 27mm
Simple and robust dovetail fixture
Very small footprint, excellent holding power

self centering 5 axis vise
1. Material: Superhard aluminum.
2. Warranty:1 years
5.max clamping range:

Product Name	dovetail fixture YW25-96
Material	Superhard aluminum
Used	Four-axis, five-axis, CNC indexing plate, precision machining of vertical horizontal CNC milling machine.
Advantage	Easy to use,precise clamping.

Detail description

Version
Application	Aluninum , copper and otjer metal cutting processing
Advantage	Blank positioning ,small clamping position ,large clamping force ,5-axis machining per time, clamping outside machine, fast switching

Product Tags:

Riser Dovetail Fixture

Dovetail Fixture Rigid

CNC Milling Fixture

Riser Dovetail Fixture Rigid CNC Milling Fixture Aluminum Manual
