Biotechnology 500L Mixing Tank Agitator Moveable Multi Function

Categories Mixing Tank Agitator
Brand Name: Weidong
Model Number: Storage Tank L500P
Certification: CE & ISO9001
Place of Origin: Guangzhou
MOQ: 1 set
Price: USD 9800-10000/SET
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 10 SETS per month
Delivery Time: 5-7 days
Packaging Details: wooden case
Max Working Pressure: 0.6 MPa
Dimension: 0.8*0.8*3M
Capacity: 500L
Weight: 200kg
Key Selling Points: High Productivity
Warranty: 1 year
After-sales Service Provided: Online support, Video technical support
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear,Pump
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

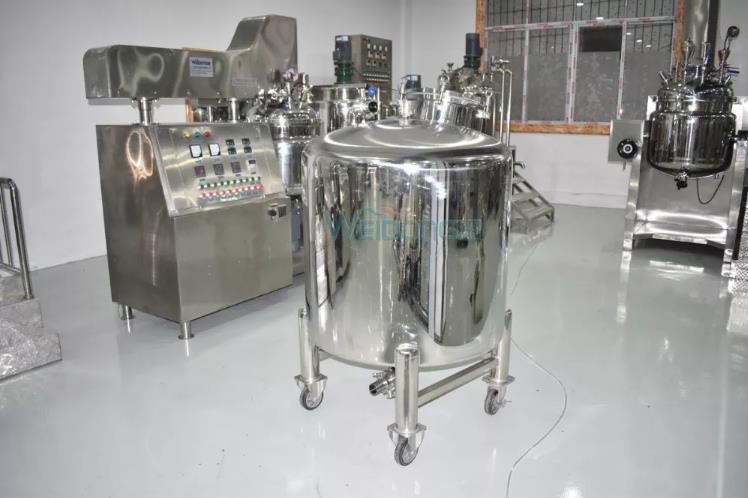

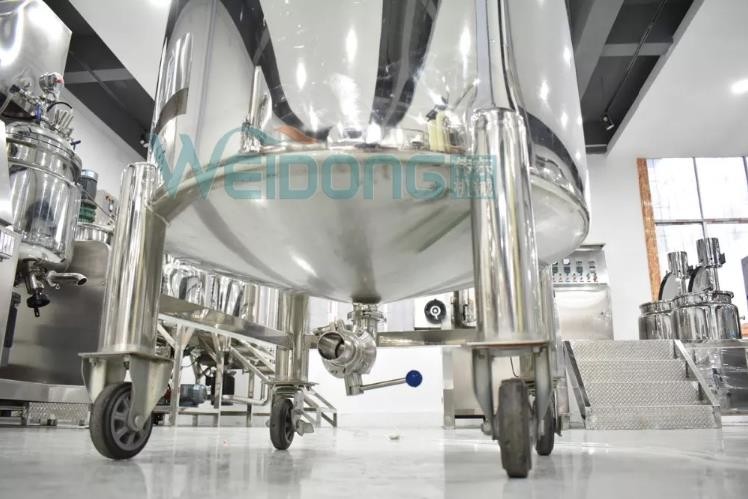

Biotechnology 500L Mixing Tank Agitator Moveable Multi Function

Mixing Tank Agitator Biotechnology Moveable 500L Sealed Storage Tank


Description:


Machine's Advantage:

We can supply single-layer, dual-layer and three-layer stainless steel tanks with or without agitation to blend product. These tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards


Application field:

1.Used for rawness milk tank, processed milk tank, mixing tank(without heating),temporary storage tank, waiting for filling tank, etc.

2.Suitable for such fields as dairy, juice, beverage, medicine chemical or bio-engineering project, etc.


Structure:

1.Consisting of inner tank body and outer covering layer, among which is heat preservation material.

2.material of tank is good quality stainless steel.

Standard scheme:

1.Quick open type manhole

2.Numeral indication type thermometer

3 .T type cleaning head

4. lever discharge valve

5.Adjustable conic supporting feet


Technical parameter:

Stainless steel storage tank
Material:
SS304 or SS316L or Duplex stainless or 904L
Design Pressure:
-1 -10 Bar (g) or ATM B9
Work Temperature:
0-200 °C
Volumes:
100~30000L
Construction :
Vertical type or Horizontal type
Jacket type :
Dimple jacket, full jacket, or coil jacket
Structure :
Single layer vessel, vessel with jacket, vessel with jacket and insulation
Heating or cooling function
According to the heating or cooling requirement , the tank will have jacket for requried function
Opitional Motor:
ABB, Siemens, SEW or Chinese brand
Surface Finish:
Mirror Polish or Matt polish or Acid wash&pickling or 2B
Standard components :
Manhole,sight glass , cleaning ball
Optional components :
Vent filter, Temp. Gauge, display on the gauge directly on the vessel
Temp sensor PT100, digital display on the control cabinet by instrument
Temp sensor with control for heating and cooling Level gauge with digital
display on the control cabinet by instrument Load cell Valves
Applications:
Wine, Beer Juices Food & Beverage Pharmaceutical Biotechnology &Laboratory Medical &Medical Device Chemical Industry Painting Industrial

The data in this form due to technical improvement, and not customized to Prevail in kind
