| Categories | Stainless Steel Tubes |
|---|---|
| Brand Name: | Torich |
| Model Number: | SB-163 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1tons |
| Price: | 2000 -6000USD/TON |
| Payment Terms: | T/T L/C |
| Supply Ability: | 50000 TONS PER YEAR |
| Delivery Time: | 30-60DAYS AFTER CONFIRMED |
| Packaging Details: | IN BUNDLES OR WOODEN BOXES |
| Application: | for Bolier,Superhearter, and Heat-Exchanger Tubes |
| Type: | Seamless |
| Steel Grade: | 6600 |
| Standard: | ASTM |
| Thickness: | 0.4-30mm |
| Length: | 6m or as customers' request |
| Company Info. |
| Torich International Limited |
| View Contact Details |
| Product List |

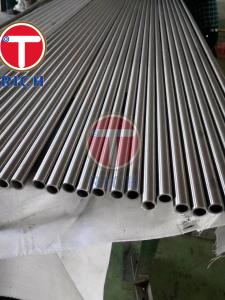

SB-163, UNSN06600 19.05X1.65 Inconel 600 Chemical Composition Nickel Alloy Seamless & Welded Heater Tube
| Origin | China |
| Brand name | Torich |
| Certificate | ISO9001 TS16949 |
| Material | UNSN06600 Inconel 600 |
| Product name | SB-163, UNSN06600 19.05X1.65 Inconel 600 Chemical Composition Nickel Alloy Seamless & Welded Heater Tube |
| Capacity | Cutting Bending etc |
Basic introduction
SB-163 material grade UNS N06600 ,inconel 600 Chemical composition as per standard as below
Nickel 72% min,Cr 14.0-17.0 Iron 6-10.0 C0.15 max Mn 1.0 max S 0.015max Si0.5max Copper 0.5max
Steel grade : W.Nr. 2.4816
Size range:
OD 6-168mm
WT 0.5-15mm
Production method:Seamless Cold drawning,Seamless Cold rolled.
Place Of Origin: Zhejiang, China (Mainland)
What we can do :
Cutting ,Bending Machining.

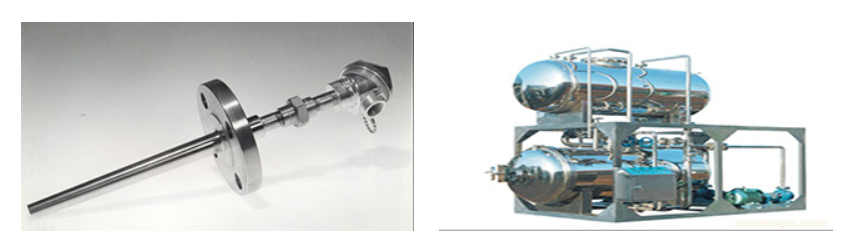

* Evaporation tanks, acid and alkali industrial machinery, catalytic regenerators in petrochemical production.
* Retorts and components in heat treatment furnaces, especially in carbonizing and nitriding gases.
* Nuclear reactor power generation equipment, heat exchangers.
* Resistant to chlorine and fluorine corrosion: production of organic or inorganic chlorides and fluorides.
* Production and use of corrosive alkali metals, especially environments where sulfides are used.
* Thermowells in aggressive gases
Feature of Inconel 600 Nickel alloy tubes
* Good resistance to reduction, oxidation and nitriding medium corrosion.
* Good resistance to stress corrosion cracking at room temperature and high temperature.
* Good resistance to dry chlorine and hydrogen chloride gas corrosion.
* High strength at 650°C, good forming, easy to weld; in air, the maximum operating temperature is 1175°C.
Packaging:Wooden cases or according to client’s requirements
Shipping: Land transportation/Ocean transportation
PS:
Standards: ASTM / ASME SB 163 / 165 / 167 / 464/ 517 / 619 / 622 / 626 / 704
/ 705.
Grades:-
UNS 6625 (Inconel 625)
|
