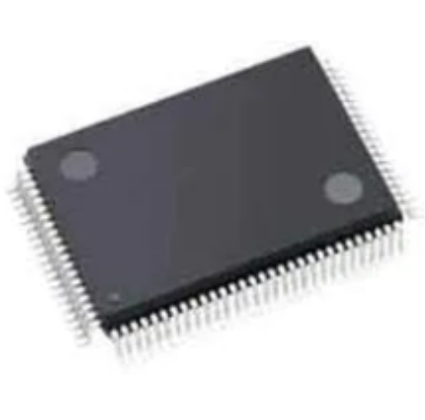

PIC32MX795F512L-80IPF 16 Channel 32 Bit Microcontrollers MCU USB 2xCAN 8 DMA

PIC32MX795F512L-80IPF 16 Channel 32-bit Microcontrollers MCU 512KB Flash 128KBRAM USB 2xCAN 8 DMA

Operating Conditions;

• 2.3V to 3.6V, -40ºC to +105ºC, DC to 80 MHz

Core: 80 MHz/105 DMIPS MIPS32® M4K®

• MIPS16e® mode for up to 40% smaller code size

• Code-efficient (C and Assembly) architecture

• Single-cycle (MAC) 32x16 and two-cycle 32x32 multiply

Clock Management

• 0.9% internal oscillator (on some variants)

• Programmable PLLs and oscillator clock sources

• Fail-Safe Clock Monitor (FSCM)

• Independent Watchdog Timer

• Fast wake-up and start-up

Power Management

• Low-power management modes (Sleep and Idle)

• Integrated Power-on Reset, Brown-out Reset

• 0.5 mA/MHz dynamic current (typical)

• 41 µA IPD current (typical)

Graphics Features

• External graphics interface with up to 34 Parallel Master Port (PMP) pins:

- Interface to external graphics controller

- Capable of driving LCD directly with DMA and internal or external memory

Analog Features

• ADC Module:

- 10-bit 1 Msps rate with one Sample and Hold (S&H)

- 16 analog inputs

- Can operate during Sleep mode

• Flexible and independent ADC trigger sources

• Comparators:

- Two dual-input Comparator modules

- Programmable references with 32 voltage points
