Pouch Cell Battery Polymer Case Cup Forming Machine Lithium Assembly Line Equipment

Categories Pouch Cell Battery Assembly
Brand Name: GELON
Model Number: GN-S200F
Certification: CE
Place of Origin: CHINA
MOQ: 1 set
Price: USD 54800 / set
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50 sets/ month
Delivery Time: 30~45 days
Packaging Details: Wood frame
Forming size: Max.L60*W60mm
Forming pressure: Max. 10T
Punch depth: Max. 7mm
Forming Dimension Tolerance: ±0.5mm
The thickness of Al plastic film: 0.1~ 0.2mm
Gas source: 0.5-0.8MPa compressed air
Power: 2500W
Equipment Dimension: About L2000*W940*H1900mm
Equipment weight: About 1.5T
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Pouch Cell Battery Polymer Case Cup Forming Machine Lithium Assembly Line Equipment


Pouch Cell Battery Polymer Case Cup Forming Machine Lithium Assembly Line Equipment

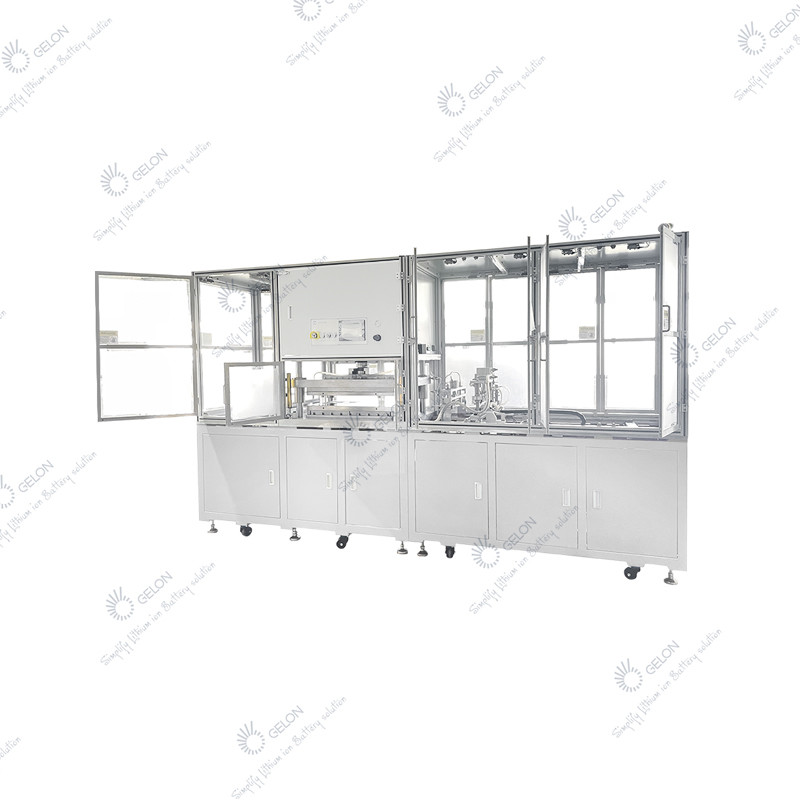

I.Equipment overview

1. Equipment function: The automatic roll to sheet cup forming machine is a machine specially designed for the aluminum-plastic film forming of lithium batteries. The forming molds made according to customer requirements , can realize the forming of aluminum-plastic film casings of lithium-ion batteries of different sizes, and have high safety performance , easy maintenance and other advantages.

2. Scope of applicability: The mold can also be designed with corresponding mechanical dimensions according to different specifications and different products provided by customers.

3. The working principle of the equipment: apply a high-precision forming pressurized cylinder to drive a set of precision forming molds. After reaching the lower mold, a pressurized space with a high precision can be formed. When the pressurizing work reaches the set range, the lower mold works to press and form.

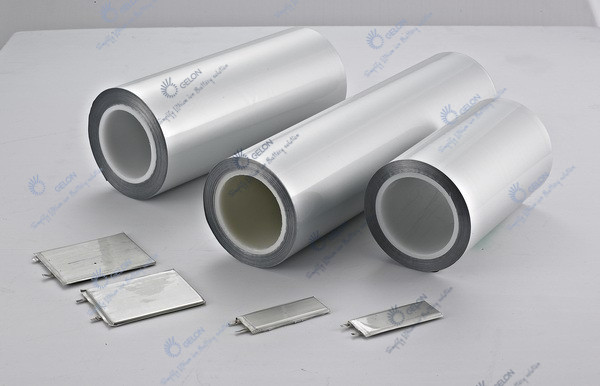

II.Process effect


III.Technical parameters of equipment

NameParameterRemark
Forming sizeMax.L60*W60mmCan be customized according to customer requirements
Forming pressureMax. 10TCan be adjusted

Punch depth


Max. 7mm

High tensile strength is related to the thickness of aluminum plastic film
Forming Dimension Tolerance±0.5mm
The thickness of Al plastic film0.1~ 0.2mm
Gas source0.5-0.8MPa compressed air
Power2500W
Equipment DimensionAbout L2000*W940*H1900mm
Equipment weightAbout 1.5T
