Standard Fasteners Stainless Steel Phillips Oval Head Machine Screws DIN7985

Product Description:

Phillips Oval Head Machine Screws

18-8 stainless steel pan head screws have good chemical resistance and may be mildly magnetic.

Length is measured from under the head.

For partially threaded screws thread length may vary from the minimum thread length published to fully threaded.

Passivated stainless steel screws provide added protection against oxidation and corrosion.

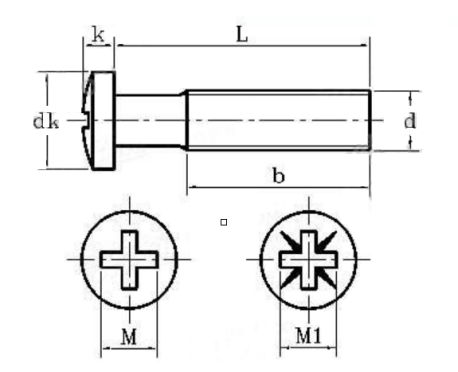

Drawing:

Cross recessed raised cheese head screws
DIN 7985-1990
d(mm)	P(mm)	dk(mm)		k(mm)			b(mm)	M	M1	Drive Size
		min	max	Nom	min	max	min
M1.6	0.35	2.9	3.2	1.3	1.18	1.42	15	1.8	1.8	O
M2	0.4	3.7	4	1.6	1.48	1.72	16	2.5	2.4	1
M2.5	0.45	4.7	5	2	1.88	2.12	18	2.7	2.6
M3	0.5	5.7	6	2.4	2.28	2.52	19	3.1	3
M3.5	0.6	6.64	7	2.7	2.58	2.82	20	4.2	4	2
M4	0.7	7.64	8	3.1	2.95	3.25	22	4.6	4.3
M5	0.8	9.64	10	3.8	3.65	3.95	25	5.3	5
M6	1	11.57	12	4.6	4.45	4.75	28	6.8	6.7	3
M8	1.25	15.57	16	6	5.85	6.15	34	9	8.8	4
M10	1.5	19.48	20	7.5	7.32	7.68	40	10.2	9.9

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time for this machine screw?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.

Jiangyin XiangGu Hardware Products Co., Ltd. is located in Wuxi City and close to Shanghai Port, with convenient transportation.

Our company handles all kinds of fasteners such as bolts, nuts and washers made of stainless steel, carbon steel and copper.

Xianggu Hardware is committed to integrating the superior supply chain system of various fastener products, focusing on the salesman's mastery of fastener expertise, providing fastener system solutions.

We are willing to become your partner with first-class product quality,first-class service level and competitive price.

Main products:

Stainless steel 18-8,A2-70, A4-70 and A4-80 Hex head bolts,Hex socket head bolts and nuts.

Carbon steel and Alloy steel Hex head cap screws,Hex socket head screws, machine screws, self-tapping screws, Hex flange bolts and Structural bolts with coating Hot-dip galvanized, Dacromet, Blue-white zinc,Yellow zinc.

Product Application Areas:

Our fasteners are widely used in automobiles, ships, wind energy, solar energy, boiler, electronic appliances, machinery and equipment, and construction engineering.
