NG LPG Catalytic Gas Heating Lamp Heater Infrared For Chicken Poultry Farming

Categories Infrared Brooder Heater
Brand Name: THD
Model Number: 2608
Certification: CE
Place of Origin: China
MOQ: 1unit
Price: USD to be negotiable
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000 piece/piece per month
Delivery Time: 5-8 working day
Packaging Details: shockproof carton packing
Model: THD2608
Size: 320*270*130mm
Weight: 2.7
Advantage: 95% convarate rate
Gas type: LPG, NG, propane
Lifespan: Above 11000hrs
Application: poultry house, livestock farm, patio, warehouse
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

NG LPG Catalytic Gas Heating Lamp Heater Infrared For Chicken Poultry Farming


NG/LPG Infrared Catalytic Gas Heating Lamp For Chicken Poultry Farming Equipments


Production Induction


Now based on IR Catalytic technology, we manufacture gas brooder for poultry house, with two ways to

ignition: manual ignition (THD2606/6806) and auto-ignition type (THD2608/6808).

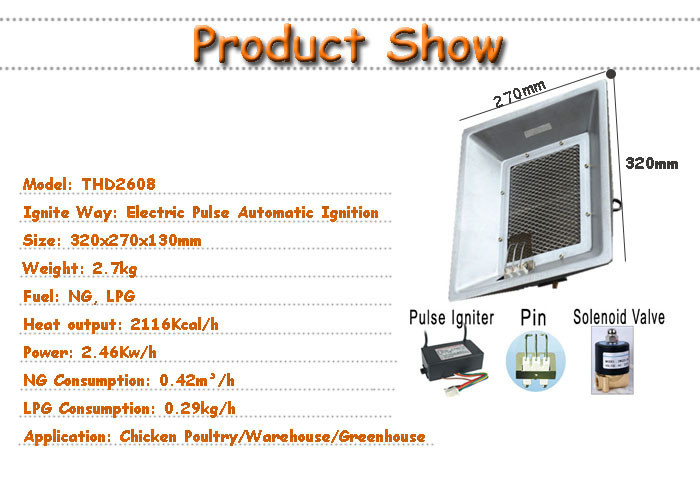

MODELN.W.DimensionGas ConsumptionHeat output
kg
THD2608 with auto ignition parts

2.7


Out over 320*270*1300.24m3/h 0.18kg/h2.46Kw/h 2116Kcal/h

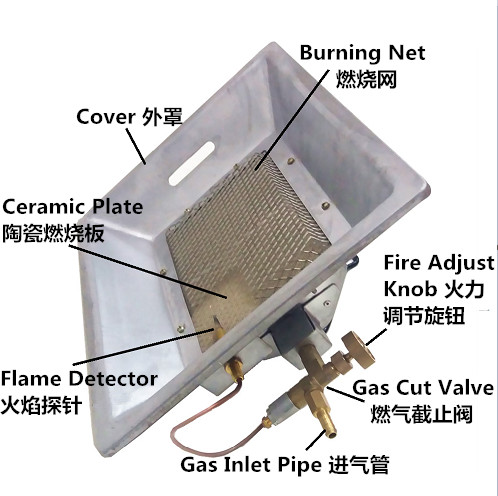

Material

Shell material: heat-resistant aluminum plate, light does not rust (on the market of some iron-based enamel coating, after the bump easily fall off and rust);

Burning surface: High quality cordierite honeycomb panels with catalyst coating

Operating Steps

A. Before use, please check the heater ceramic plate surface is intact, make the distance between probe

at burning net and the ceramic plate to maintain 2-5mm. Install the heater with diamter 6mm flexible

pipe, check whether the gas circuit leakage, adjust the pressure to the heater required. (Natural gas /

LPG working pressure 2800-5000 Pa, pls note biogas can’t be used for automatic type heater).

B. Open the main valve on the gas source and the switch on the temperature control cabinet. The igniter,

ignition needle and the solenoid valve automatically make ignition. Heater is working properly,

If heater works normally, green light on temperature control cabinet is always on,or else the red light

on.

C. Please close the main valve and gas source when don’t use.

Our Advantage

1. Energy saving can be as high as 20% per year.
2. Environment protection:CO≤80ppm,NOx≤10ppm,CHx≤50ppm.
3. THD2608 could keep the room constant temperature automatically when use thermostat.
4. It can cut off the gas automatic and protect the burner when the flameout.
5. Easy to be clean and fixed.
6. long usefull time:≥11000 hours.
7. Silent,light and compact when it is working.

Application

Poultry livestock heating:widely used in poultry heating,farrowing,nursery,grower-finisher,wean-to-finish,greenhouse etc.
