Digital Cable Wire Display Terminal Tensile Testing Machine OEM

Categories Tensile Testing Machines
Brand Name: GSKA
Model Number: Universal Tensile Testing Machine
Certification: CE SGS ROHS UL CE
Place of Origin: Dongguan China
MOQ: Negotiate
Price: Negotiate
Payment Terms: T/T, L/C
Supply Ability: 100 Set / Sets per Month
Delivery Time: 10-60days after confirmed payment or by contract stipulation
Packaging Details: Export package
Loading Method: Static Load
Working Environment: -10~50 Degree
Power Source: AC220V
Elongation Accuracy: 0.001mm
Effective test force range: 0.02/100~100%
Operation method: computer control
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Digital Cable Wire Display Terminal Tensile Testing Machine OEM

Digital Cable Wire Display Terminal Tensile Testing Machine OEM

Features:

This is a high-precision testing instrument for processing wire and cable tensile testing for wire harness manufacturing industry.

Processing wire and cable tensile testing for wire harness manufacturing industry

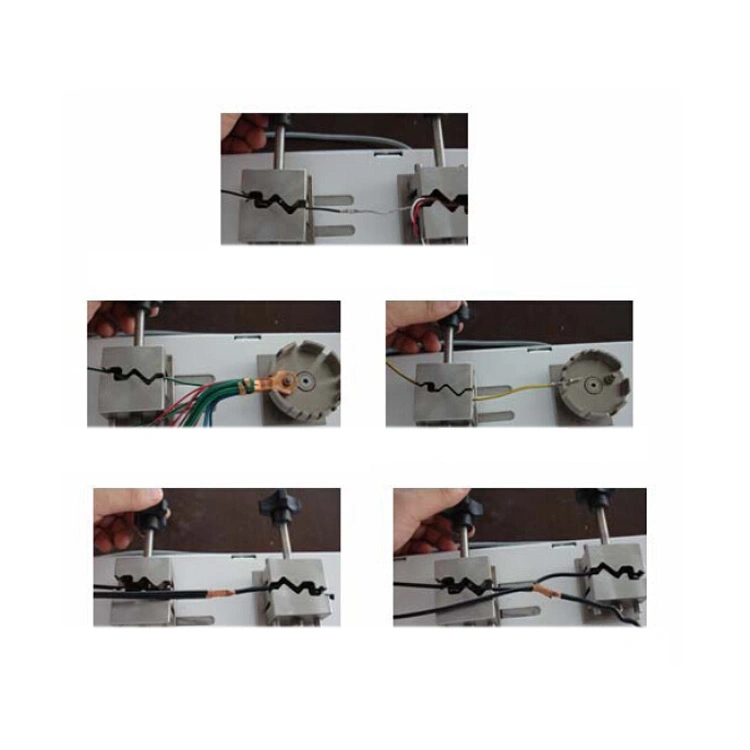

Special fast jig for wire harness, automatic test, force sensor adopts original NTS sensor imported from Japan

The loading device is driven by motor, and the load measurement adopts imported load sensor with high precision and stability

The control part adopts full digital microprocessor control, force value LCD display and expandable PC interface for convenient data processing

The wire tensile testing machine is compact, easy-to-use, accurate in control, high in measurement accuracy, and convenient for specimen mounting. It is the ideal equipment for wire harness manufacturers to ensure product quality


Product Features:


1. Servo Motor Control


2. The machine includes a thermal printer, which can automatically output the test results;

3. Units can be switched arbitrarily: Strength: kN/N/kgf/gf/t/lbf;

4. Displacement: mm/cm/in;

5. Automatic homing function;

6. The overload protection function can be set;

7. Various test methods such as fixed load and positioning displacement.

8. The height and angle of the control screen are adjustable, which can better match the usage habits of various groups of people.


Product description:


ModelGSKA-03
Measuring range0~1000(N) or 0~100(Kg)
Unit of measurekilogram(Kg)/Newton(N)
Display6-digit LCD display
Sensor accuracy+0.2% (full scale)
Power supply voltage220V,50Hz; 110V,60Hz
Working environment-10~50ºC
Maximum stroke43(mm)
Weight15kg
Dimensions42*25*25cm




Customer Support Services:


Ø Installation


Ø Training (Training customer employees)


Ø Calibration


Ø Preventative maintenance


Ø Replacement parts


Ø Assistance via phone or internet


Ø On-site diagnosis and repair/online diagnosis and repair

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
