| Categories | Transformer Core Cutting Machine |
|---|---|
| Brand Name: | STT |
| Model Number: | ZZ400-BK |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Delivery Time: | 90 days |
| Packaging Details: | seaworthy packing |
| Name: | center leg core cutting machine |
| Usage: | making center leg |
| Sheet thickness: | 0.23 ~ 0.35mm |
| Sheet width: | 40 ~ 400mm |
| Motor power: | 14kw |
| Cutting speed: | 180m/min |
| Machine color: | as requested |
| Warranty: | 12 months |
| Company Info. |
| Suzhou Tronsing Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Center Leg Making Core Cutting Machines Step Lap Transformer Core Cutting Machine
Description of transformer core cutting machine of ZZ400-BK
Transformer core cutting machine ZZ400-BK is one kind of step lap type core cutting machines to make center leg for transformer core. The transformer core cutting machine can cut and punch holes on the sheet as requested. The core cutting machine can cut the silicon steel with maximum width 400mm. The core cutting machine can make step lap center legs. With PLC based control system, the transformer core cutting machine features easy operation, automation and so on.
Main components of transformer core cutting machine ZZ400-BK
Main parameters of transformer core cutting machine ZZ400-BK
The following is the standard specifications of the transformer core cutting machine ZZ400-BK. However, the core cutting machine can also be manufactured as requested.
| Supply coil: | Silicon steel |
| Supply coil ID: | Φ500mm |
| Supply coil OD: | Φ1200mm maximum |
| Supply coil weight | 1500kg maximum |
| Cutting thickness: | 0.2 ~ 0.35mm |
| Cutting width (step lap): | 40 ~ 400mm (40 ~ 370mm) |
| Cutting length: | 150 ~ 9999mm |
| Feeding speed: | 180m/min |
| Punching diameter: | Φ10mm and Φ24mm |
| Power: | 14kw |

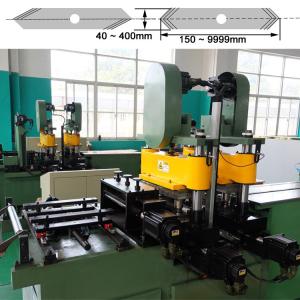

Fig 1: Transformer core cutting machine ZZ400-BK's full view

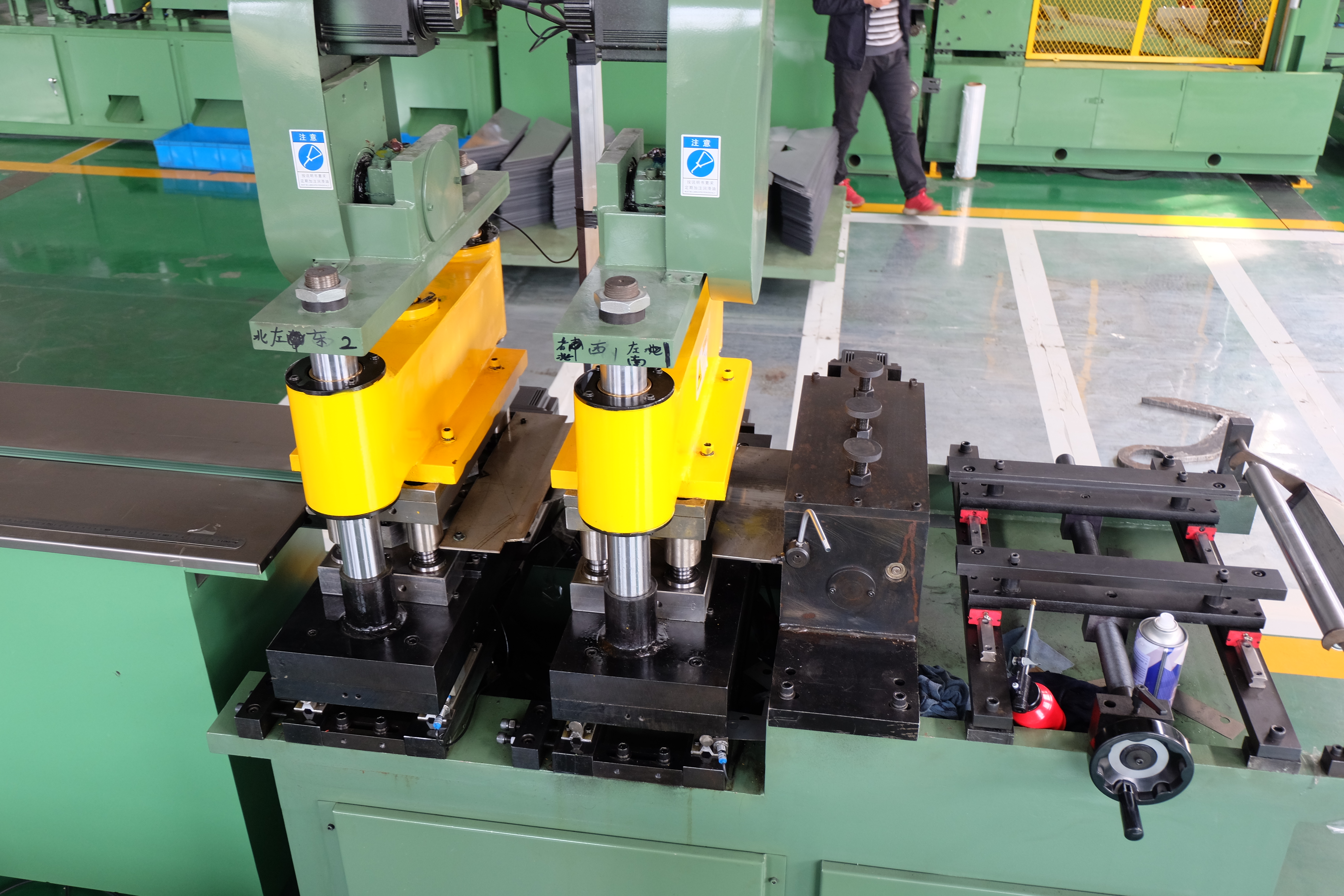

Fig 2: Transformer core cutting machine ZZ400-BK's cutter
|
