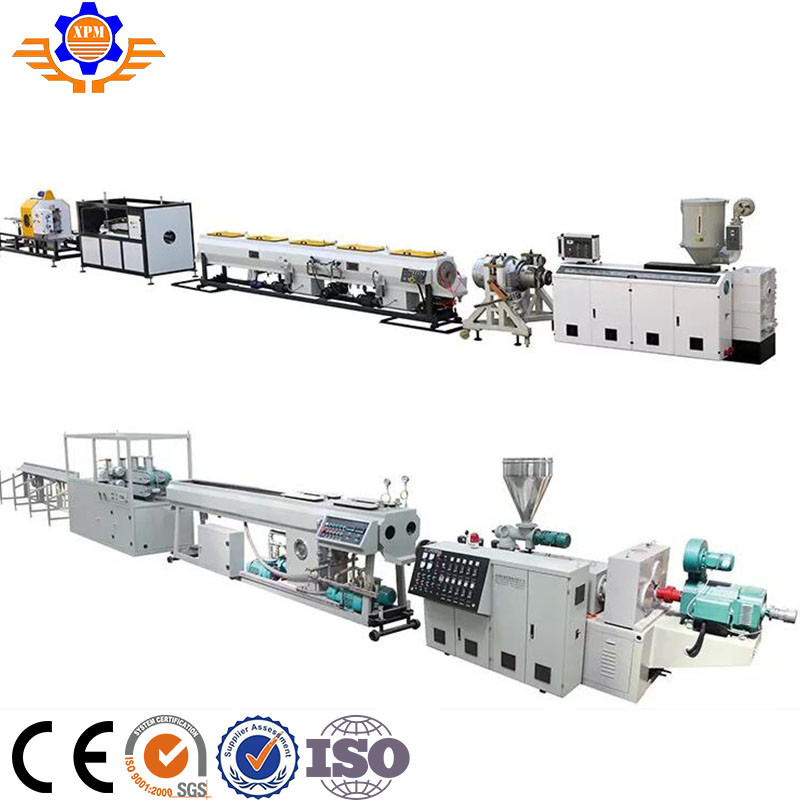

10m/Min Output Twin Screw PVC Pipe Extrusion Machine Double Wall Corrugated Pipe Machine

Categories PVC Pipe Extrusion Line
Brand Name: XPM
Model Number: 12-63MM
Certification: CE,ISO
Place of Origin: ZHANGJIAGANG,CHINA
MOQ: 1 SET
Price: 20,000-30,000 USD/SET
Payment Terms: L/C, T/T
Supply Ability: 20 SETS PER MONTH
Delivery Time: 45 WORKING DAYS
Packaging Details: WOODEN CASE PACKING AND PLASTIC FILM
Contactor Brand: Siemens
Raw Material: PVC
Color: Customized
Screw: Conical Twin Screw
Warranty: 1 Year
Inverter: ABB
Voltage: 220V,380V Or Customized
Application: Plastic Pipe
Output: 40-60Kg/H
Motor Power: 25-440Kw
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

10m/Min Output Twin Screw PVC Pipe Extrusion Machine Double Wall Corrugated Pipe Machine

10m/Min Output Twin Screw PVC Pipe Extrusion Machine Double Wall Corrugated Pipe Machine


Advantages of PVC pipes:


1. Excellent in chemical corrosion, no rust;


2. With self-extinguishing and flame retardant;


3. Excellent in anti-aging, can be used 20years to 50 years between the temperature from subzero 15 to


60 degrees Celsius;


4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of


43.7% higher than the cast iron pipe;


5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 /


2 to the steel pipes, low labor intensity, short duration;


6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, a breakdown voltage


23 to 2kv/mm;


7. The toughness of PVC pipe is low, the linear expansion coefficient is high, operating temperature range


is narrow.


Application of PVC pipes:


1. Water supply, drainage pipelines in building;


2. Rainwater drainage pipelines in building;


3. Electrical wiring pipe in building;


4. Air conditioning condensate water systems.


5.drainage liquid gas and oil transportation


Water supply PVC Pipe Extrusion Line drainage liquid gas and oil transportation


1. Special structure design of screw and dies and convenience in changing mould blocks solve


the problem of easy-worn of screw and barral, as well as the difficulty in forming of plastic resin.

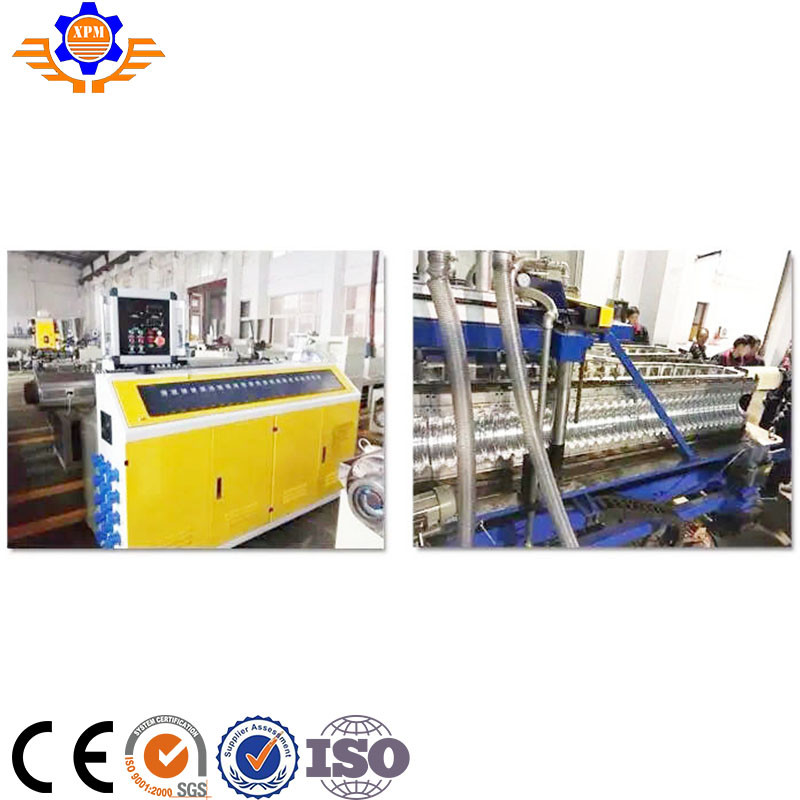

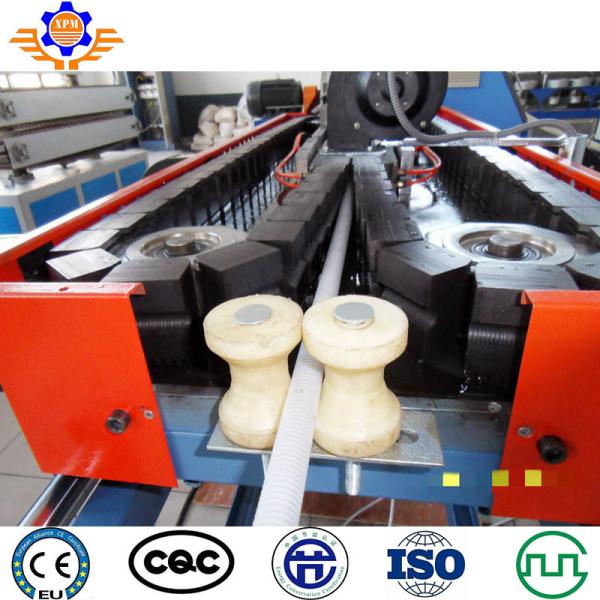

2. Corrugator adopts closed water cooling structure, closed forming blocks chain, and special design


of rail, which will make all blocks matching correctly, running stably . You even couldn’t see the


connecting line on the surface of pipe. Cooling water is cycling inside the corrugator, it will make the


cooling speed fast, so the production speed of pipe will be raised highly .


Meanwhile, the corrugator adopts building blocks design, we can use same basis structure but


different forming length of corrugator. The longer forming length of corrugator, the more output of


pipe . We can make different forming length corrugator according to different cusotmers’ needs.


Technical Parameter of PVC single wall corrugated pipe extrusion line


Extruder ModelSJSZ-51/105SJSZ-51/105
Quantity of mold blocks7050
Total Power42KW40KW
Pipe sizeφ16~50φ16~50
Max. speed20m/min17m/min
