| Categories | Nvidia AGX Xavier |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C9-xavier |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | USD289-USD299\SET |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| Delivery Time: | 15-30 work days |
| NAME: | PLINK MIPI Embedded Board Jetson Nvidia Agx Xavier Module Carrier Board |
| Key word: | PLINK MIPI Embedded Board Jetson Nvidia Agx Xavier Module Carrier Board |
| Module: | NVIDIA Jetson AGX Xavier |
| USB: | 3* |
| USB Type-C: | 1* |
| MiniPCIe: | 2* |
| 3.3V TTL: | 2* |
| M.2 Key M: | 1* |
| Power Supply: | DC +12V |
| Tempreture: | -40~+85℃ |
| Board Size: | 136 mm*100 mm*20 mm |
| Weight: | 112g |

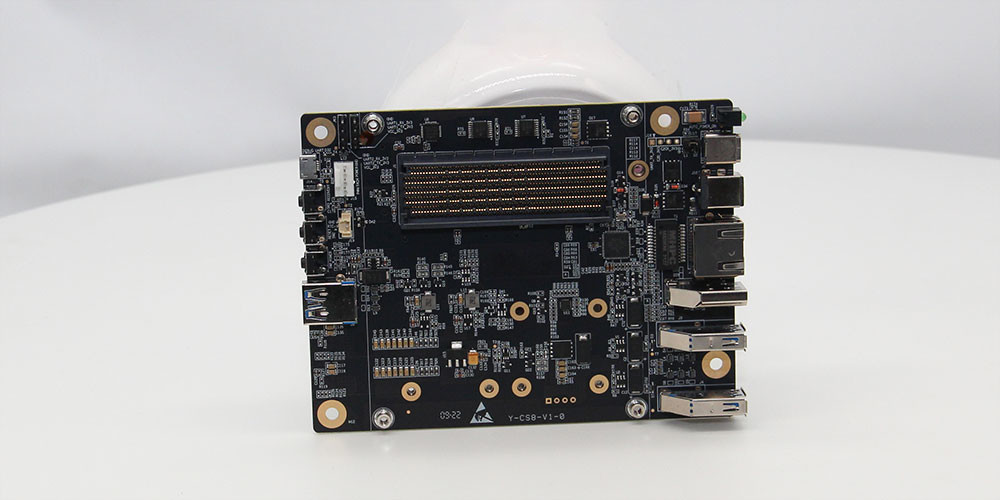

PLINK MIPI Embedded Board Jetson Nvidia Agx Xavier Module Carrier Board
NVIDIA Jetson AGX Xavier Module (Carrier Board
Y-C9-Xavier
The Y-C9-DEV is a development board and it based on NVIDIA Jetson AGX Xavier module, the module support for both the MIPI Camera Serial Interface (CSI) and Sony's Scalable Low Voltage Signaling with Embedded Clock (SLVS-EC) interface. Both interfaces work with the Video Input (VI) block to capture an image from a sensor, where NVCSI/SLVS-EC are sources of pixel data to VI. Image capture interfaces work in streaming mode while VI captures the required frames using a single-shot mode of operation. All sync point generation for software is handled at VI; the delay between image capture and VI is negligible in software terms. Image capture interfaces do not have a direct memory port, instead they send the pixel data to memory through VI.
Camera data input interfaces supported: CSI-2 and SLVS-EC v1.2; pixels are already decoded and aligned by the external CSI or SLVS-EC units.
Product Name | Y-C9-Xavier |
| Module | NVIDIA Jetson AGX Xavier |
| AI Performance | 32 TOPS |
| Memory | 32GB 256-bit LPDDR4x 136.5GB/s |
| Storage | 32GB eMMC 5.1 |
| GPU | NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores |
| CPU | 8-core NVIDIA Carmel Armv8.2 64-bit CPU 8MB L2 + 4MB L3 |
| DL Accelerator | 2x NVDLA |
| Vision Accelerator | 2x PVA |
| Networking | 10/100/1000 BASE-T Ethernet |
| Input Power | DC +12V |
| Port | 2* miniPCIE |
| 1* M.2 Key M | |
| 2* 3.3V TTL | |
| USB Connector | 3* USB 3.0 |
| 1* USB Type-C | |
| Display | HDMI |
| Temperature Range | -40°C ~ 85°C |
| Size | 136mm × 100mm ×20mm |
| Weight | 112g |
|
