| Brand Name: | PLINK |
| Model Number: | Y-C6-DEV-NX16G |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | USD 625-USD650\SET |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Delivery Time: | 15-30 work days |
| Packaging Details: | 35X28X24cm |
| NAME: | ODM Nvidia Jetson Xavier NX Developer Kit For Healthcare Retail Construction |
| Keyword: | ODM Nvidia Jetson Xavier NX Developer Kit For Healthcare Retail Construction |
| Module: | NVIDIA Jetson Xavier NX |
| RJ45: | *1 |
| Memory: | 16 GB 128-bit LPDDR4x 59.7GB/s |
| Storage: | 16 GB eMMC 5.1 |
| AI Performance: | 21 TOPS |
| Power adapter: | DC +12V 5A |
| Single package size: | 120mm×80mm×35mm |
| Working temperature: | -25~+80℃ |
ODM Nvidia Jetson Xavier NX Developer Kit For Healthcare Retail
Construction
NVIDIA Xavier NX Module

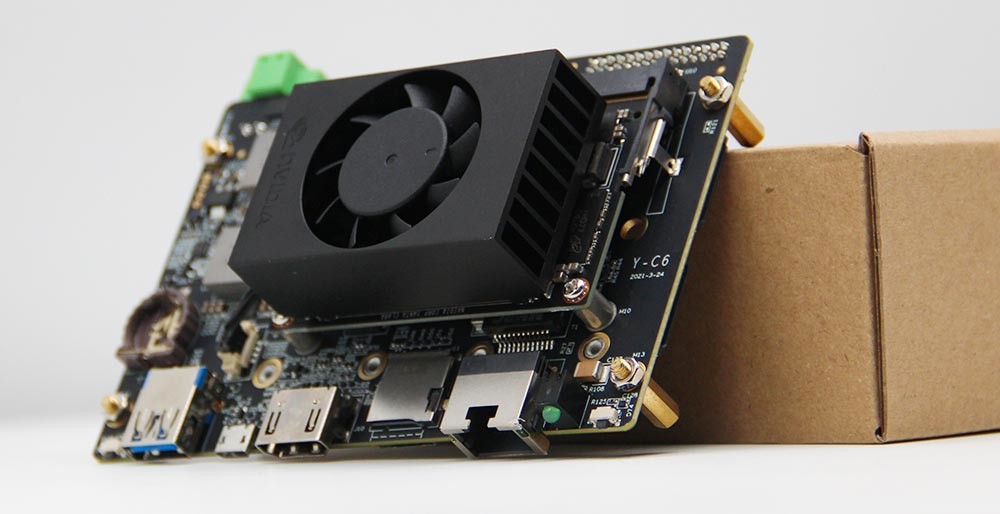

PLINK Jetson Xavier NX developer kit Y-C6-DEV-NX16G
The Y-C6-DEV-NX16G is by the NVIDIA Jetson Xavier NX module, and it delivers up to 21 TOPS, You get 48 Tensor Cores, 6 Carmel ARM CPUs, the performance of 384 NVIDIA CUDA Cores,
End-to-end lossless compression,16 GB eMMC 5.1 Flash Storage,16 GB 128-bit LPDDR4x DRAM,and 2 NVIDIA Deep Learning Accelerators (NVDLA) engines.Two multi-mode (eDP/DP/HDMI) Serial Output Resources (SOR) eDP 1.4a | DP 1.4 | HDMI 2.0a/b,Maximum Resolution (eDP/DP/HDMI): (up to) 3840x2160 at 60 Hz (up to 36 bpp)
Jetson Xavier NX 16GB delivers up to 21 TOPS for running modern AI
workloads, consumes as little as 10 watts of power, and has a
compact form factor smaller than a credit card.
NVIDIA Jetson Xavier NX 16GB Module Specifications
| AI Performance | 21 TOPS |
| GPU | 384-core NVIDIA Volta™architecture GPU with 48 Tensor Cores |
| GPU Max Frequency | 1100 MHz |
| CPU | 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| CPU Max Frequency | 1.9 GHz |
| Memory | 16GB 128-bitLPDDR4x 59.7GB/s |
| Storage | 16GB eMMC 5.1 |
| Video Encode | 2x 4K60 (H.265) 4x 4K30 (H.265) 10x 1080p60 (H.265) 22x 1080p30 (H.265) |
| Video Decode | 2x 8K30 (H.265) 6x 4K60 (H.265) 12x 4K30 (H.265) 22x 1080p60 (H.265) 44x 1080p30 (H.265) |
| PCIe | 1 x4 (PCIe Gen4) + 1 x1 (PCIe Gen3) |
| USB | 1x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
| Display | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
| Other I/O | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, PWM, DMIC & DSPK, GPIOs |
Y-C6-DEV Specifications
| Support native system | |
| 3.3V SPI | 1 |
| USB 3.1 Type-A | AC~ DC /220V to +12V 5A |
| Nano SIM | 1 |
| RS-232 | 1 |
| 2 Lane MIPI | 2 |
| 3.3V Debug(UART) | 1 |
| micro SD | 1 |
| 3.3V GPIO | 3 |
| HDMI 2.0 | 1 |
| 3.3V I2C | 2 |
| MiniPCIe | 2 |
| Micro USB | 1 |
| Temperature | -25~+80°C |
| 3.3V GPO | 2 |
| CAN | 1 |
| CR1220 RTC Battery | 1 |
| Adapter | 1 |
| Size | 120mm*80mm*35mm |
| (10/100/1000BASE-T) RJ45 | 1 |
| 30-pin2.0mm Multifunctional interface design | 1 |
Anti falling off interface design | |
| Power onself start | |
Support the official system without changing the kernel
|
