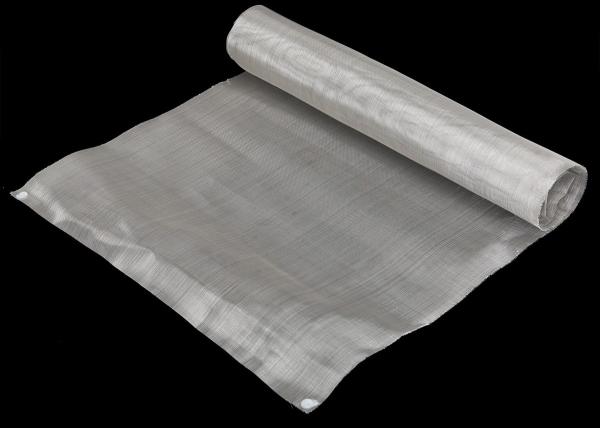

SUS 304 stainless steel wire mesh 200 mesh count for filter
Description of stainless steel wire mesh:
Stainless steel meshes are classified according to types:
1. Stainless steel plain weave mesh.
2. Stainless steel twill mesh.
3. Stainless steel punching net.
4. Stainless steel crimped wire mesh.
5. Stainless steel metal mesh.
6. Stainless steel welded wire mesh.
7. Stainless steel hexagonal net.
Features of stainless steel wire mesh:
Application of stainless steel wire mesh :
Specification of the stainless steel wire mesh:
Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight (kg/Square meter) | ||
Inch | MM | Inch | MM | |||
1*1 | 0.08 | 2.03 | 0.92 | 23.37 | 92 | 2 |
2*2 | 0.063 | 1.6 | 0.437 | 11.1 | 87.4 | 2.5 |
3*3 | 0.054 | 1.37 | 0.279 | 7.09 | 83.8 | 2.7 |
4*4 | 0.047 | 1.19 | 0.203 | 5.16 | 81.2 | 2.7 |
5*5 | 0.041 | 1.04 | 0.159 | 4.04 | 79.5 | 2.6 |
10*10 | 0.025 | 0.64 | 0.075 | 1.91 | 74.9 | 2 |
12*12 | 0.02 | 0.508 | 0.063 | 1.6 | 75.9 | 1.5 |
14*14 | 0.02 | 0.508 | 0.051 | 1.3 | 71.9 | 1.8 |
16*16 | 0.018 | 0.457 | 0.445 | 1.13 | 71.2 | 1.6 |
18*18 | 0.017 | 0.432 | 0.386 | 0.98 | 69.4 | 1.6 |
20*20 | 0.02 | 0.24 | 0.03 | 0.76 | 76 | 0.56 |
20*20 | 0.016 | 0.33 | 0.034 | 0.86 | 72.2 | 1.1 |
30*30 | 0.12 | 0.305 | 0.213 | 0.54 | 63.9 | 1.4 |
30*30 | 0.0094 | 0.24 | 0.243 | 0.62 | 72.1 | 0.84 |
40*40 | 0.01 | 0.254 | 0.015 | 0.38 | 59.9 | 1.3 |
50*50 | 0.0055 | 0.14 | 0.0145 | 0.368 | 72.4 | 0.48 |
60*60 | 0.0047 | 0.12 | 0.012 | 0.303 | 71.6 | 0.42 |
60*60 | 0.0059 | 0.15 | 0.0107 | 0.273 | 64.5 | 0.65 |
80*80 | 0.0055 | 0.14 | 0.0069 | 0.117 | 45.5 | 0.76 |
100*100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 55.1 | 0.59 |
100*100 | 0.004 | 0.102 | 0.006 | 0.152 | 59.8 | 0.49 |
120*120 | 0.0028 | 0.07 | 0.0057 | 0.147 | 67.7 | 0.29 |
150*150 | 0.0024 | 0.06 | 0.0043 | 0.11 | 64.7 | 0.26 |
150*150 | 0.0028 | 0.07 | 0.0039 | 0.1 | 58.8 | 0.38 |
165*165 | 0.0019 | 0.05 | 0.0041 | 0.104 | 67.5 | 0.2 |
180*180 | 0.0019 | 0.05 | 0.0035 | 0.091 | 64.5 | 0.22 |
180*180 | 0.0024 | 0.06 | 0.0031 | 0.081 | 57.4 | 0.32 |
200*200 | 0.0019 | 0.05 | 0.003 | 0.077 | 60.6 | 0.24 |
200*200 | 0.0024 | 0.06 | 0.0026 | 0.067 | 52.7 | 0.35 |
250*250 | 0.0016 | 0.04 | 0.0024 | 0.0616 | 60.6 | 0.2 |
270*270 | 0.0016 | 0.04 | 0.0021 | 0.054 | 57.4 | 0.21 |
300*300 | 0.0016 | 0.04 | 0.0018 | 0.045 | 53.5 | 0.23 |
325*325 | 0.0014 | 0.035 | 0.0017 | 0.0432 | 55.3 | 0.2 |
400*400 | 0.0012 | 0.03 | 0.0013 | 0.0335 | 52.7 | 0.18 |
500*500 | 0.0009 | 0.025 | 0.001 | 0.0258 | 50.7 | 0.15 |
635*635 | 0.0007 | 0.018 | 0.0008 | 0.022 | 55 | 0.1 |
![]() |
