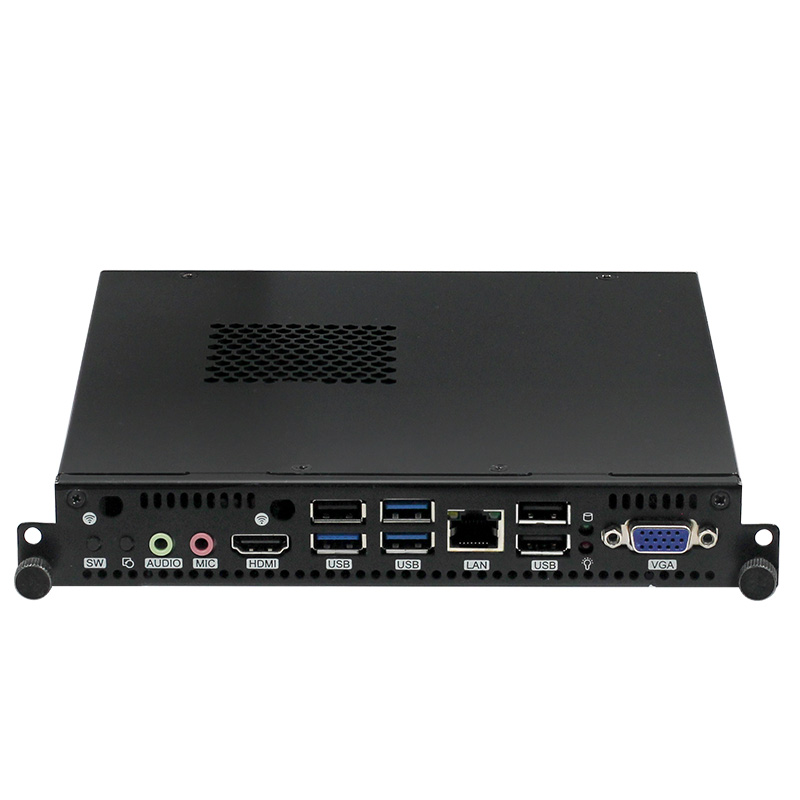

LGA1151 Intel® 6th 7th i3 i5 i7 industrial OPS pc H110 H170 Mini OPS PC for digital signage interactive whiteboard

Key features

Support LGA1151 and Intel® 6th and 7th i3-i5-i7/Pentium/Celeron CPU

H110/H170 high speed Chipset

1 *DDR4 SODIMM 260 Socket

Intel HD Graphics

Onboard 1*Gigabit Ethernet Port

1* standard SATAIII interface

1*NGFF Port

1*HDMI

1*VGA

4*USB3.0

2*USB2.0

Support OPS-C+ expansion

Support WIFI

Size: 195*180*30mm

Specifications

Processor	CPU	Support LGA1151 and Intel® 6th and 7th i3-i5-i7/Pentium/Celeron CPU
	CPU package	LGA1151
	chipset	H110/H170 high speed Chipset
	BIOS	EFI BIOS
Memory	Technology Architecture	Single channel DDR4 2133/2400MHz
Memory	socket	1 *DDR4 SODIMM 260 Socket
Video	Graphic controller	Intel HD Graphics 610 (G4560 Graphic card);Graphics card model is related to CPU
	VGA	VGA support max resolution:2048x1536
	HDMI	support max resolution (HDMI1.4)4096*2304 support 4k display
I/O interface	Port	1LAN 1HDMI 1VGA 1COM 1DC 1MIC-IN 1LINE-OUT 4USB3.0 2USB2.0 2WIFI antenna Ports
OPS straight card interface		1LINE-OUT 1HDMI or1DP (pick one from two ) 1DC 3USB2.0 1 switch button
Internet	controller	1*RTL8111E gigabit Lan Port
Expansion	Mini-PCle	1*Mini-PCIe slot for PCIe and USB devices
Audio	controller	Realtek HD ALC662 audio decoding (left and right channel + microphone)
storage	SATA	1* standard SATAIII interface, maximum transmission rate 6Gb/s 1*SATA_HDD Port
storage	NGFF	1*NGFF Port
Hardware control	Watchdog timer	0-255 seconds to provide watchdog routines
	Cooler	Aluminum heat sink(fan or fanless)
Power type	Power type	Single DC Power Supply, DC12-19V,+/-5%
Working Environment	Working temperature	-20℃ ~ +60℃
	Storage temperature	-40℃ ~ +85℃
	Operating humidity	0% to 90% relative humidity, no condensation
	Storage humidity	0% to 90% relative humidity, no condensation
Dimension	size	19518030mm
