| Categories | Industrial Tablet PC |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | VGS-IT10N3 |
| Place of Origin: | Shenzhen China |
| MOQ: | 1 unit |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Delivery Time: | 3 to 10 work days |
| Packaging Details: | Carton |
| Screen size: | 10.1 inch |
| CPU: | Intel Atom x5-Z8350 Quad-Core |
| RAM + storage: | 4GB RAM+ 64GB eMMC |

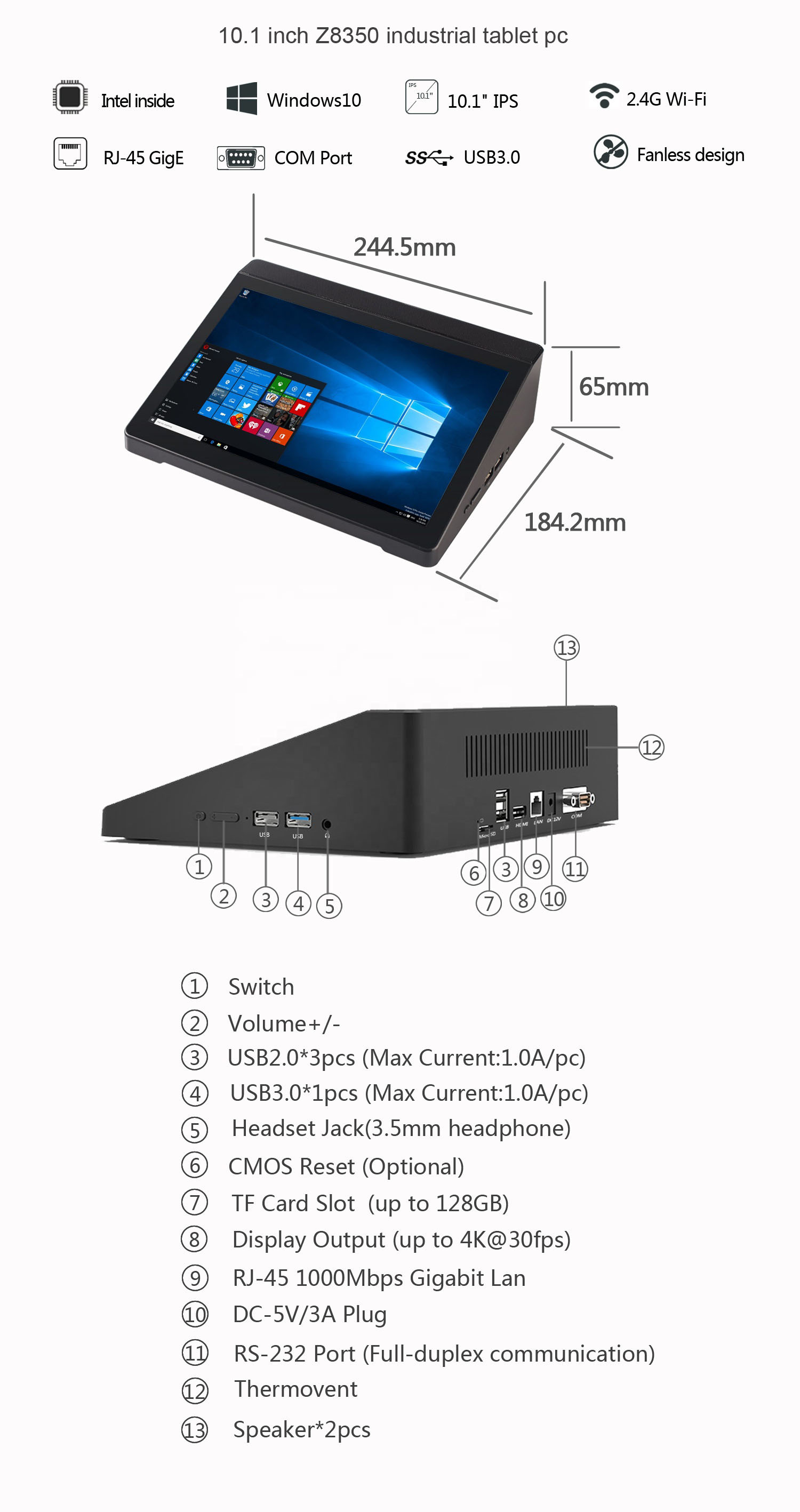

| size: | 244 x 184.2 x 65mm |
| Resolution: | 1280×800 (IPS + 250ANSI) |
| serial Port: | 1*DB9 (RS232) |
| WIFI: | WIFI 802.11b/g/n 2.4G |
| Bluetooth: | Bluetooth4.0 |
| Network: | 1* RJ45 Gigabit Lan |
| Screen: | 10.1 inch IPS G+G capacitive multi touch screen |
10.1 embedded fanless mini pc RS232 DB9 port CPU Z8350 Quad core industrial computer
Features
Intel Atom x5-Z8350 Quad-Core
Mini size 10.1inch, 0.9kg net weight, portable industrial p
4GB+64GB storage
1* COM
3*USB2.0, 1*USB3.0
1* RJ45 gigabit LAN
Support WIFI Bluetooth
Low power, 5V, Power consumption: 360watt/day, 10800watt/month
10.1 inch IPS G+G capacitive multi touch screen
Fanless design, to prevent the dust going into the machine
Wide usage, POS, education, 3D printing, video meeting, industrial control, etc
Specifications
| System Physical Standard Configuration: | ||
| Type | Details | Descriptions |
| Product Form | Form Factor | 10.1" All-in-one PC |
| Dimensions | 244 x 184.2 x 65mm | |
| Weight | 0.9KG | |
| LCD | Screen Size | 10.1" |
| Screen Resolution | 1280×800 (IPS + 250ANSI) | |
| TP | Touch Module | G+G Multi-Touch |
| Battery | Type | / |
| System Hardware Configuration: | ||
| Type | Details | Descriptions |
| CPU | Type | Intel Atom x5-Z8350 Quad-Core |
| Speed | 1.44GHz ~ 1.92GHz | |
| GPU | Type | Intel HD Graphics Gen8 |
| Memory | Capacity | 4GB(Standard) / 2GB(Optional,Base on MOQ order) |
| Storage | eMMC | 64GB(Standard) / 32GB(Optional,Base on MOQ order) |
| SSD | / | |
| SATA 2.5“ HDD | / | |
| Speaker | Built-in | 8Ω/1W |
| Micphone | Built-in | / |
| G-sensor | Built-in | Yes |
| Network Connections: | ||
| Type | Details | Descriptions |
| WIFI | WIFI Module: Realtek 8723BS | WIFI 802.11b/g/n 2.4G |
| Bluetooth | BT Module: Realtek 8723BS | Bluetooth4.0 |
| Ethernet Network | RJ-45 | 100/1000Mbps Gigabit Lan |
| Interface Configuration: | ||
| Type | Details | Descriptions |
| USB Interface | USB3.0 | ×1pc |
| USB2.0 | ×3pc | |
| SD / TF Card reader | TF Card reader | ×1pc (up to 128GB) |
| Audio Jack | 3.5mm headphone (Output only) | ×1pc |
| HDMI | HDMI 1.4 | ×1pc |
| Video output through HDMI | Up to 4K | |
| COM Port | DB9 (RS232) | ×1pc (External small PCBA) |
| Button Switch: | ||
| Type | Details | Descriptions |
| Power | On/Off | ×1pc |
| Volume | Down/UP | ×1pc |
| CMOS Reset | Reset by Short Press | / |
| Main Accessories: | ||
| Type | Details | Descriptions |
| Power adapter | DC 5V/3A | ×1pc |
| User's Manual | User's Manual | ×1pc |
| Software Configuration: | ||
| Type | Details | Descriptions |
| Power on Function | By Power Button or Auto Power on | Optional |
| Wake up on Lan | Wake up on Lan by RJ45 | / |
| PXE | Preboot Execution Environment | / |
| Operating System | Windows 10 | Optional |
| Linux | Test by end user | |
| Environment: | ||
| Temperature | Operation Temperature | -10oC ~ 50oC (1080p or 4K local video display) |
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing | |
|
