Apollo Lake Atom E3940 NANO Fanless Itx Motherboard RJ45 COM 2 LAN LVDS Display

Notice:

When you inquiry , you can choose the following Model :

NANO-P1222VHL-AP-J3455 , Integrated Intel Celeron® Processor Apollo Lake J3455 quad core 4 threads 1.5~2.3Ghz

NANO-P1222VHL-AP-J4205 , Integrated Intel Pentium® Processor Apollo Lake J4205 quad core 4 threads 1.5~2.6Ghz

NANO-P1222VHL-AP-E3940 , Integrated Intel Atom® Processor Apollo Lake E3940 quad core 4 threads 1.6~1.8Ghz

NANO-P1222VHL-AP-N3350 , Integrated Intel Celeron® Processor Apollo Lake N3350 dual core 2 threads 1.1~2.4Ghz

NANO-P1222VHL-AP-N3450 , Integrated Intel Celeron® Processor Apollo Lake N3450 quad core 4 threads 1.1~2.2Ghz

NANO-P1222VHL-AP-N4200 , Integrated Intel Pentium® Processor Apollo Lake N4200 quad core 4 threads 1.1~2.5Ghz

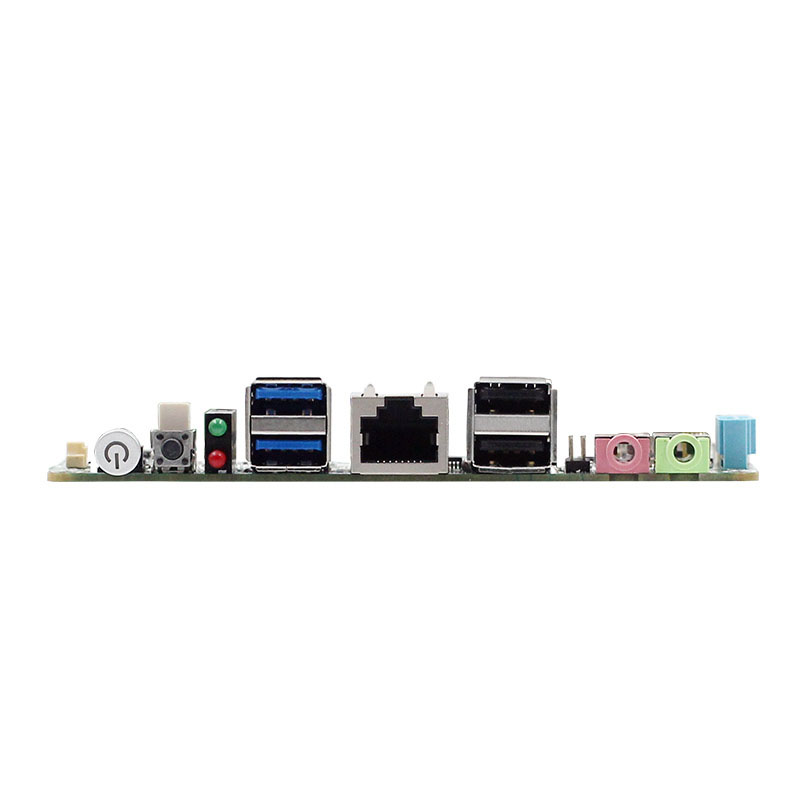

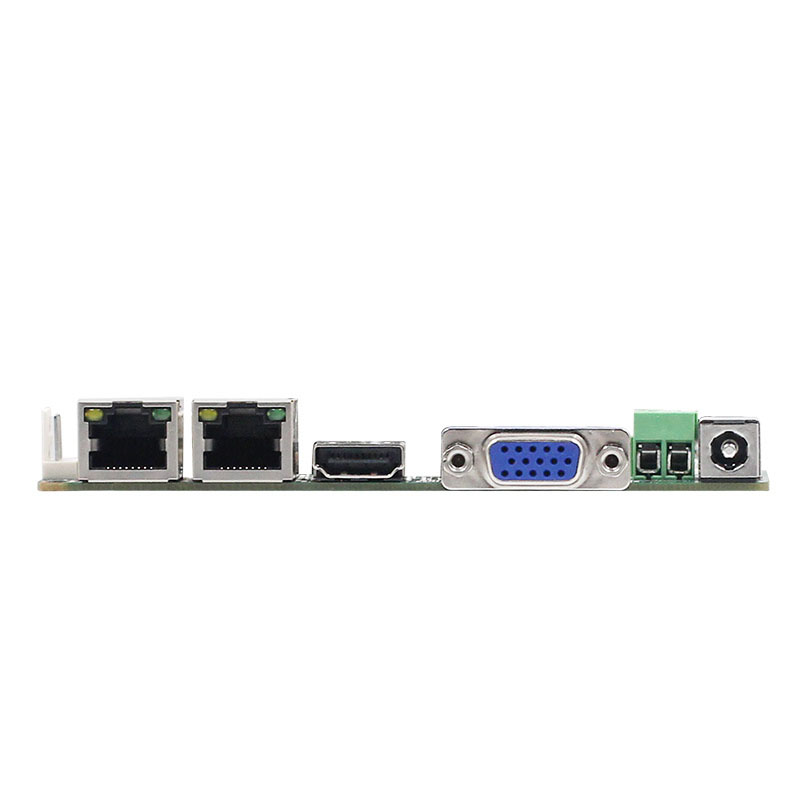

Intel® Apollo Lake J3455 J4205 N3350 N3450 N4200 E3940 NANO itx fanless mainboard RJ45 COM 2 LAN industrial motherboard EDP display

Key features

Integrated Intel® Apollo Lake J3455 /J4205 /N3350 /N3450 /N4200 /E3940

Single channel DDR3 1066/1333/1600/1866MHz up to 8GB

Intel® HD Graphics 505

Support EDP / VGA / HDMI Synchronous or asynchronous display

2*USB2.0

2*USB3.0

1*COM Port(RJ45 interface)

1* standard SATAIII

1 * M-SATA Scoket,

Onboard EMMC 32/64/128G (optional)

Single input DC power supply, DC12-19V

size 120 * 120 mm

Specifications

About RMA

1--Warranty 1 year

2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.

3--Buyers are responsible for return to china freight cost .

4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.

5--Please contact us firstly before returning defective goods by email.

Shenzhen Vegashine Technology Co., Limited specialize in manufacturing and exporting industrial computer, industrial motherboard. The main production ranges included Rugged tablet PC, Network security firewall PC, industrial panel PC, embedded industrial computer, fanless mini PC, Multi LAN motherboard, ISA slot motherboard, Mini-itx motherboard, 3.5 inch embedded motherobard and so on.

Our products are widely used in the following fields:
Industry product auto- control
Automatic control equipment
Artificial intelligence
Internet of Things
Business intelligence terminal
The intelligent Queuing machine
Smart medicine
Bank ATM machine
Self service kiosk
Shopping malls POS
Bill payment Kiosk
School education
Network security management

With excellent quality and efficient technical and logistic service support, Vegashine Technology have won good reputation in oversea market. Products are exported to more than 100 countries and regions in the world.
Customer satisfaction is our greatest goals ! We sincerely wish you to be our esteemed partner !
