DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength

Categories Bus Bar Isolators
Brand Name: DOWE
Model Number: EN2625
Certification: SGS CE REACH
Place of Origin: China(Mainland),Zhejiang
MOQ: 2000pcs
Price: USD0.16-0.99pcs
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000pcs per week
Delivery Time: 7days
Packaging Details: 1000PCS/CTN
Product name: Hexagonal insulator
Type: EN insulator
Sample: 2pcs free
voltage: 660V-4500V
Dimension: 26X25
Torgue strength(FT LBS): ≥8
Material: DMC/BMC
Operating Temperature: 30℃~120℃
Application: electrical application
Color: customized
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

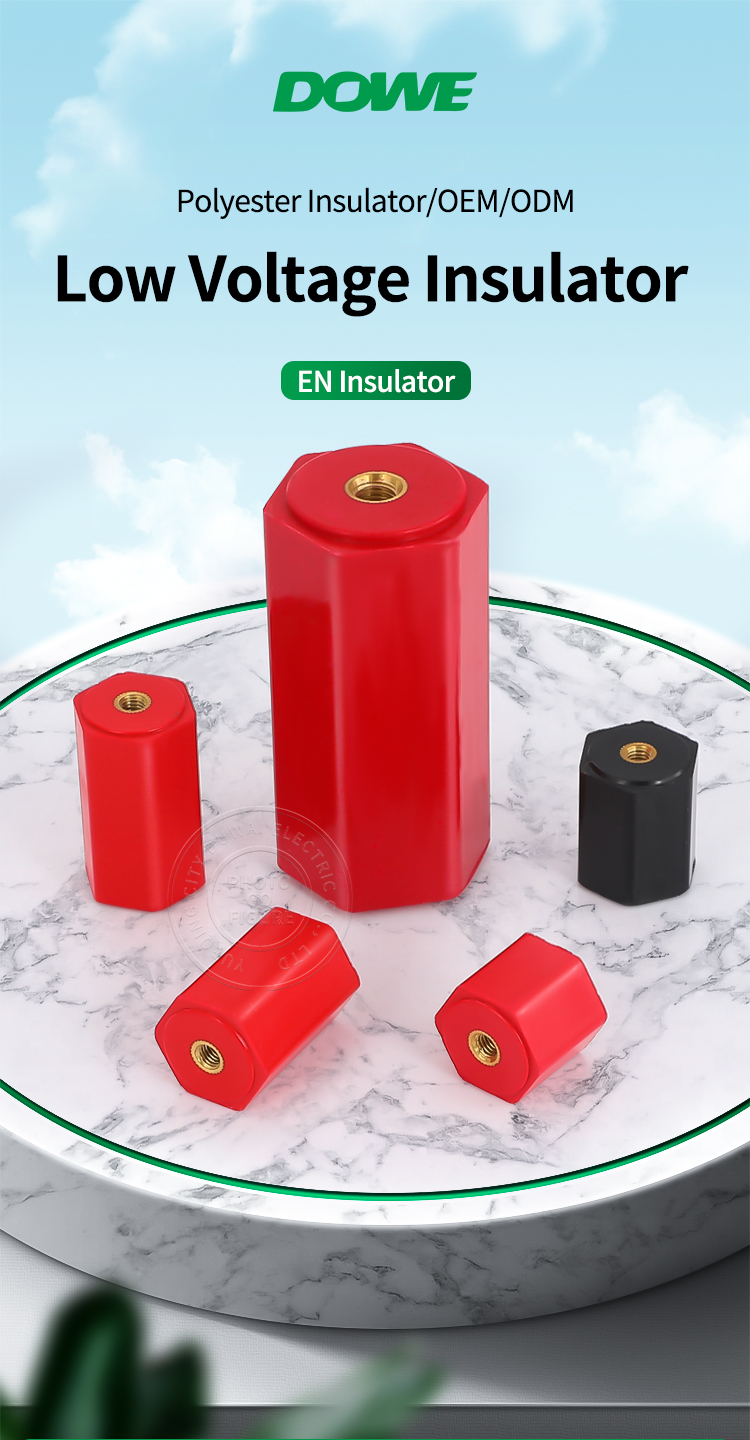

DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength

DUWAI DMC Fibreglass Busbar Isolator EN Polyester Standoff Insulators With Screw High-Strength Busbar Insulator

● Product:

- EN26-25
- Height: 25 mm
- Material: DMC
- Nut size: M6
- Nut material:copper
- Screw hole depth:13.5 mm
- Strength: axial tensile 4000N, bending 5000N, tightening torque 20N/ m
- Insulation resistance >1500MΩ
- Electrical properties: Operating voltage:1500V, pulse voltage:10000V
- Leakage current <1mA at 2000V operating voltage
- Minimum arc distance: 15 (mm)


● Package:

- EN26X25 - 2pcs

● Description:

- EN-25 with screw High-strength insulator,complex insulators.
- The product is generally cylindrical, with one screw hole at each end and a screw to fix the line that needs to be connected.
- This is a insulators set, including two pieces,and with corresponding screws.
- Widely used in high low power distribution cabinet.For power distribution, transmission, fixing copperor alumnium busbar, etc, play the role of insulation and connection.
- Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance.Excellent texture and good workmanship are your choice.
ModelDiameterHeightScrew
EN252625M6
EN302630M6
EN322632M6
EN402640M6
EN10045100M10/M12
EN11045110M10/M12
EN12045120M10/M12
