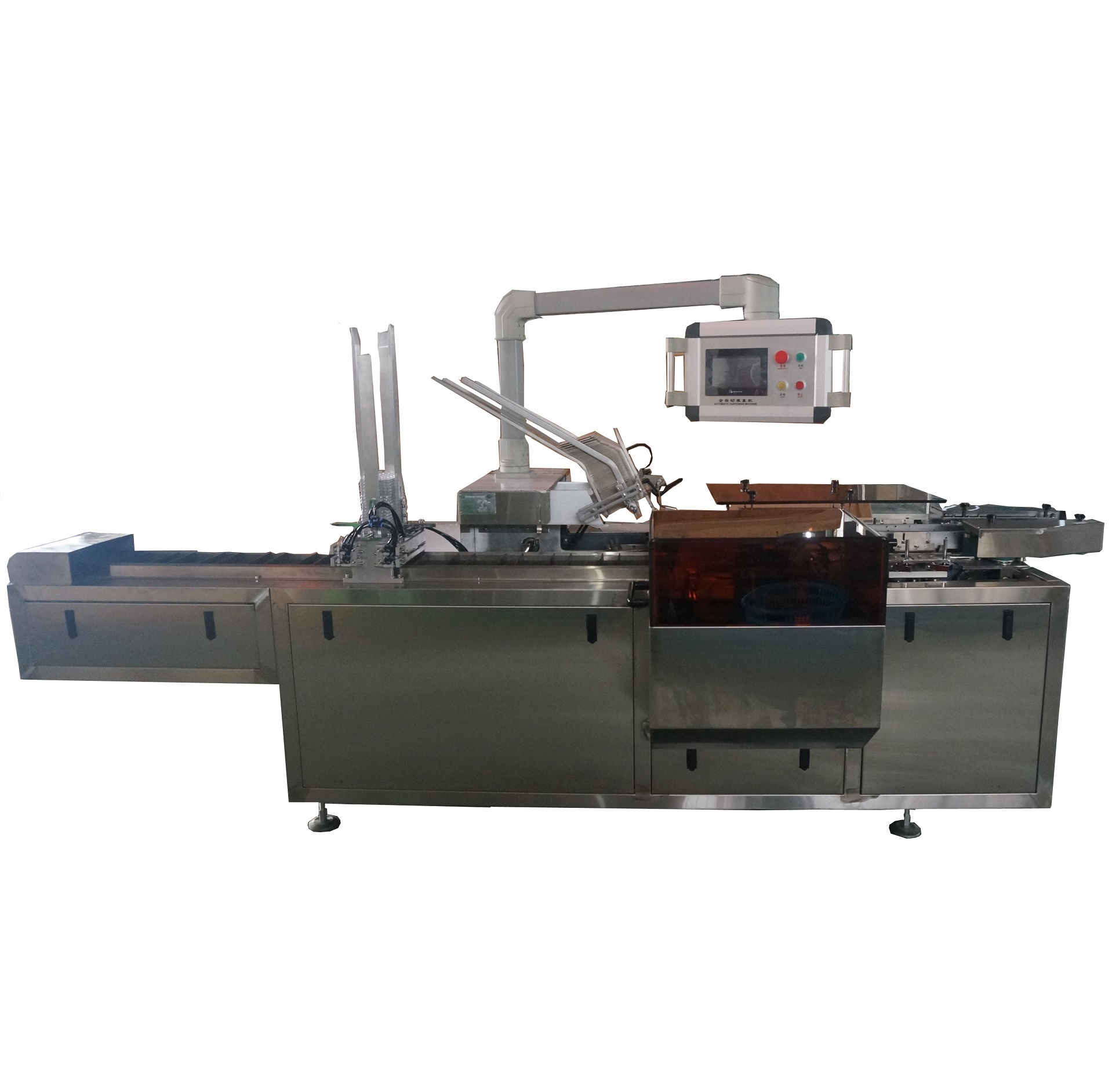

Zh Series Automatic Blister Carton Cartoning Machine Round Bottle Small Box Pharmaceutical

It is suitable for packing pharmaceutical AL/plastic plate and other related similar contact compact with automatic fish folding , forming. Opening and loading, batch number printing as well as sealing processes and soon on. It adopts PLC control, photoelectric supervision to coordinate with every parts. Once something unexpected happens when its operating, it can stop and display the reasons automatically, it's convenient to solve the troubles in time. This machine can be used separately, and also can used with other blister packing machine.

Features:

1. Touch screen and PLC control
2. GMP standard
3. Easy and fast size change range
4. Secure inserting of product and leaflet
5. Various coding, such as emboss
6. Carton rejection by mission leaflet.

Technical parameters:

1) Running speed: 60 - 120 boxes/min
2) Size range of cardboard box: L*W*H From 65 x 20x 12mm to 220 *88* 60mm
3) weight of cardboard box: 250 - 350gram
4) weight of operation manual: 55 - 65gram
5) Electric source: 380V, three-phase A.C., 50Hz, power: 1.5kW
6) Compressed air: 0.6MPa
7) Air compressor: more than 0.22m3/min (self -prepared)
8) Overall dimensions: 2800*1400* 1650mm
9) Weight: 1200kg

Company Profile

Our Company
- Since year 1996, LTPM CHINA had started manufacturing
Pharmaceutical and food packaging machines such as Capsule Filling
Machine, Ampoule Filling and Sealing Machine, Blister Packaging
Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag
Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM
CHINA designs different types of packaging lines for customers,
including standard or non-standard models. - LTPM CHINA's machinery
= high automation + high precision + more energy saving +
satisfactory warranty and after-sales service + trusted brand
Our Workshop
FAQ
Q: What is the warranty period for your machine?A: 5 years free warranty.

Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much
welcome you to visit us and free to pick you up form hotel. You
don't have time? We can use live video and you can visit us on
line.

Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will
be on buyers. In order to save your cost, we will send you a video
of full details machine installation and assist you till the end.

Q: How can we make sure about the machine quality after placing the
order?
A: Before delivery, we will running half hour of the machine to
checking the stability and sending you the testing video until you
sastisfy. We will setting all the parameters well. And also you can
arrange for quality checking by yourself or by your contacts in
China.

Q: We are afraid you won't send us the machine after we send you
the money?
A: We have our business license and certificate. And it is
available for us to use alibaba trade assurance service, protect
your money, machine qulaity and delivery are guaranted.

Product Tags:


*From:	Your email address is incorrect!
*To:	Leadtop Pharmaceutical Machinery
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Automatic Cartoning Machine
Brand Name:	LTPM CHINA
Model Number:	ZH-Series
Certification:	CE
Place of Origin:	China
MOQ:	1 set
Price:	Negociation
Payment Terms:	30% TT as deposit and 70% before shipping
Supply Ability:	25 sets
Delivery Time:	In 25 days after receiving the deposit
Packaging Details:	Wooden Case
Demension:	28001400 1650mm
Max Speed:	60 - 120 boxes/min
Electric power:	380V/50Hz
power:	2.1KW
cardboard box Size:	65 x 20x 12mm to 220 88 60mm
Material:	Stainless Steel 304/316L
Weight:	1200KG
paper weight:	55-65g
