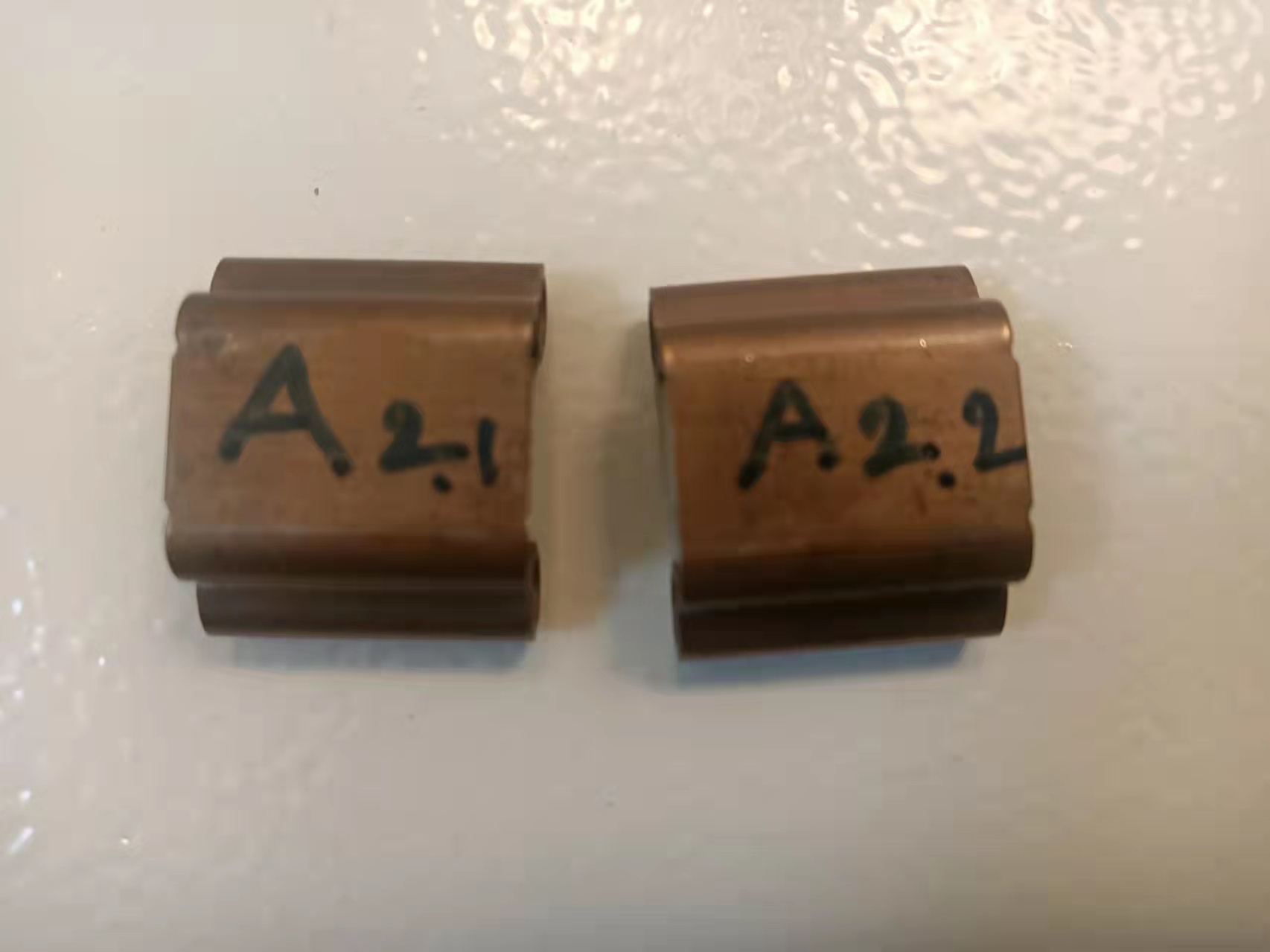

20kn Universal Test Machine Hz-1003a For Clips on LED lights compression test

Universal Testing Machines are named as such because they can perform varieties of tests on an equally diverse range of materials, components, and structures. Most UTM models are modular, and can be adapted to fit the customer’s needs. Universal Testing Machine (UTM) HZ-1003A is used to test both the tensile and compressive strength of materials.

Equipment summary:

It can be tested all the materials in stretch, compression, bending, shear, embedded relay, peeling, tearing, crack, etc, such as rubber, plastics, leather, metal, nylon wire, fabric, paper, aerospace, packaging, construction, petrochemical, electrical, vehicle, etc. The machine is designed by mechanical-electrical integration, composition of the force-measuring sensor, transmitter, microprocessor, mechanism of load drive, computer and color inkjet printer. High-precision electronic motor can be set to five-speed, the components are connected by plug-way, Floor-standing models, it is taken account of modern industrial design and ergonomics in modeling and coating.

Technical parameters:

Max load	20KN
Accuracy	0.5grade
Effective force range	0.4％～100％ (0.5grade)
Resolution	1/200000
Load cell	Basic configuration:one piece( max load)
	Enlarge configuration:can be increased extra laod cell
Effective test width	390mm (can be enlarge as customer request)
Effective Tensile stroke	800mm (can be enlarge as client request)
Test speed	0.01～500mm/min
accuracy of displacement	≤0.5％

Specifications:

1.Computer Servo Type Universal Testing Machine
A. High-precision sensor 1ton from the U.S.A. Accurate Forces within ± 0.5%.
B. High-precision 24 bits A / D, sampling frequency 200Hz
C. Power System: Panasonic AC Servo Motor + Driver + CAVEX + precision ball screw
D. Control System: it is more precise using Pulse Command control modem, the range in speed control is 0.01 ~ 250 mm / min.the board of iron can be adjusted to fast and slow by the control board. it is automatically saved after testing.
E. Data transmission: RS232 Transfer
F. Display: Windows XP test software.

2. items can be tested in the Computer Servo Type Universal Testing Machine
Common items: ( display data and calculation )
● tensile stress ● tensile strength
● tensile strength ● rate of elongation at break
● fixed stress ● rate of stress at break

3.Computer servo control material testing machine test curve

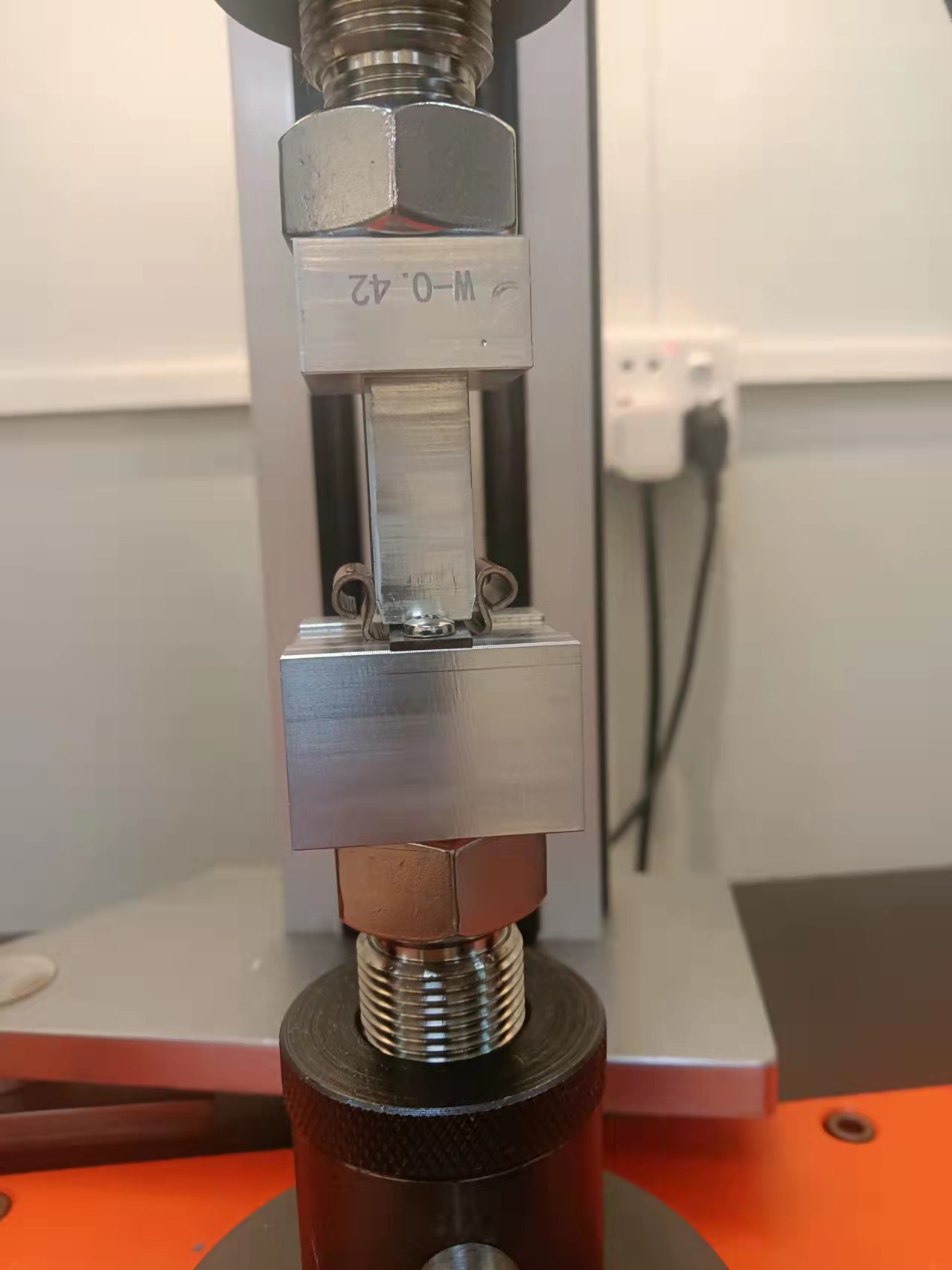

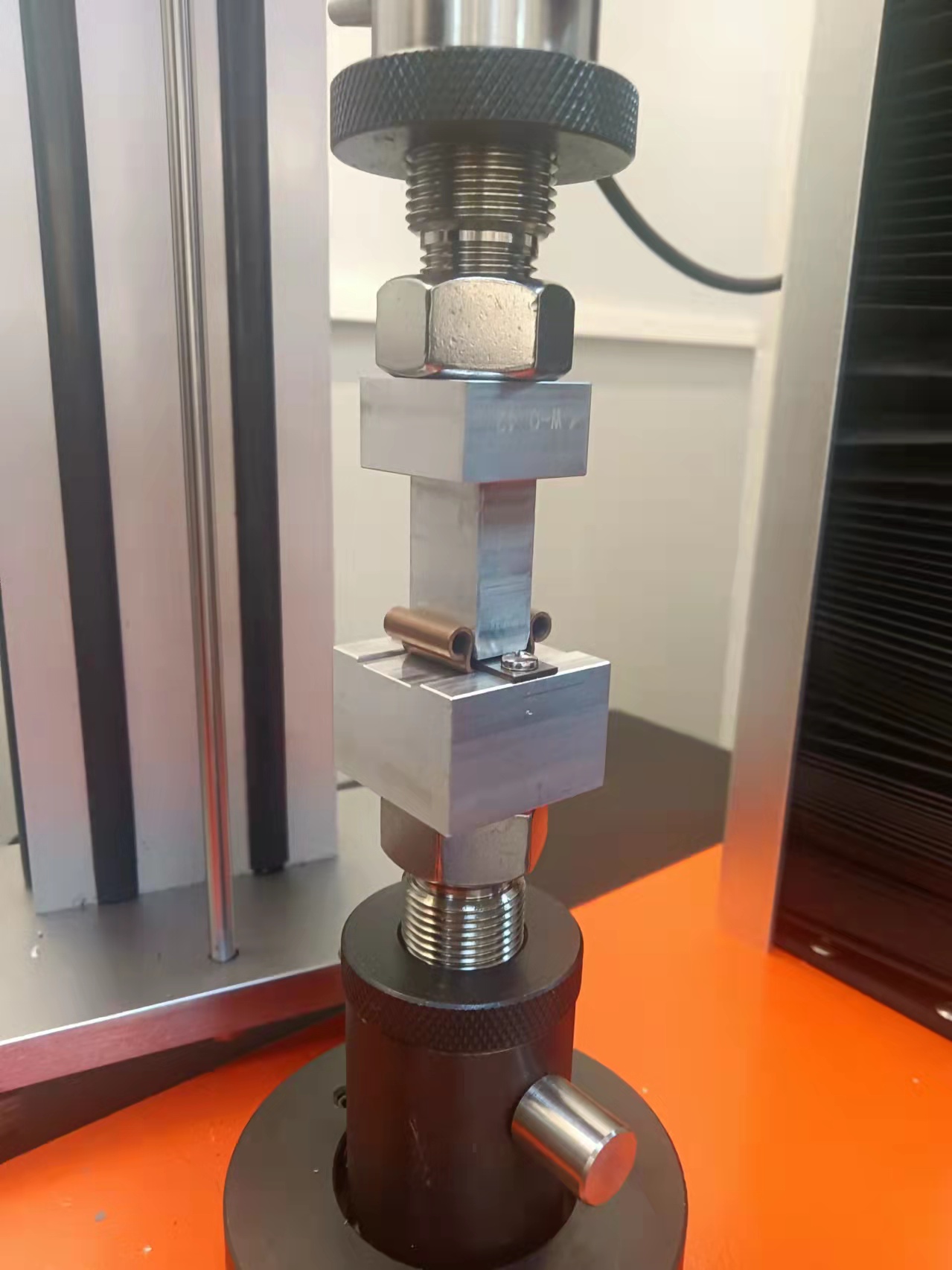

UTM Fixture

Dongguan Lixian Instrument Scientific Co., Ltd. is one of the national leading manufacturers of advanced testing instruments, which was found in 2000 and located in Dongguan, Guangdong province of China.
Our manufacturer locate in Dongguan city,covers an area of 6000 square meters, take the lead in introducing the CNC processing center and NC lathe and other advanced equipment in 2010. Carried on several listed company lab, quality institutions,Tsinghua University, Aeronautics University's project. We have more than 3000 buyers in domestic market,succeed in eastablishing the branch companies and maintenance department in Dongguan, Shanghai, Beijing, Jinjiang, Wuhan, Chongqing, Shenyang, Changsha, in the same time, we have shoeroom and stock in Dongguan, Beijing, Shanghai company.
Our products have achieved CE/ISO/ASTM/ROSH/UL certification, exported to USA, Germany, South Korea, Greece, India, Singapore, Brazil, Iraq, Saudi Arabia and other more than 60 countries.
Our machines are specially designed for many different material research and quality control,such as metal, textiles, rubber, adhesives, foodstuff and finished components and so on. A whole series of tests including tension, shearing, compression, flex / bending, tearing, peeling, friction, stiffness, vicat penetration and torsion are available by our machine. Throught our work hard and study, Dongguan Lixian Instrument Scientific Co., Ltd. has maked progress in the software and hardware of our machine, which accuracy has reached international advanced level and collection resolution has reached to 1/500000. Dongguan Lixian Instrument Scientific Co., Ltd. has the leading product development and reliable quality management system,which introduced the CNC processing center and CNC lathe and other advanced equipment in 2010, successfullly obtained the CMC measurement certificate and passed ISO 9001 system authentication.

The main products of Dongguan Lixian Instrument Scientific Co., Ltd. are material testing machines, salt spray testing machines, shoe testing machines, leather testing machines, packaging testing machines, mobile phone and computer testing machines, textile testing machines, rubber testing machines, stroller testing machines, and sports equipment testing machines. Our products are widely used in rubber & plastic, automobile production, medical equipment aerospace, colleges and universities, foodstuff, building materials, packing and other manufacturing industries.
