| Categories | Titanium Pipe Fittings |
|---|---|
| Brand Name: | Changsheng |
| Model Number: | ASTM |
| Certification: | ISO 9001;2015 |
| Place of Origin: | China |
| MOQ: | 50kg |
| Price: | 15usd/kg |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000T/MONTH |
| Delivery Time: | 10-15days |
| Packaging Details: | packed with export wooden case |
| Materials: | Titanium |
| Grade: | Grade 1,Grade 2,Grade 7,Grade 12 |
| Standard: | ASTM B861, ASTM B338 |
| Surface: | Bright, Pickling |
| Tube OD: | 6-141mm |
| Tube Wall thickness: | SCH5S-SCH80 |
| Company Info. |
| Baoji City Changsheng Titanium Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

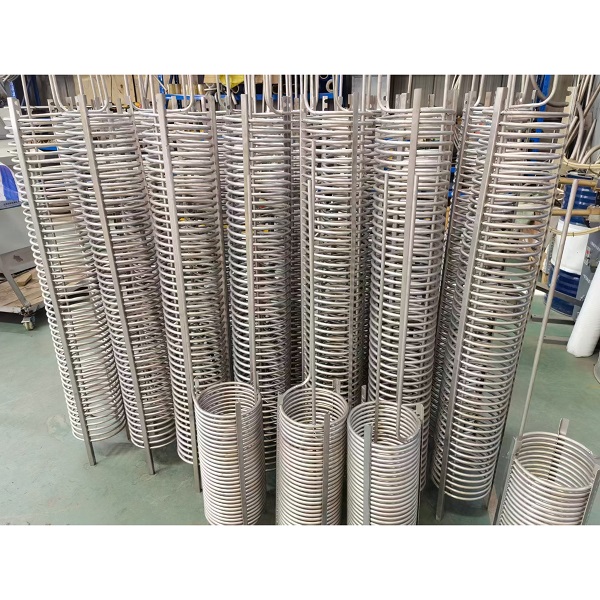

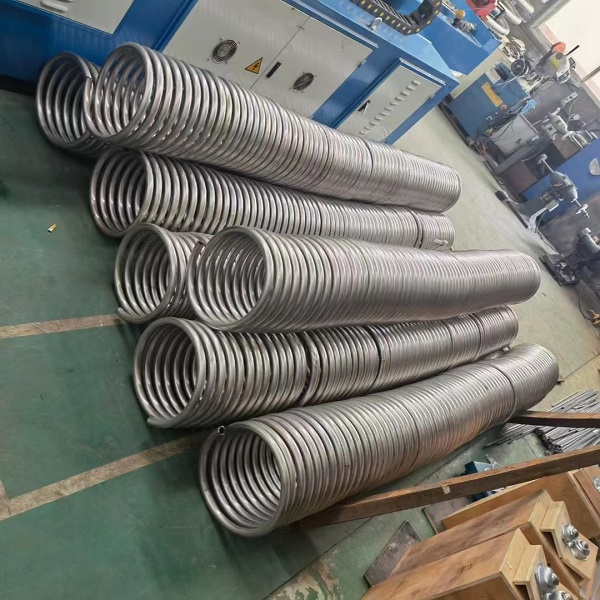

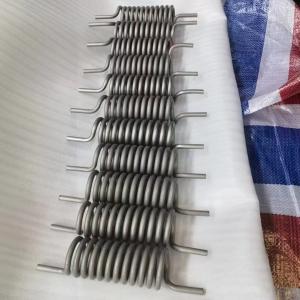

Titanium coiled Tube for Heat Exchanger is often used in heat exchangers due to its excellent corrosion resistance and high strength.
Titanium coiled Tube for Heat Exchanger is formed into a coil shape to increase the surface area.
Titanium seamless coiled Tube allows for more efficient heat transfer.
Titanium seamless coiled Tube is then inserted into a heat exchanger, where a fluid passes through the tubes and is heated or cooled as it comes into contact with the other fluid in the exchanger. This efficient design helps to reduce energy loss and increase the efficiency of the heat exchanger.
| Physical Properties | |||
| Grade | Tensile stength MPA | Yield strength MPA | Elongation % |
| Gr1 | 240 | 170 | 24 |
| Gr2 | 345 | 275 | 20 |
| Gr4 | 550 | 483 | 15 |
| Gr5 | 895 | 828 | 10 |
| Gr7 | 400 | 275 | 18 |
| Gr9 | 620 | 483 | 15 |
| Gr12 | 483 | 348 | 18 |
| Gr23 | 793 | 759 | 10 |
| Composition | |||||||||||
| Grade | Fe Max | O Max | N Max | C Max | H Max | Pd Max | Al Max | Va Max | Ni Max | Mo Max | |
| / | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | |
| Gr1 | 0.2 | 0.18 | 0.03 | 0.08 | 0.015 | ||||||
| Gr2 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | ||||||
| Gr4 | 0.5 | 0.4 | 0.05 | 0.08 | 0.015 | ||||||
| Gr5 | 0.4 | 0.2 | 0.05 | 0.08 | 0.015 | 5.5-6.7 | 3.5-4.5 | ||||
| Gr7 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12- 0.25 | |||||
| Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | 2.5-3.5 | 2.0-3.0 | ||||
| Gr12 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.6-0.9 | 0.2-0.4 | ||||
| Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | 5.5-6.5 | 3.5-4.5 | ||||
| Ti | Balance | ||||||||||
Titanium coiled Tube for Heat Exchanger are widely used in many industries, such as aerospace, petrochemical, chemical, medical, food and other industries.
Aerospace: Titanium coiled Tube for Heat Exchanger are used to manufacture the components of aircraft, such as hydraulic systems, fuel systems, exhaust systems and landing gear.
Petrochemical: Titanium seamless coiled Tube are used in the production of oil and gas, such as oil and gas pipelines, and heat exchangers.
Chemical: Titanium seamless coiled Tube are used in the production of chemical products, such as reaction vessels, storage tanks and evaporators.
Medical: Titanium gr1 coiled tube are used in medical devices, such as implants and prostheses.
Food: Titanium gr1 coiled tube are used in the food industry for the production of food and beverage products, such as tanks and pipes.
|
