| Brand Name: | YDL |
| Model Number: | YDLBBT |
| Certification: | ISO , CE |
| Place of Origin: | China |
| MOQ: | 1 Sets |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Sets / Month |
| Delivery Time: | within 30 - 60 days |
| Packaging Details: | With plastic foam firstly then outside by wooden cases(standard export packaging) |
| Material: | Stainless Steel 304 Or 316 |
| Color: | Mirror Polish |
| Condition: | New |
| Cooling Jacket: | Thinckness 2mm /14 gauge |
| Welding: | 100% TIG |
| Insulation Layer: | 50 mm |
Design Pressure 0.3MPa Of Stainless Steel Bright Beer Tank With 100% TIG Welding
Products Details
Bright Beer Tank
Jacketed Bright Beer Tanks are available from 1 barrel to 100 or more barrels. The Bright(Brite) tank have the dish cover at top & bottom with the Cylinder Boday. All tanks are food grade stainless steel 304 with a 3 mm thickness for 3BBL-70BBL, while larger tanks have a 4 mm thickness. The cooling system is a dimple jacket with insulated polyurathane fill. All tanks are designed for up to 14.7 PSI and tested at 30 PSI. The inside of the tanks are polished to Ra>.22um and the outside is a brushed / Satin finish. All tanks come standard with 25% head space on top of working volume.
Our Bright beer tanks are beautifully designed for the discriminating brewer and loaded with many standard features. These features provide commercial brewery functionality & consumer good price for all brewers alike. Special orders may be placed along with custom features to your specifications.
Standard Features
Design pressure 45 psi (3bar); working pressure 15psi (1bar)
4 stainless steel legs with leveling footpads
Interior shell: 304 stainless steel, thickness 3mm
Exterior shell: 304 stainless steel, thickness 2mm
Interior and exterior finish bright polish to 0.2~0.4 μm, hygiene surface
All Interior welds ground to a smooth0.2~0.4 μm sanitary finish
Flanged and dished head top and bottom
10% headspace unless a different volume is requested
Combined drain extensions and beer port are standard
Top manway or side manway door
Dual zone in sidewall and bottom dimple cooling jacket with glycol inlet and outlet
Polyurethane insulation thickness 50mm for cooling jacket on side and bottom
Non welding CIP arm and rotating 360 degree reach spray ball
Carbonation system with micron stone
Solenoid valve, pressure relief valve (safe valve) are standard.
Pressure gauge
Temperature sensor well
All clamps and gaskets to attach all accessories
Tank complete with piping, fittings, sanitary valves and all parts.
Technical Parameters
| Bright Tank Series | Volume by US Gallon | Conical Degree | Diameter | Height |
| 2HL Bright Tank | 53US Gallon | 60 (70 availabe) | 820mm | 1400mm |
| 6HL Bright Tank | 106US Gallon | 60 (70 availabe) | 1060mm | 1900mm |
| 8HL Bright Tank | 132US Gallon | 60 (70 availabe) | 1160mm | 2050mm |
| 10HL Bright Tank | 159US Gallon | 60 (70 availabe) | 1260mm | 2100mm |
| 12HL Bright Tank | 211US Gallon | 60 (70 availabe) | 1360mm | 2100mm |
| 15HL Bright Tank | 264US Gallon | 60 (70 availabe) | 1360mm | 2400mm |
| 20HL Bright Tank | 317US Gallon | 60 (70 availabe) | 1560mm | 2350mm |
| 30HL Bright Tank | 528US Gallon | 60 (70 availabe) | 1760mm | 2700mm |
| 40HL Bright Tank | 793US Gallon | 60 (70 availabe) | 1760mm | 3350mm |
| 60HL Bright Tank | 1057US Gallon | 60 (70 availabe) | 1960mm | 3860mm |

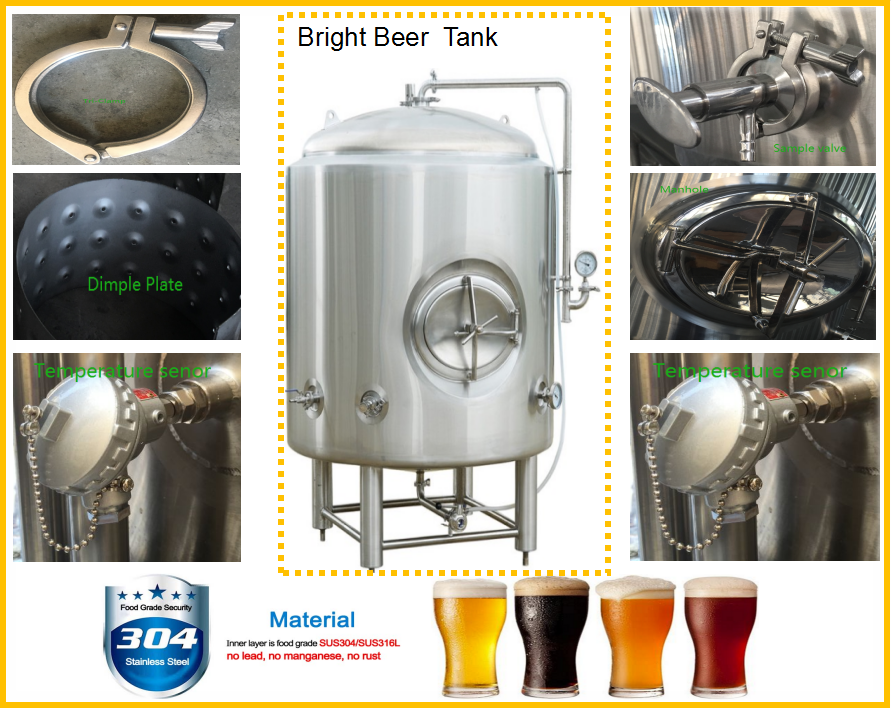

Products Display
Production Process
|
