30L/S Water Cannon Automatic Fire Extinguishing System Fore Fire Rescue

automatic tracking and targeting fire water cannon fore fire rescue

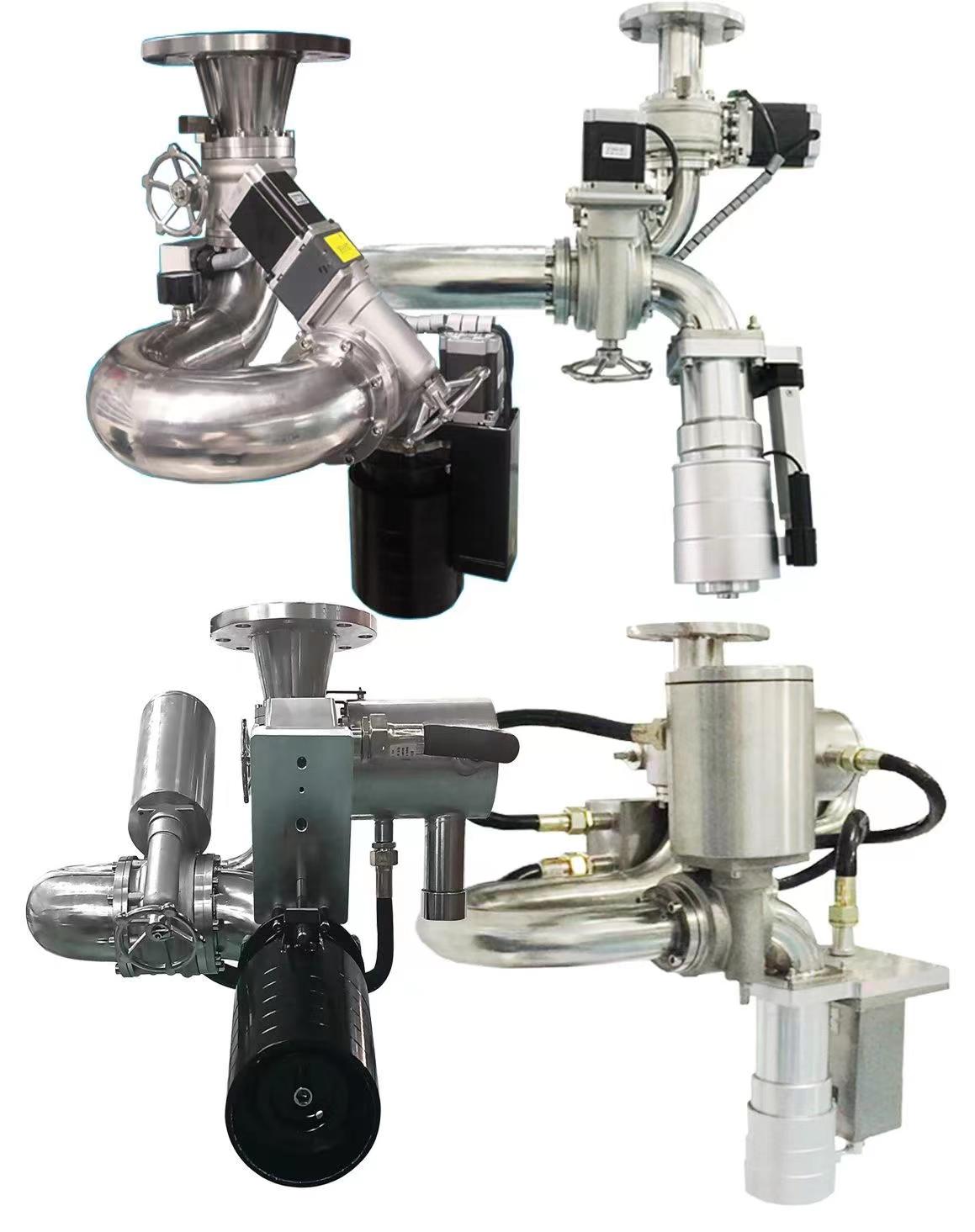

Product Overview

INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM

Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.

FEATURES AT A GLANCE

ITEM#:ZDMS 0.9/30S-LZ II

DIMENSION:580×360mm

NET WEIGHT:10KG

MODEL: ZDMS0.9/30S-LZ II

SENSOR:IR SENSOR

VOLTAGE:220V

COMMUNICATION METHOD:CAN bus

KEYWORD:INTELLIGENT FIRE WATER CANNON

Front elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Standard &Requirements	Inspection results
1	Rated working pressure (MPa)	≤0.9	0.9	/
2	Rated flow (L / s)	30×(1±8%)	30.5	/
3	Maximum protection radius(m)	≥55	55	/
4	Jet radius (m)	≥62	62	/
5	Monitoring radius(m)	≥60	60	/
6	Positioning time(s)	≤60	49	49.5
7	Installation height (m)	8~15	8	15
8	Horizontal swing angle(°)	≥180	360
9	Minimum pitch profile(°)	-90~+30	-90~+30
10	working temperature	4~55℃ ≤95%RH	4~55℃ ≤95%RH

PRODUCT CONFIGURATION

Control host

Electric control box

Field operation panel

SALES AND SERVICE NETWORK

Successful Project

Project in Malaysia

Project in Azerbaijan

Project in Singapore

FAQ

Q1: Are you a manufacturer?

A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.

Q2: What certificates do you have?

A2: We only have CCC and ISO at present. FM or UL will be got within next year.

Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?

A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
