| Categories | Mitsubishi Servo Motor |
|---|---|
| Brand Name: | Mitsubishi |
| Model Number: | R88M-K20030T-S2 |
| Place of Origin: | Japan/ China |
| MOQ: | 1/pc |
| Price: | $10.00 - $500.00/Pieces |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 Piece/Pieces per Quarter |
| Delivery Time: | 3-5 days |
| Packaging Details: | 100% Original Package |
| Type: | Servo Motor |
| Manufacturer: | Mitsubishi Electric |
| TYPE: | R88M-K20030T-S2 |
| Warranty: | 1 year |
| Application: | General Machinery |
| Model: | R88M-K20030T-S2 |
| Ac voltage: | 208-230 / 240 V |
| Phase: | Three-phase |
| Rated speed: | 2000~3000rpm |
| Company Info. |
| Changsha Zhinian Automation Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

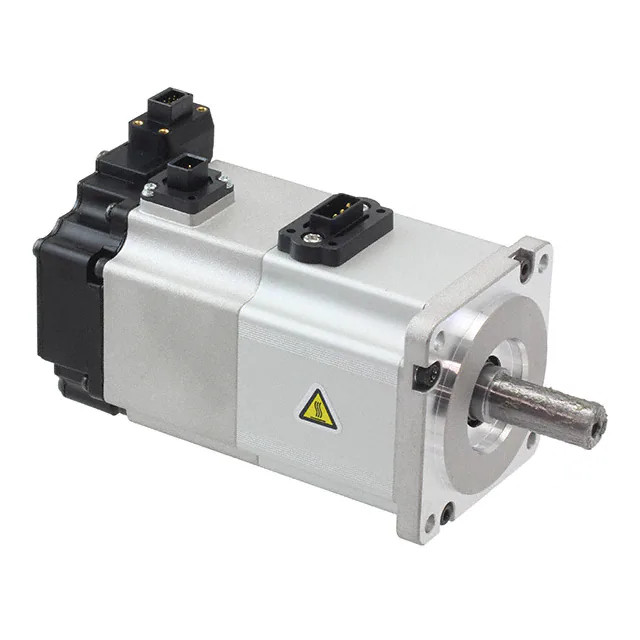

R88M-K20030T-S2 Mitsubishi R88M Series Servo Motors New Original
| TYPE | DESCRIPTION |
| Category | Motors, Actuators, Solenoids and Drivers |
| Motors - AC, DC | |
| Mfr | Omron Automation and Safety |
| Series | Accurax G5 |
| Package | Bulk |
| Product Status | Active |
| Type | AC Motor |
| Function | Servomotor |
| Motor Type | - |
| Voltage - Rated | 230VAC |
| RPM | 3000 RPM |
| Torque - Rated (oz-in / mNm) | 90.65 / 640 |
| Power - Rated | 200W |
| Encoder Type | Absolute |
| Size / Dimension | Square - 2.362" x 2.362" (60.00mm x 60.00mm) |
| Diameter - Shaft | 0.433" (11.00mm) |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Mounting Hole Spacing | 2.756" (70.00mm) |
| Termination Style | Connector |
| Features | Brake, Key |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 270.5 / 1910 |
| Operating Temperature | 0°C ~ 40°C |
| Approval Agency | CE, CSA, cULus, TUV, UL |
| Weight | 2.6 lbs (1.2 kg) |
| Base Product Number | R88M-K20030 |
Motor Specifications:
Documents & Media
RESOURCE : TYPELINK
Datasheets : Accurax G5 Series Datasheet
CAD Models :
R88M-K20030T-BS2.x_t/R88M-K20030T-BS2.stp/R88M-K20030T-BS2.sldprt
Environmental & Export Classifications
ATTRIBUTE DESCRIPTION
RoHS Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8501.51.4040
|
