Brand Name: | AISRY |
Model Number: | ASR-5634 |
Certification: | ISO |
Place of Origin: | China |
MOQ: | 1 set |
Price: | Negotiable |
Payment Terms: | T/T, Western Union |
Supply Ability: | 200 sets per month |
Delivery Time: | 15 work days |
Packaging Details: | Standard export wooden case |
Resolution: | 0.01° |
Camera System: | 25fps(55piexl/mm~315piexl/mm) |
Sample max. height: | 30mm |
Light source: | Monochrome LED cold light |
Measuring accuracy: | 0.1° |
Standard accessory: | Frame, PC, printer, CCD camera, LED Light |
Size: | 560*200*360mm |
Analysis: | θ/ 2 , automatic |

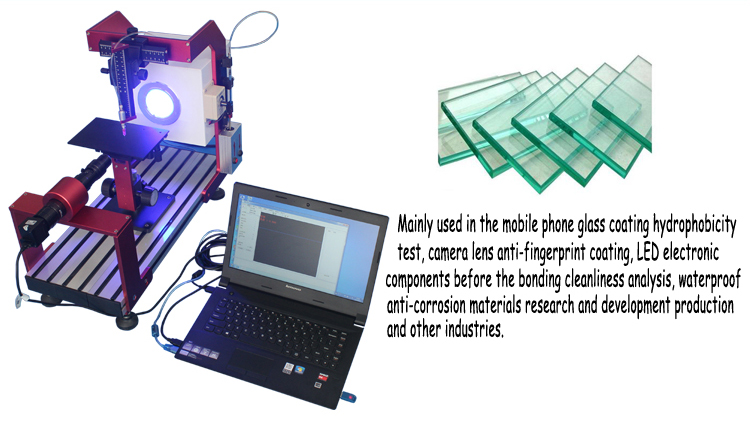

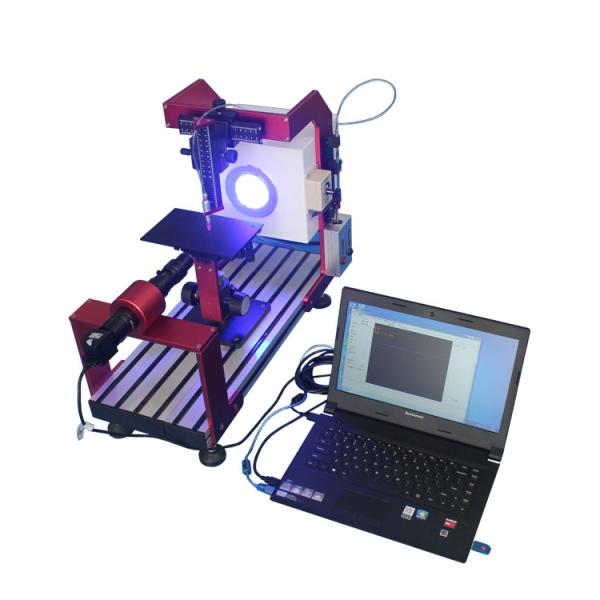

ASR-5634 Contact Angle Tester Water Drop Angle Measuring Instrument
Appliance:
The automatic water drop angle tester (water drop angle) refers to a drop of liquid on a solid horizontal plane, at the solid-liquid-gas three-phase junction point on the solid, and its gas-liquid interface and solid-liquid interface are two tangent lines. The angle formed by the liquid phase sandwiched therein. When the droplet is freely in a space that is not affected by the force field, it is spherical due to the presence of interfacial tension. However, when a droplet is in contact with a solid plane, its final shape depends on the cohesive force inside the droplet and the relative magnitude of the adhesion between the droplet and the solid. When a droplet is placed on a solid plane, the droplet can be automatically spread over the solid or present as a droplet of the fully automatic water drop angle tester with the solid.
Parameter:
Resolution | 0.01° |
contact angle test range | 0-180° |
camera System | CCD camera and Continuous zoom lens microscope, 25fps(55piexl/mm~315piexl/mm) |
Light source | Monochrome LED cold light |
Size | 560*200*360mm |
Analysis | θ/ 2 , automatic |
Accuracy | 0.1° |
![]() |
