Categories | Cell Phone Testing Equipment |
---|---|
Brand Name: | AISRY |
Model Number: | ASR-5618 |
Certification: | ISO |
Place of Origin: | China |
MOQ: | 1 set |
Price: | Negotiable |
Payment Terms: | T/T, Western Union |
Supply Ability: | 200 sets per month |
Delivery Time: | 15 work days |
Packaging Details: | Standard export wooden case |
Drop height: | 30~200cm |
Drop floor media: | Steel plate |
Air source: | ≥0.5Mpa |
Power supply: | AC220V 50Hz 5A |
Sample diameter range: | 10~120mm |
Max load: | 2kg |
Drop range: | 500x600mm |
Machine size: | W800*D900*H2200mm |

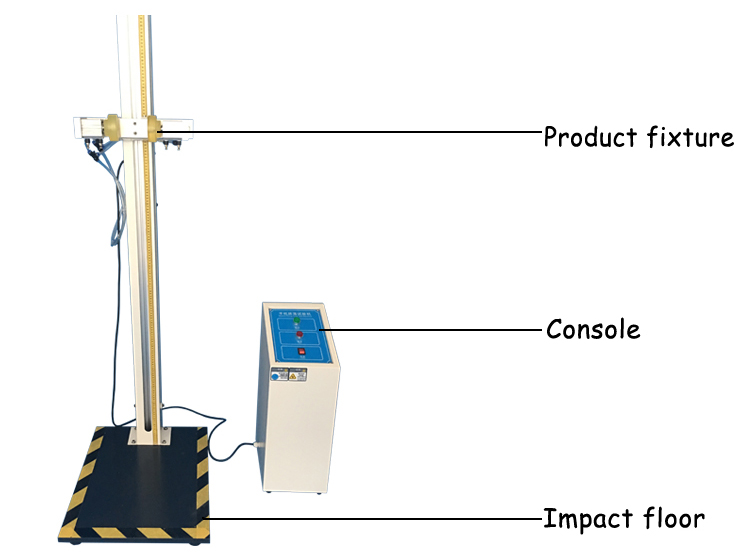

Analysis Instruments Pneumatic Fall Test Equipment For Iphone 7
Application: This machine is designed to evaluate the product's impact on the product's performance after the product is accidentally dropped when the product is used in experiments. It applies to: mobile phones, PDA, electronic dictionary of telephones, small consumer electronics products such as CD, MP3s, etc. test;
Function: vacuum adsorption drop, drop height can be set, manual lifting, accurate impact parts, with acceleration, speed measurement.
Parameter:
Model | ARS-5618 |
Drop angle | O°,45°,90° |
Effective dropping height | 400~1500mm |
Control method | Electric |
Dimension(W*D*H) | 800*900*2200mm |
Use gas source | ≥0.5mpa |
Power supply | AC220V 50HZ 5A |
Drop range | 500*600mm |
![]() |
