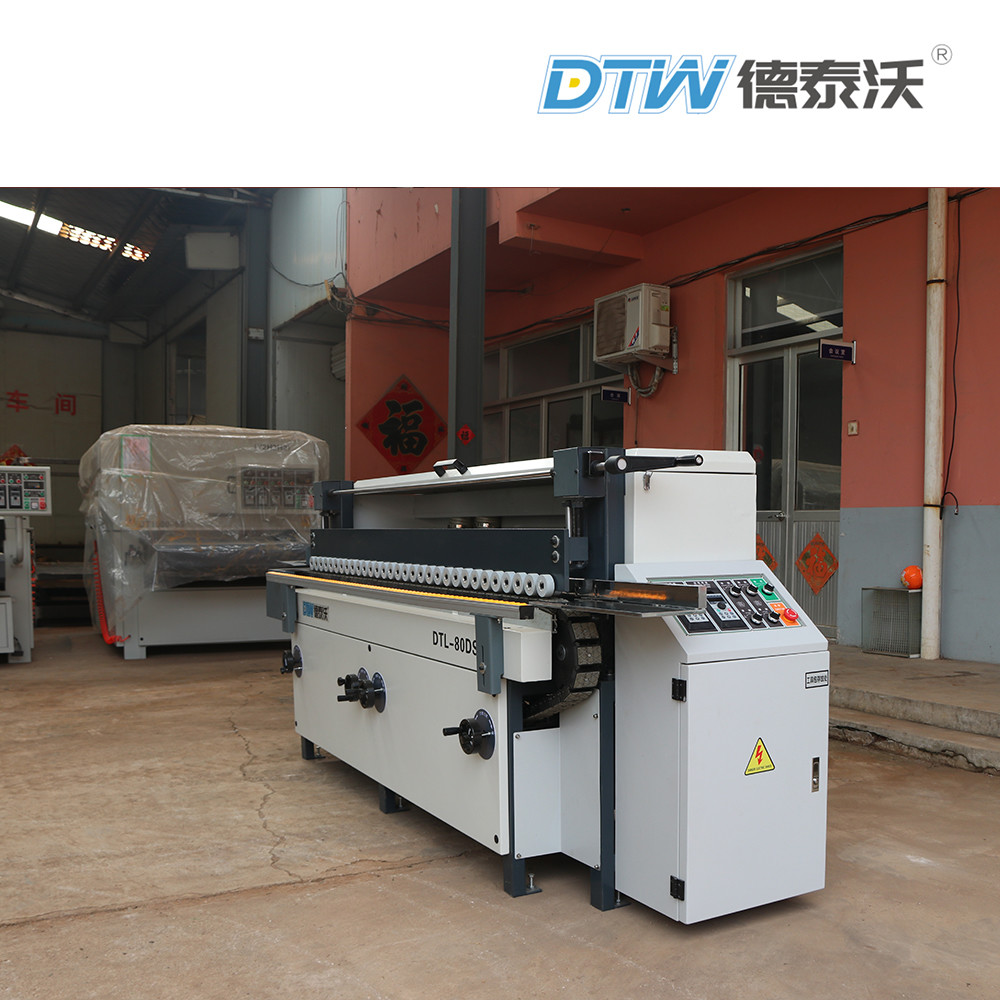

Woodworking 4 Heads Side Sanding Machine DTW Edge Sanding Machine For Wood

Categories Side Sanding Machine
Brand Name: DTW
Model Number: DTL-80DS
Certification: CE, ISO
Place of Origin: CHINA
MOQ: 1 set
Price: 3500-4800USD
Payment Terms: L/C, T/T
Supply Ability: 2000 set/year
Delivery Time: 7-15 days working days
Packaging Details: Seaworthy Package
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Woodworking 4 Heads Side Sanding Machine DTW Edge Sanding Machine For Wood

4 Heads Side Sanding Machine DTL-80DS DTW Brush Sanding Machine Edge Sanding Machine

4 Heads Side Sanding Machine for Woodworking Machinery DTL-80DS DTW Brush Sanding Machine Series Edge Sanding Machine


Side Sanding Machine DTL-80DS Specifications


DTL-80DS Specifications
Brush Roller Diameter300mm
Sand Roller Diameter180mm
Roller Height150mm
Min Working Width100mm
Min Working Length150mm
Working Thickness5-40mm
Sandpaper Grade120#-600#
Lifting WayElectric Control
Conveyor Motor0.75KW
Lifting Motor0.55KW *4
Main Motor0.75KW *4
Total Power5.95KW
Conveyor SpeedInverter Control
Voltage380V/50HZ/3PH
Roller SpeedInverter Control
Dimension3000×900×1250mm
Wooden Case Size3100×1000×1400mm
N.W.800KG
G. W.920KG

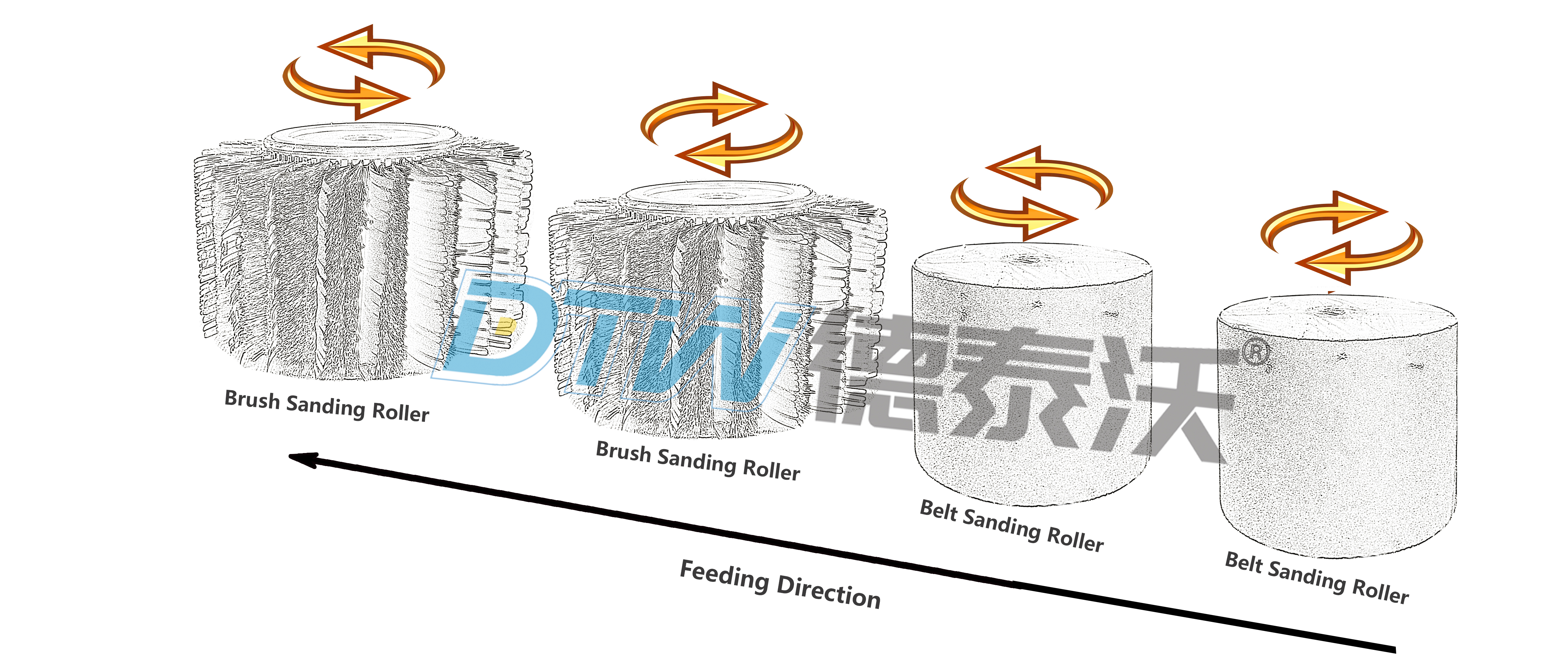

Side Sanding Machine DTL-80DS Structure
