| Categories | Hydraulic Hose Crimping Machine |
|---|---|
| Brand Name: | FY |
| Model Number: | FY-51BY |
| Certification: | CE |
| Place of Origin: | China,Shanghai |
| MOQ: | 1 set |
| Price: | USD$ 1600/1500/1400/1300 |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
| Delivery Time: | 2-7 working days |
| Packaging Details: | wooden box |
| Voltage: | 220V/240V/380V/415V(Optional) |
| Gross Weight: | 326kgs |
| Power(w): | 3KW |
| Package Dimension: | 900*685*1410 mm |
| After-sales service provided: | Video technical support,Online support |
| Crimping force: | 600Ton |
| Crimping range: | 6-51mm |
| Color: | Blue,blue or customize |
| Application: | Crimp Hose |
| Free dies: | 10sets |
| System pressure: | 31.5MPA |
| Output Volume Of Pump: | 2.5L/5L/10L |
| Company Info. |
| Shanghai Fanying Machinery Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

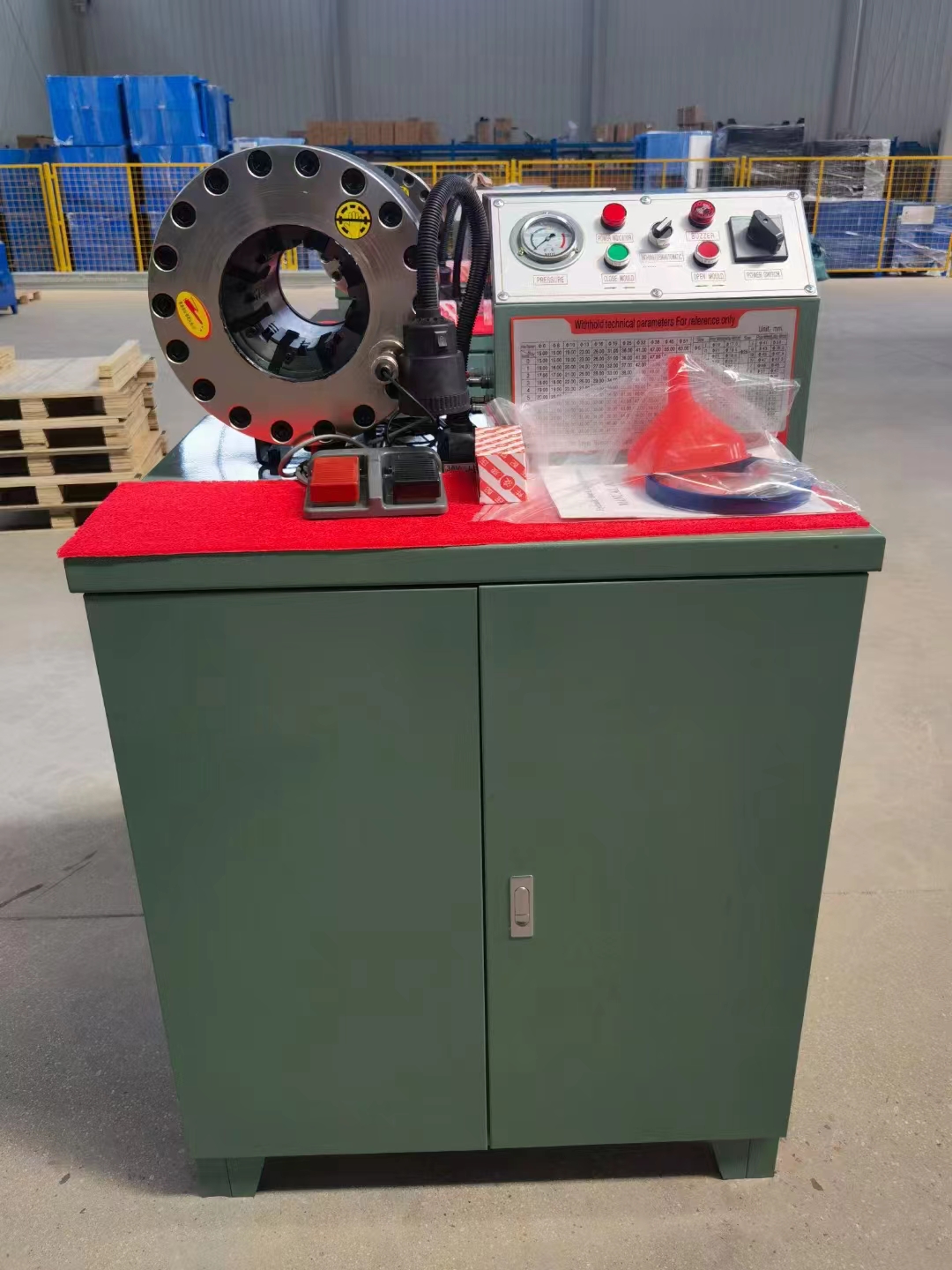

6-51mm Hydraulic Hose/Rubber Crimping Machine Tool Different Pressing Range Customer Colour 51BY
Hydraulic Hose/Rubber Crimping Machine DESCRIPTION
Hydraulic Hose/Rubber Crimping Machine Fit for 2 inch 4SP connection hydraulic hose crimping machine P32 crimper.Hydraulic Hose/Rubber Crimping Machine is a hose crimper for hydraulic high pressure flexible hose range from 1/4 inch to 2 inch one to six stainless steel wire braided or spiraled. Hydraulic Hose/Rubber Crimping Machine has three different operate mode, to meet customer different need.Hydraulic Hose/Rubber Crimping Machine CNC automatic operation, convenient and fast.The processing speed is fast, the work efficiency is high, the precision is high, and the strength is high.
The manual adjustment is converted into a fully automatic numerical control operation, which improves the quality, improves the labor efficiency, reduces the labor cost, and greatly shortens the production cycle of the product.
Different hose or fitting need different dies mold, like air suspension ring, air conditioning hose, brake hose, hydraulic hose,cable wire, steel pipe, steel wire rope and so on. This model is equipped with 10 sets of molds, which can help you realize the processing of these products . You also can tell us what you need to crimp, then we can make customize the dies mold according to your products or requirements.
Hydraulic Hose/Rubber Crimping Machine MAIN ADVANTAGES
1. Big oil pump, efficient and long life
2. Multifunctional operate panel, easy to change between automatic and semi-auto
3. Pressure can be shown on the panel
4. Foot pedal as standard to make hands free
5. Working light to make crimping work more clear
TECHNICAL DATA
| Model | FY-51BY Hose Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 30±mm |
| Die Sets | 10 |
Maximum Open Diameter | 114MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
Work Efficiency | 200 pcs/h |
| Standard Voltage | 220v/240v/380v/415v(optional) |
| Motor Power | 3(KW) |
| Length | 860(mm) |
| Width | 640(mm) |
| Height | 1300(mm) |
| Weight | 310(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- UC control;
► TWO MODE EASY ALTERNATED
Automatic or semi-automatic mode can be choosen
|
