| Categories | Cone Mill Machine |
|---|---|
| Brand Name: | SNYNXN |
| Model Number: | KZL 125 |
| Certification: | CE ISO GMP |
| Place of Origin: | JIANGSU CHINA |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets / year |
| Delivery Time: | IN 30 DAYS |
| Packaging Details: | Standard Export Packing in Wooden case |
| Type: | Grinding Granulator Machine |
| Capacity: | 20-2500 KG/H |
| Screen Diameter: | 1-8mm |
| Function: | granulating size reduction |
| Raw material: | Stainless Steel 304/316SS |
| Core Components: | Engine, Bearing, Gearbox, Motor, Gear |
| Voltage: | Customized, 220V/380V, 380V, 110V/220V, 220V |
| After Warranty Service: | Video technical support, Online support, Spare parts |
Description of KZL series Medicine Powder fast Grinding Granulator
High Speed Granulator KZL Type 250 Stainless Steel Cone Mill Manufacturer
Suitable for crushing and recycling in medicine, food, chemical
pigments, fertilizer ,etc. In operation, a high speed rotating
knife cut the particles with different shapes and specificstions.
Material particle size smaller than the screen passes to the
discharge while the larger particles are reduced. This equipment
can replace YK swaying granulator in some cases.
Model Features:
1.Table type: Widely used in crushing and pelletizing of non
uniform materials.
2.Inclined type: Normal type,suitable for lighter proportion
materials granulation. Popular used in small batch production.
3.Pipeline type: Pipeline connection, either single or joint use is
abailable. No dust when used in combination.
KZL PIPELINE TYPE HIGH SPEED GRANULATOR | ||||
Model | 160 | 180 | 200 | 250 |
Spring Length(mm) | 120 | 135 | 140 | 180 |
Screen Diameter(mm) | 1-8 | 1-8 | 1-8 | 1-8 |
Capacity(kg/h) | 150-300 | 150-400 | 200-500 | 300-1000 |
Motor Power(kw) | 1.5 | 1.5 | 1.5-2.2 | 2.2-3 |
Rotation Speed | Frequency 200-1500r/min or 400-300r/min | |||
Overall Dimension(mm) | 1000*720*1170 | 1050*720*1200 | 1100*750*1300 | 1350*800*1550 |
Approx. Weight(kg) | 140 | 160 | 190 | 260 |

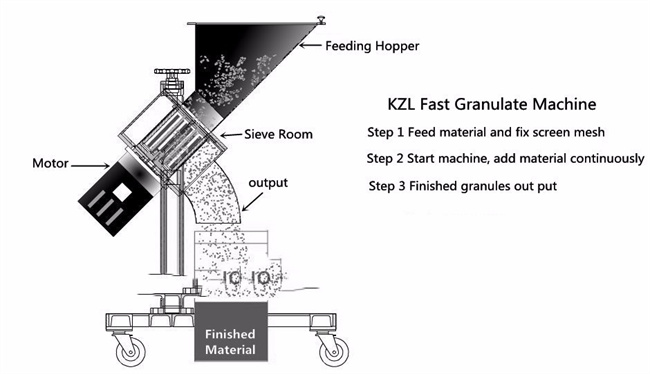

Adding raw material from feeding hopper and fixing the granulating knives. The material goes into the sieve room and touches screen mesh of high rotating speed. The fixed granulating knives crush larger particles by centrifugal force. The whole progress is finished when the required material put out.
1.Your enquiry or questions will reponse once we receive it!
2.Providing technical data,high-definition pictures,flow chart that
all you need
3.Supply the validation documents and certificates.
4.OEM/ODM is available.
5.Providing long-term after-sale service,door-to-door service and
corporate training
Welcome to contact us for more about Low cost high quality pharmaceutical multi mill or pharmaceutical cone mill.
|
