Integrated Circuit Chip TPS53314RGFR 6A Step-Down Regulator With Integrated Switcher

Integrated Circuit Chip TPS53314RGFR 6A Step-Down Regulator With Integrated Switcher

Product Description Of TPS53314RGFR

TPS53314RGFR is a D-CAPTM mode, 6-A synchronous switcher with integrated MOSFETs.It is designed for ease of use,low external component count,and small package power systems.

Specification Of TPS53314RGFR

Features Of TPS53314RGFR

• Conversion Input Voltage Range: 3 V to 15 V

• VDD Input Voltage Range: 4.5 V to 25 V

• Output Voltage Range:0.6 V to 5.5 V

• 5-V LDO Output

• Integrated Power MOSFETs with 6-A Continuous Output Current

• <10-μA Shut Down Current

• Auto-Skip Eco-mode TM for Light-Load Efficiency

• D-CAPTM Mode with Fast Transient Response

• Selectable Switching Frequency from 250 kHz to 1 MHz with an External Resistor

• Built-in 1%, 0.6-V Reference

• 0.7-ms, 1.4-ms, 2.8-ms and 5.6-ms Selectable Internal Voltage Servo Soft-Start

• Pre-Charged Start-up Capability

• Integrated Boost Switch

• Adjustable Overcurrent Limit Via External Resistor

• Overvoltage/Undervoltage,UVLO and Over-Temperature Protection

• Support All Ceramic Output Capacitors

• Open Drain Power Good Indication

Applications Of TPS53314RGFR

• Server and Desktop Computers
• Notebook Computers
• Telecommunication Equipments

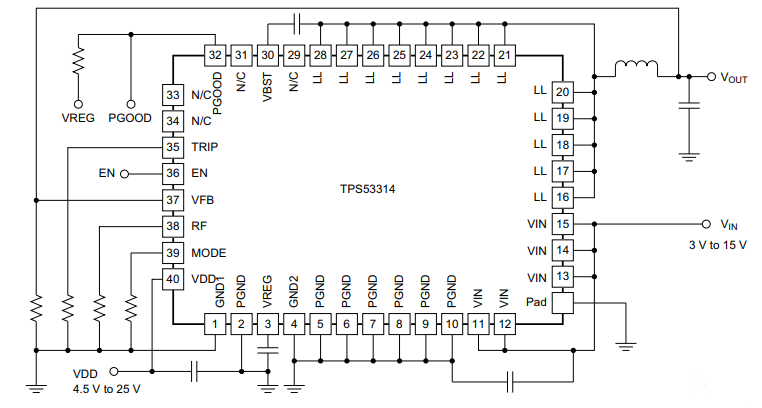

Application Diagram Of TPS53314RGFR
