Integrated Circuit Chip STL24N60M6 Power MOSFET Transistors 600V 8PowerVDFN

Categories Integrated Circuit Chip
Brand Name: Original Factory
Model Number: STL24N60M6
Certification: Lead free / RoHS Compliant
Place of Origin: CN
MOQ: 10
Price: Contact for Sample
Payment Terms: T/T, L/C, Western Union
Delivery Time: 5-8 work days
Packaging Details: 8-PowerVDFN
Part Number: STL24N60M6
Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 10 V
RDS(on) max: 209 mΩ
Vgs (Max): ±25V
Power Dissipation (Max): 109W (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 960 pF @ 100 V
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Integrated Circuit Chip STL24N60M6 Power MOSFET Transistors 600V 8PowerVDFN

Integrated Circuit Chip STL24N60M6 Power MOSFET Transistors 600V 8PowerVDFN


Product Description Of STL24N60M6
STL24N60M6 is Single FETs Power MOSFET Transistors, Low gate input resistance, the Operating Temperature is -55°C ~ 150°C (TJ).


Product Attributes Of STL24N60M6

Part NumberSTL24N60M6
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
600 V
Current - Continuous Drain (Id) @ 25°C
15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
209mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id
4.75V @ 250µA
Operating Temperature-55°C ~ 150°C (TJ)

Feature Of STL24N60M6

  • Reduced switching losses
  • Lower RDS(on) per area vs previous generation
  • Low gate input resistance
  • 100% avalanche tested
  • Zener-protected

Applications Of STL24N60M6

  • Switching applications
  • LLC converters
  • Boost PFC converters

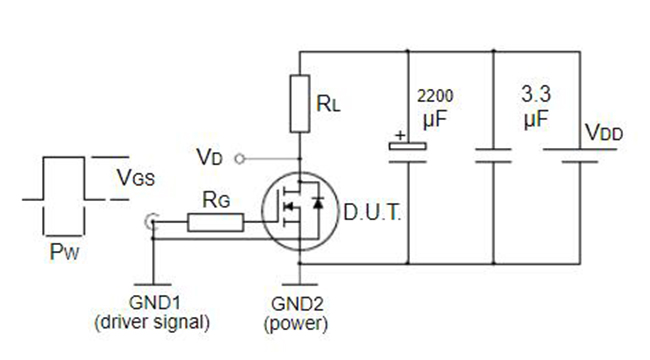

Switching Times Test Circuit For Resistive Load(STL24N60M6)
