Square Industrial Embedded Touch Panel PC IP65 Waterproof Fanless

Product Description

Industrial Medical IP65 Waterproof Wall Embedded Touch Square Screen Panel PC Table True Flatips Fanless PC

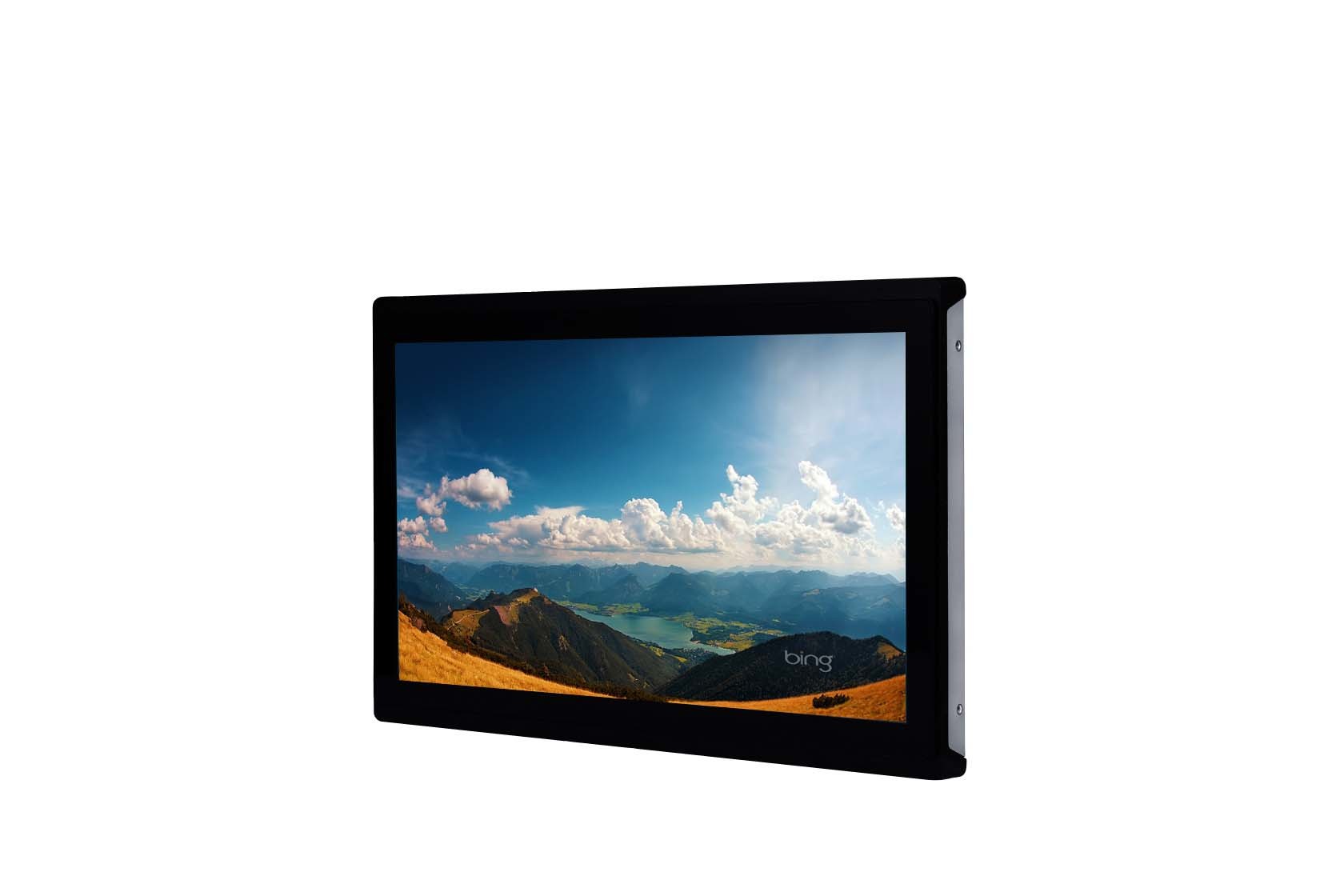

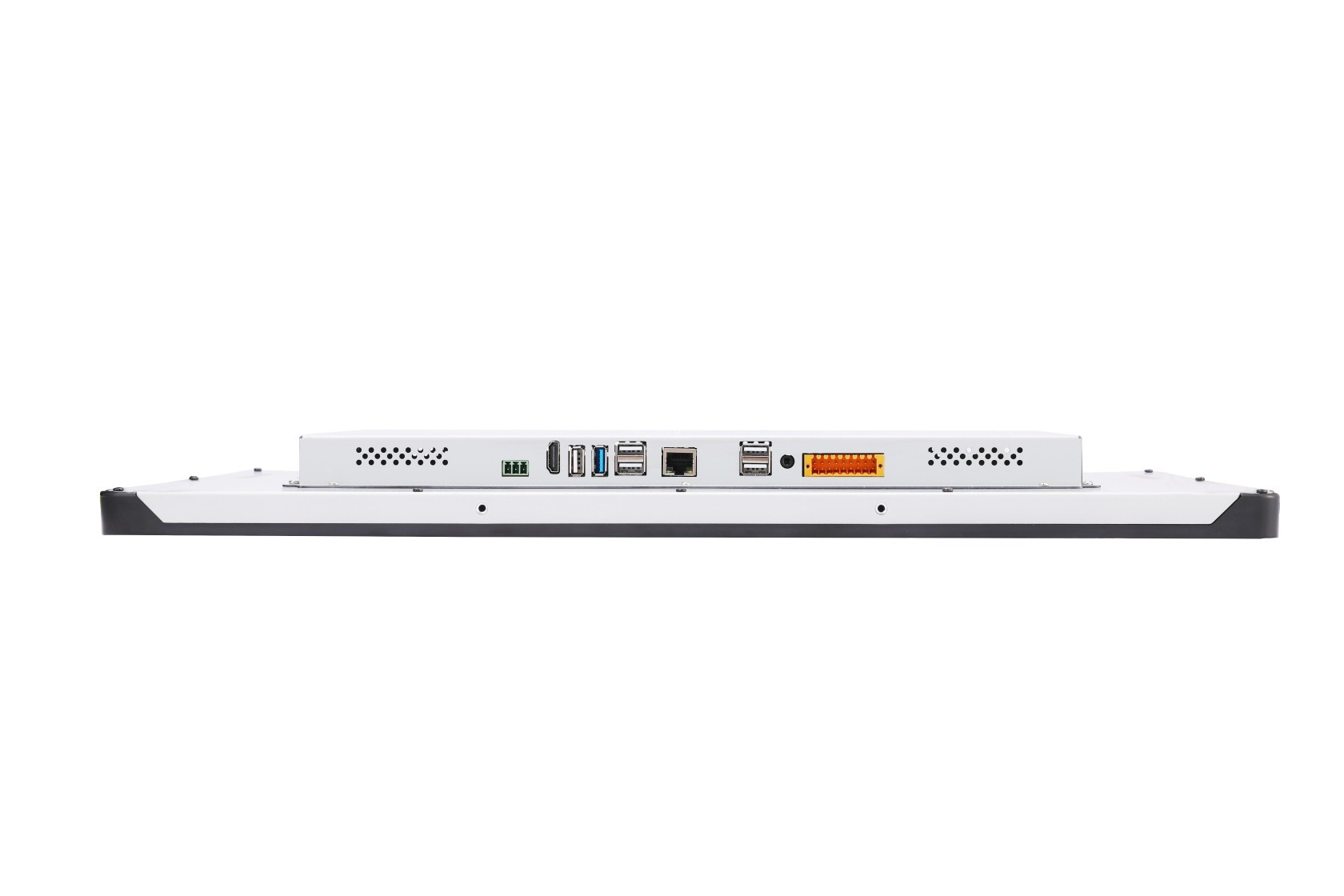

LYX156K20C is a high-performance embedded integrated touch screen with the industrial Rockchip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 15.6-inch LED LCD display (resolution 1920 * 1080) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, HMI, small and medium-sized medical analyzer and other industry applications.

Specifications:

CPU:RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
RAM: DDR 2GB (Selectable 4Gb)
ROM: 32Gb(Selectable 64Gb)
Operating System: Linux 4.19
GPU: Mali-G52 1-Core-2EE
Luminance:300 cd/ m²(Select a 450cd / m² s)
Material quality:Plastic face frame, metal back cover

Size:15.6 Inch

Resolving power:1920 * 1080

Touch form:Capactive 10 touch

Luminance:300 cd/ m²

Angle of view:Full perspective

Way to stall:Flat, outer, embedded

Dimension:383 * 249 * 51mm

Power interface:3 PIN*2.54mm terminal DC24V provides power supply

Power input:12-30V Recommended value of 24V

Working temperature:-10℃ ~ 60℃

Storage temperature:-20℃ ~ 70℃

Product Performance:

Wuhan LongYu Intelligent Technology Co., Ltd is a high-tech enterprise integrating R&D, production and sales. It is located in the heart of China's Optics Valley - Gezhouba Sun City New Energy and Environmental Protection Industrial Park, Wuhan East Lake High-tech Zone. The company focuses on three core business areas: embedded intelligent HMI software and hardware, MES loT terminal display products, intelligent control equipment and distributed control solutions.

The company is ISO9001:2015 quality assurance certified, its products are CE, FCC and Rohs certified. With 9 invention patents, 24 design and appearance patents, 16 software copy-rights, the company was identified a national class high-tech enterprise in 2015, a software company by Hubei Provincial Economic and Information Commission in 2016. In 2018, the company was reconfirmed to be a national class high-and-new technology company.

There is a strong research and development, production, marketing and management team in Wuhan Longyu Intelligent Technology Co. Ltd. Relying on our independently developed embedded software and hardware technologies, we are working hard to help upgrading China’s manufacturing, our professional products and customized solutions have been put into beneficial use in electric power generation、 environment protection、new energy、medical equipment、coal mining、machinery and equipment、automation and other fields.
